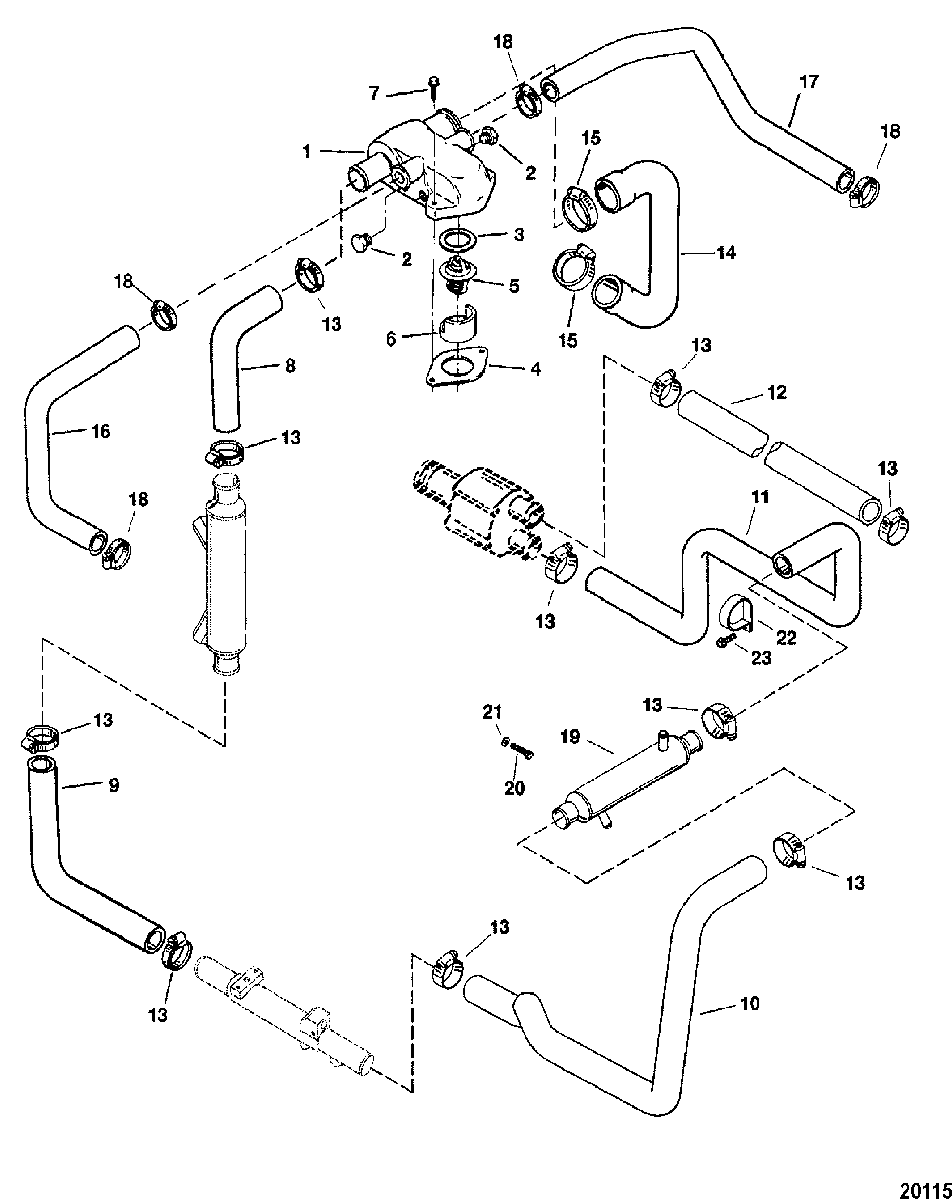

Thermostat Housing and Hoses для Mercruiser - 502 MAG. MPI BRAVO (GEN VI) GM 502 V-8 0L085433 THRU 0M024999

  • №
    Артикул
    Название
  • 1
    8M0061381 HOUSING ASSEMBLY, Thermostat
    HOUSING ASSEMBLY, Thermostat
  • 2
    22-32803 PLUG, Pipe (.375-18) Brass
    PLUG, Pipe (.375-18) Brass
  • 3
    27-806871 GASKET
    GASKET
  • 4
    27-530451 GASKET
    GASKET
  • 5
    8M0109441 THERMOSTAT, 71A°C (160A°F)
    THERMOSTAT, 71A°C (160A°F)
  • 6
    23-806922 SLEEVE
    SLEEVE
  • 7
    10-861429 SCREW (3/8-16 X 2 IN.)
    SCREW (3/8-16 X 2 IN.)
  • 8
    32-807407 HOSE
    HOSE
  • 9
    32-71613 HOSE
    (454)
    HOSE
    (454)
  • 9
    32-8074061 HOSE
    (502)
    HOSE
    (502)
  • 10
    32-808045 HOSE, Fuel Cooler to Transmission Oil Cooler
    HOSE, Fuel Cooler to Transmission Oil Cooler
  • 11
    32-808044 HOSE, Molded
    HOSE, Molded
  • 12
    32-8M0062666 HOSE, (96.00 Inches Bulk)
    HOSE, (96.00 Inches Bulk)
  • 13
    54-815504222 CLAMP, Worm Gear (1.98 DIameter)
    CLAMP, Worm Gear (1.98 DIameter)
  • 14
    32-897181 HOSE
    HOSE
  • 15
    54-815504232 CLAMP, Worm Gear (2.50 Diameter)
    CLAMP, Worm Gear (2.50 Diameter)
  • 16
    32-897491 HOSE
    HOSE
  • 17
    32-861318 HOSE
    HOSE
  • 18
    54-815504216 CLAMP, Worm Gear (1.56 Diameter)
    CLAMP, Worm Gear (1.56 Diameter)
  • 19
    8M0125855 COOLER
    COOLER
  • 20
    10-816585 SCREW, (.375-18 x .875)
    Metal Cooler
    SCREW, (.375-18 x .875)
    Metal Cooler
  • 20
    10-8M2016106 SCREW, (.312 x 1.25)
    Composite Cooler (Included with 861554T02)
    SCREW, (.312 x 1.25)
    Composite Cooler (Included with 861554T02)
  • 21
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 22
    54-47715 CLIP
    CLIP
  • 23
    10-35765A1 SCREW AND LOCKWASHER, (.312-18 x .625) (5/16-18 X 5/8 IN.)
    SCREW AND LOCKWASHER, (.312-18 x .625) (5/16-18 X 5/8 IN.)
  • NS
    19-8M0074364 COVER, Hose Clamp End
    COVER, Hose Clamp End
  • -
    27-811572A94 GASKET SET, Overhaul
    (454)
    GASKET SET, Overhaul
    (454)
  • -
    27-805396A92 GASKET SET, Overhaul
    (502)
    GASKET SET, Overhaul
    (502)
