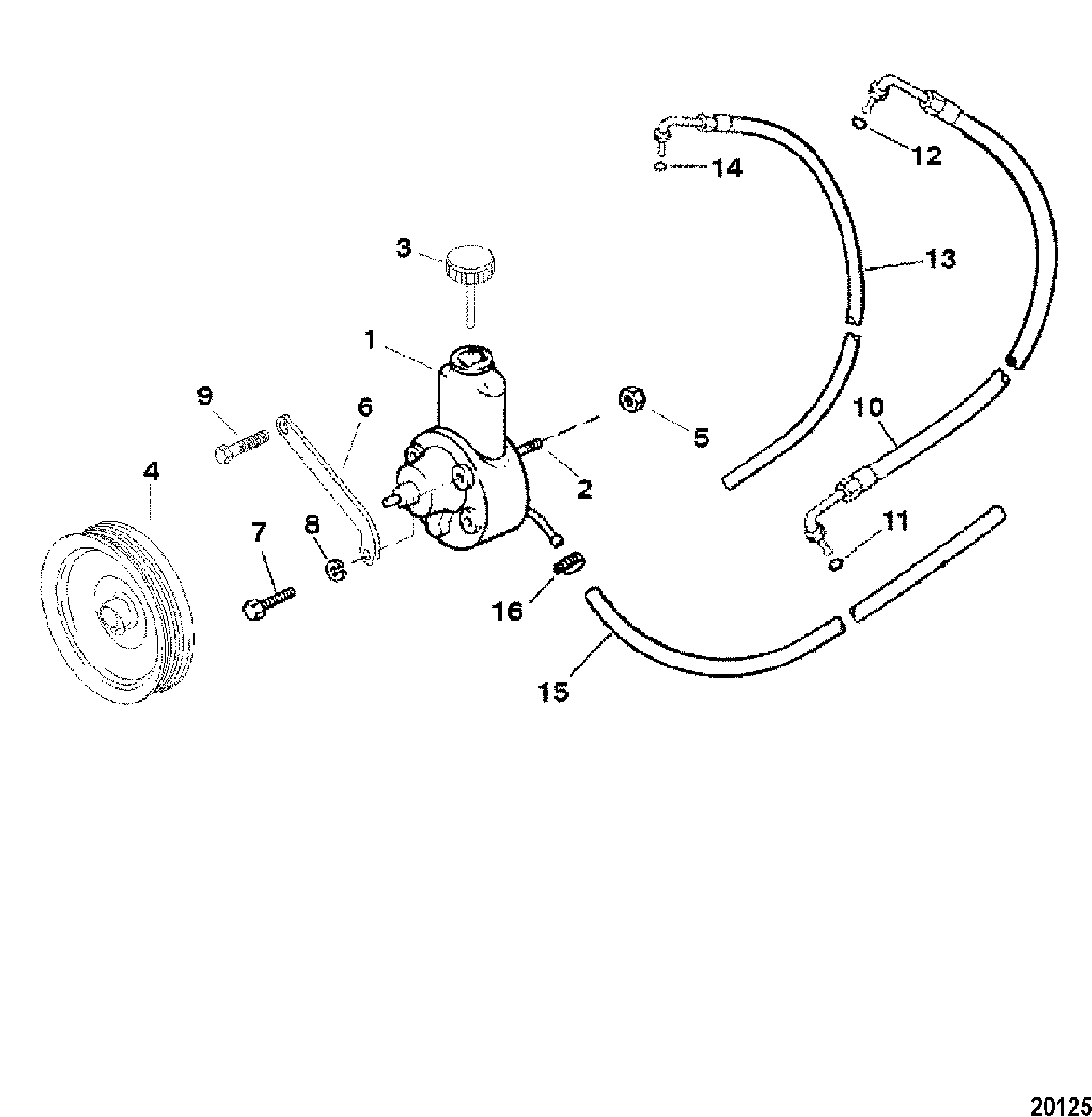

Power Steering Components для Mercruiser - 502 MAG. MPI BRAVO (GEN VI) GM 502 V-8 0L085433 THRU 0M024999

  • №
    Артикул
    Название
  • 1
    16792A39 PUMP ASSEMBLY
    PUMP ASSEMBLY
  • 2
    16-41877 STUD, (M10)
    STUD, (M10)
  • 3
    36-95805 CAP
    CAP
  • 4
    861578 PULLEY
    PULLEY
  • 5
    11-90517 NUT, (M10)
    NUT, (M10)
  • 6
    861048 BRACE
    BRACE
  • 7
    10-40001188 SCREW, (M10 x 20)
    SCREW, (M10 x 20)
  • 8
    13-400248 LOCKWASHER, (M10)
    LOCKWASHER, (M10)
  • 9
    10-98261 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 10
    32-86131720 HOSE (FITTINGS ON BOTH ENDS)
    HOSE (FITTINGS ON BOTH ENDS)
  • 11
    25-89879 O-RING, (.301 x .064)
    O-RING, (.301 x .064)
  • 12
    25-806232 O-RING, (.239 x .064)
    O-RING, (.239 x .064)
  • 13
    32-80622142 HOSE ASSEMBLY, (84.00 Inches Bulk), Return (FITTING ON ONE END)
    HOSE ASSEMBLY, (84.00 Inches Bulk), Return (FITTING ON ONE END)
  • 14
    25-89879 O-RING, (.301 x .064)
    O-RING, (.301 x .064)
  • 15
    32-8M0062341 HOSE, (53.00 Inches Bulk), Pump to Oil Cooler
    HOSE, (53.00 Inches Bulk), Pump to Oil Cooler
  • 16
    54-815504105 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • NS
    19-8M0074363 COVER, Hose Clamp End
    COVER, Hose Clamp End
