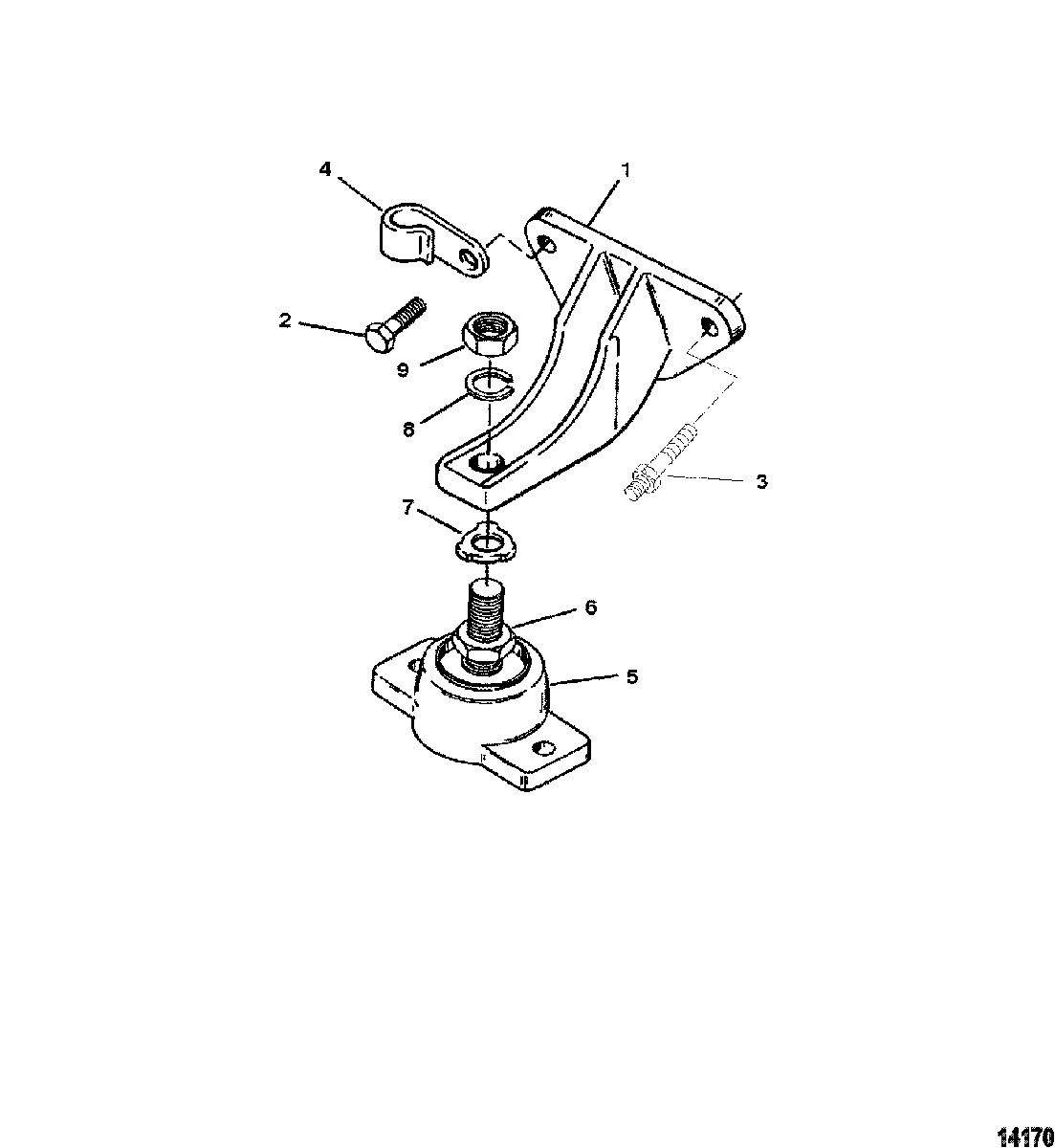

Engine Mounting для Mercruiser - 502 MAG. MPI BRAVO (GEN VI) GM 502 V-8 0L085433 THRU 0M024999

  • №
    Артикул
    Название
  • 1
    79550A1 BRACKET
    BRACKET
  • 2
    10-68101 SCREW, (.375-16 x 1.375)
    SCREW, (.375-16 x 1.375)
  • 3
    16-8M2004610 STUD, (.375-16 x 2.130)
    STUD, (.375-16 x 2.130)
  • 4
    54-78945 J CLAMP, Harness Support
    J CLAMP, Harness Support
  • 5
    814263A1 BASE ASSEMBLY
    BASE ASSEMBLY
  • 6
    11-816331 NUT, (.750-16)
    NUT, (.750-16)
  • 7
    14-12657 TAB WASHER
    TAB WASHER
  • 8
    13-68102 LOCKWASHER, (.750)
    LOCKWASHER, (.750)
  • 9
    11-859126 NUT, (.750-16)
    NUT, (.750-16)
