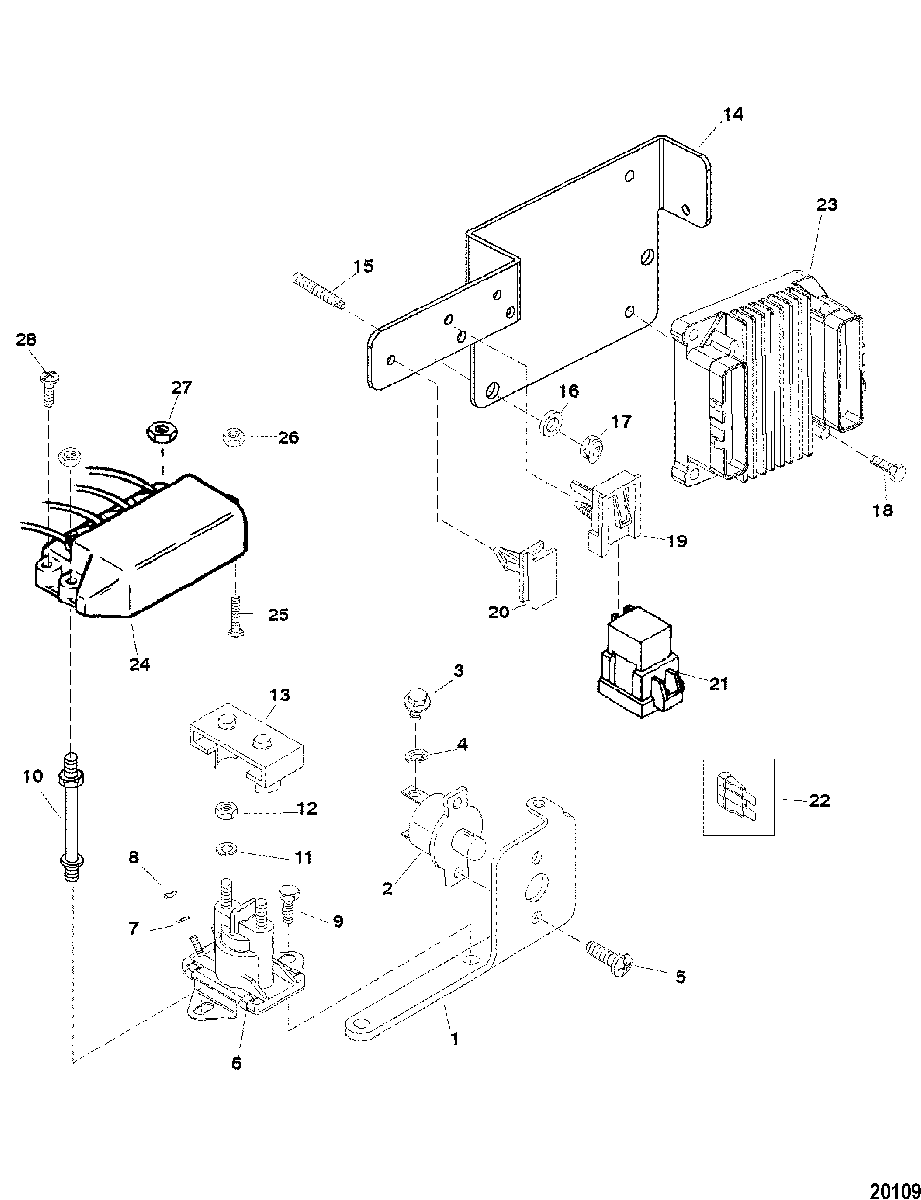

Electrical Components для Mercruiser - 502 MAG. MPI BRAVO (GEN VI) GM 502 V-8 0L085433 THRU 0M024999

  • №
    Артикул
    Название
  • 1
    899719T01 BRACKET, Electrical
    BRACKET, Electrical
  • 2
    88-11178A01 BREAKER, Circuit - 50 Ampere
    BREAKER, Circuit - 50 Ampere
  • 3
    10-68513 SCREW, (#10-32 x .375) Stainless Steel
    SCREW, (#10-32 x .375) Stainless Steel
  • 4
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 5
    10-57583T SCREW, (#8-32 x .375)
    SCREW, (#8-32 x .375)
  • 6
    89-96158T SOLENOID
    SOLENOID
  • 7
    13-26995 LOCKWASHER, (#8) Stainless Steel
    LOCKWASHER, (#8) Stainless Steel
  • 8
    11-26419 NUT, (#8-32) Brass
    NUT, (#8-32) Brass
  • 9
    10-805564 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • 10
    16-805459 STUD, Mercathode Mounting
    STUD, Mercathode Mounting
  • 11
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 12
    11-94330 NUT, (.250-20) Brass
    NUT, (.250-20) Brass
  • 13
    85-97861 INSULATOR
    INSULATOR
  • 14
    861714T BRACKET, ECU Mounting
    BRACKET, ECU Mounting
  • 15
    10-24323 SET SCREW, (.250-20 x 1.25)
    SET SCREW, (.250-20 x 1.25)
  • 16
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 17
    11-64015 NUT, (.250-20)
    NUT, (.250-20)
  • 18
    10-28636 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • 19
    86-865205 CLIP
    CLIP
  • 20
    54-804352 CLIP
    CLIP
  • 21
    86-865202T RELAY
    RELAY
  • 22
    88-83296910 FUSE, Red - 10 Ampere
    FUSE, Red - 10 Ampere
  • 22
    88-832969T15 FUSE, Mini - Blue - 15 Ampere
    FUSE, Mini - Blue - 15 Ampere
  • 23
    891896A01 ECM, Engine Control Module
    (454)
    ECM, Engine Control Module
    (454)
  • 23
    895104A01 ECM, Engine Control Module
    (502)
    ECM, Engine Control Module
    (502)
  • 24
    42600A09 CONTROLLER ASSEMBLY
    CONTROLLER ASSEMBLY
  • 25
    10-805565 SCREW, (#10-32 x .750)
    SCREW, (#10-32 x .750)
  • 26
    11-46438 NUT, (#10-32)
    NUT, (#10-32)
  • 27
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 28
    10-62568 SCREW, (#10-16 x .375)
    SCREW, (#10-16 x .375)
