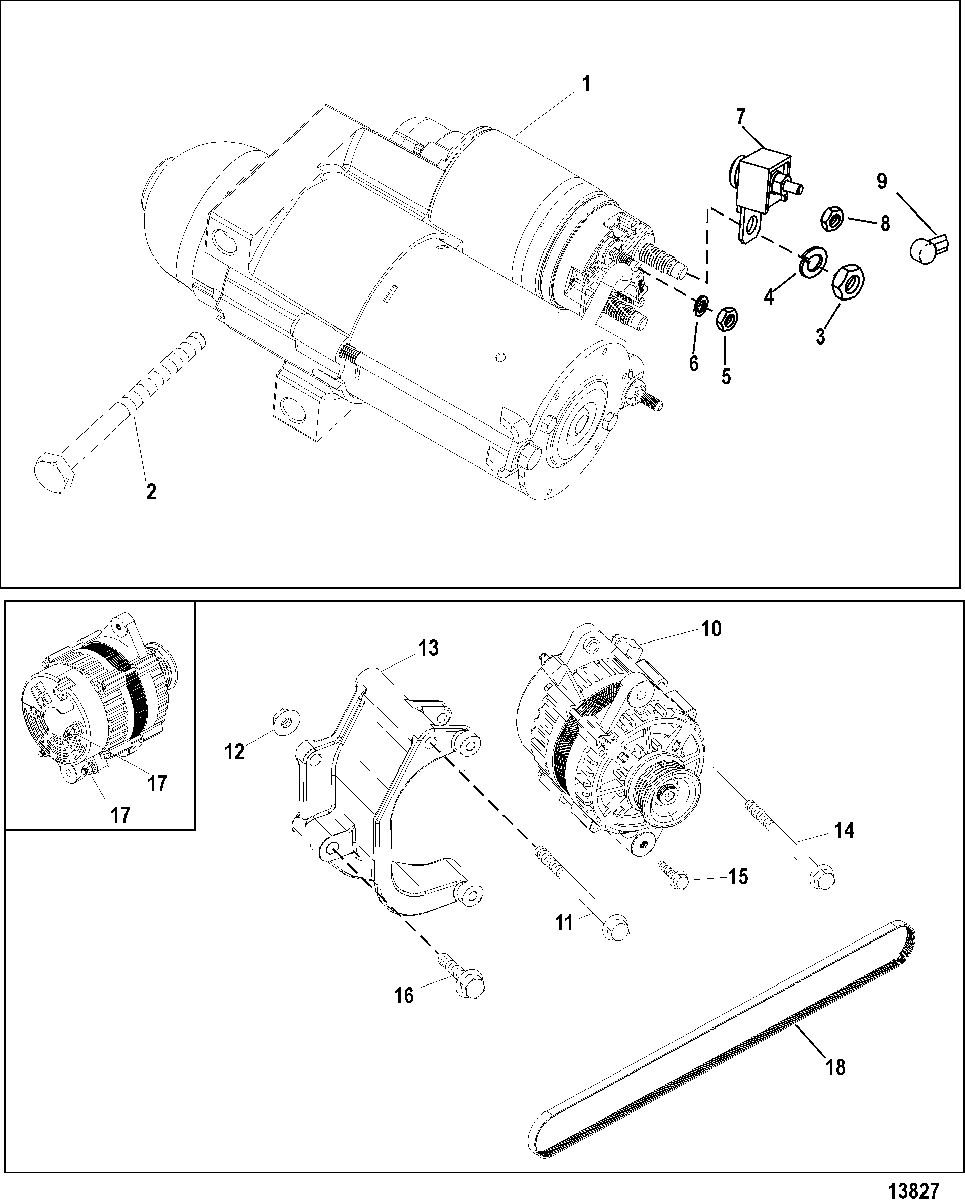

Starter and Alternator для Mercruiser - 496 MAG (H.O. Model) 1A350679 & Up

  • №
    Артикул
    Название
  • 1
    50-863007A1 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 2
    10-861788 SCREW, (M10 x 1.5), Special
    SCREW, (M10 x 1.5), Special
  • 3
    11-806949 NUT, (M8-1.5)
    NUT, (M8-1.5)
  • 4
    13-400247 LOCKWASHER, (M8)
    LOCKWASHER, (M8)
  • 5
    11-400211 NUT, (M5) Stainless Steel
    NUT, (M5) Stainless Steel
  • 6
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 7
    88-79023A91 FUSE ASSEMBLY, 90 Ampere
    FUSE ASSEMBLY, 90 Ampere
  • 8
    11-8267119 NUT, (.250-28)
    NUT, (.250-28)
  • 9
    85-79695T BOOT, Insulator - Black
    BOOT, Insulator - Black
  • 10
    863077T ALTERNATOR ASSEMBLY, Black
    ALTERNATOR ASSEMBLY, Black
  • 11
    10-40108120 SCREW, (M10 x 120) Hex Flange - Stainless Steel
    SCREW, (M10 x 120) Hex Flange - Stainless Steel
  • 12
    11-401368 NUT, (M8) Stainless Steel
    NUT, (M8) Stainless Steel
  • 13
    865594T01 BRACKET, Alternator
    BRACKET, Alternator
  • 14
    10-824459110 SCREW, (M8 x 110) Stainless Steel
    SCREW, (M8 x 110) Stainless Steel
  • 14
    10-824459120 SCREW, (M8 x 120) Stainless Steel
    Axius
    SCREW, (M8 x 120) Stainless Steel
    Axius
  • 15
    10-8M0103817 SCREW, (M8 x 60)
    SCREW, (M8 x 60)
  • 16
    10-4010835 SCREW, (M10 x 35) Hex Flange - Stainless Steel
    SCREW, (M10 x 35) Hex Flange - Stainless Steel
  • 17
    11-400212 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 18
    57-865635Q01 BELT, Serpentine
    BELT, Serpentine
  • 18
    57-879288Q21 BELT, Serpentine
    Axius
    BELT, Serpentine
    Axius
  • -
    879172A34 PULLEY KIT, High Current, Axius
    PULLEY KIT, High Current, Axius
