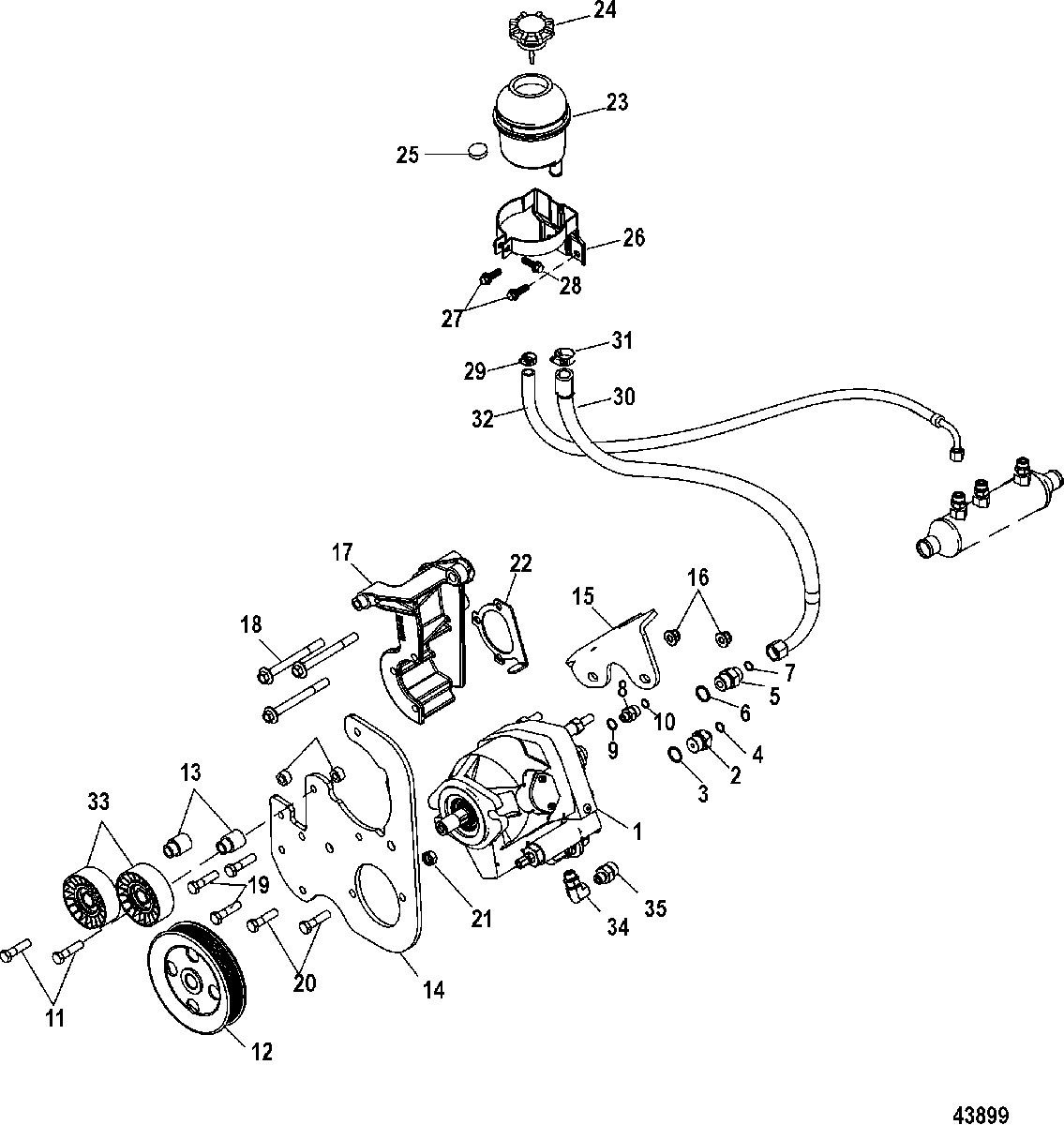

AXIUS Steering, Hydraulic Pump and Reservoir,Gen I для Mercruiser - 496 MAG (H.O. Model) 1A350679 & Up

  • №
    Артикул
    Название
  • 1
    879194T51 PUMP
    PUMP
  • 2
    22-8M2007281 FITTING
    FITTING
  • 3
    NSS NOT SOLD SEPARATE, O-RING
    NOT SOLD SEPARATE, O-RING
  • 4
    25-8M2004603 O-RING
    O-RING
  • 5
    22-8M2008373 FITTING, (1.25 in.)
    FITTING, (1.25 in.)
  • 6
    NSS NOT SOLD SEPARATE, O-RING
    NOT SOLD SEPARATE, O-RING
  • 7
    25-8M2008541 O-RING
    O-RING
  • 8
    22-8M2007090 FITTING, (-6) ORF TO ( -8) ORB, Straight
    FITTING, (-6) ORF TO ( -8) ORB, Straight
  • 9
    25-8M0047401 O-RING, (.468 X .078)
    O-RING, (.468 X .078)
  • 10
    NSS NOT SOLD SEPARATE, O-RING
    NOT SOLD SEPARATE, O-RING
  • 11
    10-4010860 SCREW, (M10 x 60) Hex Flange - Stainless Steel
    SCREW, (M10 x 60) Hex Flange - Stainless Steel
  • 12
    8M8020627 PULLEY, Power Steering
    PULLEY, Power Steering
  • 13
    8M8020541 BUSHING
    BUSHING
  • 14
    8M2013950 BRACKET, Power Steering Pump
    BRACKET, Power Steering Pump
  • 15
    8M2007274 BRACKET
    BRACKET
  • 16
    11-860069 NUT, (.375-16)
    NUT, (.375-16)
  • 17
    8M0131223 BRACKET
    BRACKET
  • 18
    10-8M0012503 SCREW, (M10 x 1.5)
    SCREW, (M10 x 1.5)
  • 19
    10-4010720 SCREW, (M8 x 20)
    SCREW, (M8 x 20)
  • 20
    10-34354 SCREW, (.375-16 x 1.50)
    SCREW, (.375-16 x 1.50)
  • 21
    11-860069 NUT, (.375-16)
    NUT, (.375-16)
  • 22
    8M2009215 BRACKET
    BRACKET
  • 23
    865264T RESERVOIR ASSEMBLY, Oil - Power-Assisted Steering
    RESERVOIR ASSEMBLY, Oil - Power-Assisted Steering
  • 24
    8M0121097 CAP, Oil Reservoir - Brown
    CAP, Oil Reservoir - Brown
  • 25
    87919455T MAGNET, Power Steering Reservoir
    MAGNET, Power Steering Reservoir
  • 26
    865262A02 BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 27
    10-4010716 SCREW, (M8 x 16)
    SCREW, (M8 x 16)
  • 28
    10-4000117 SCREW, (M5 x 20)
    SCREW, (M5 x 20)
  • 29
    54-815504105 CLAMP, Worm Gear (11-18 mm)
    CLAMP, Worm Gear (11-18 mm)
  • 30
    32-8M2012143 HOSE, Inlet to Reservoir
    HOSE, Inlet to Reservoir
  • 31
    54-815504210 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 32
    32-8M2006304 HOSE
    HOSE
  • 33
    8M6500024 PULLEY
    PULLEY
  • 34
    22-8M2009850 FITTING (-6) Orb to 1/4 NPT
    FITTING (-6) Orb to 1/4 NPT
  • 35
    22-8M2009851 COUPLING, Hyraulic Quick
    COUPLING, Hyraulic Quick
  • -
    879172A34 PULLEY KIT, High Current, Axius
    PULLEY KIT, High Current, Axius
