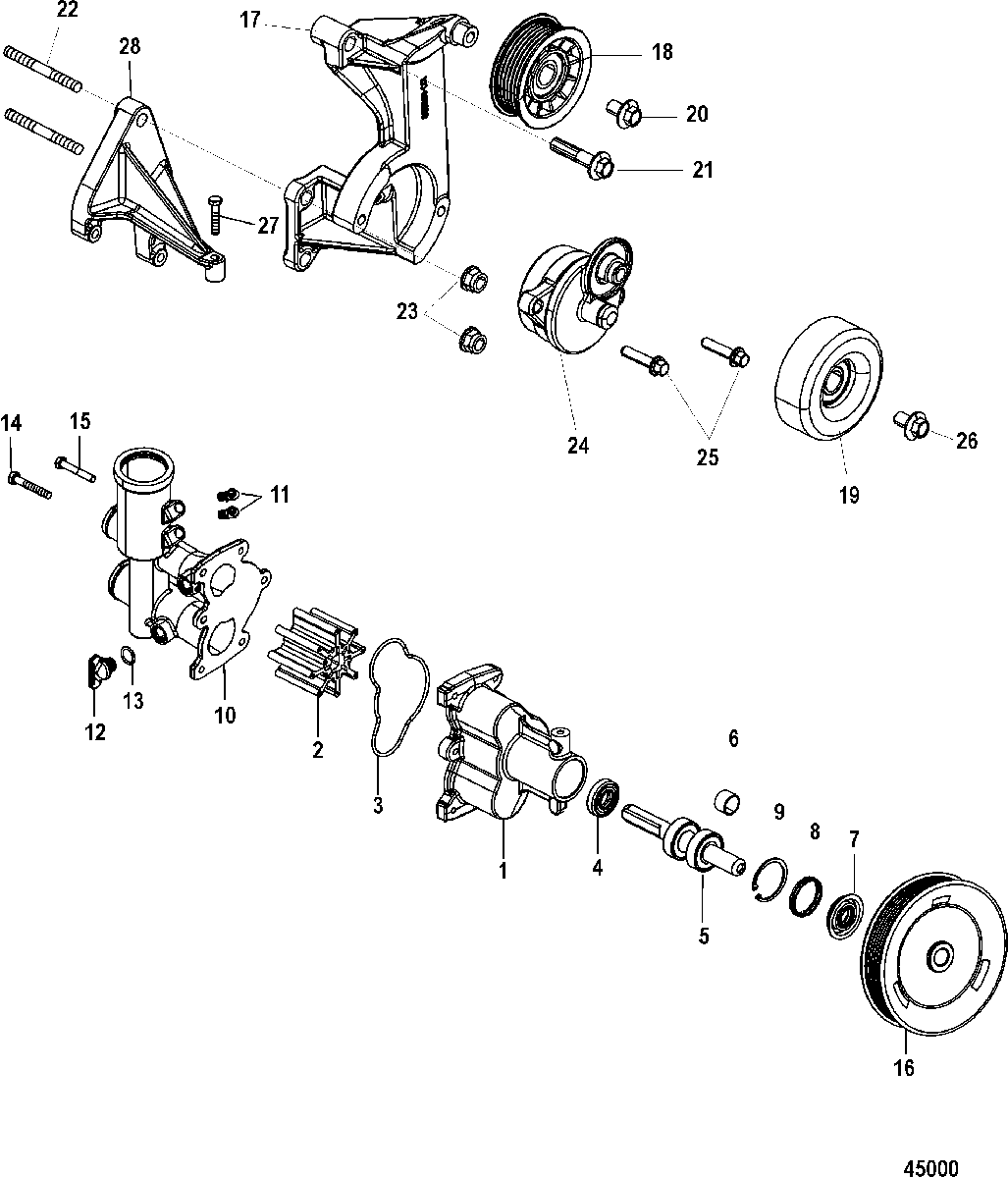

Seawater Pump для Mercruiser - 496 MAG (H.O. Model) 1A350679 & Up

  • №
    Артикул
    Название
  • -
    46-8M0137218 PUMP KIT, Sea Water
    PUMP KIT, Sea Water
  • 1
    8M0118062 HOUSING ASSEMBLY, Impeller
    HOUSING ASSEMBLY, Impeller
  • 2
    47-8M0104229 IMPELLER
    IMPELLER
  • 3
    8M2021987 O-RING, Formed
    O-RING, Formed
  • -
    8M0050018 DRIVESHAFT ASSEMBLY KIT
    DRIVESHAFT ASSEMBLY KIT
  • 4
    26-8M2001645 SEAL, Oil
    SEAL, Oil
  • 5
    8M0050018 DRIVESHAFT ASSEMBLY, Impeller
    DRIVESHAFT ASSEMBLY, Impeller
  • 6
    NSS NOT SOLD SEPARATE, SPACER
    SN# 1A351543 & Up
    NOT SOLD SEPARATE, SPACER
    SN# 1A351543 & Up
  • 7
    26-862040 SEAL, Lip
    SEAL, Lip
  • 8
    862039 TOLERANCE RING
    SN# 1A351542 & Below
    TOLERANCE RING
    SN# 1A351542 & Below
  • 9
    NSS NOT SOLD SEPARATE, SNAP RING
    SN# 1A351543 & Up
    NOT SOLD SEPARATE, SNAP RING
    SN# 1A351543 & Up
  • 10
    863674A04 COVER KIT, Impeller Housing
    COVER KIT, Impeller Housing
  • 11
    22-8M0082321 FITTING, Gray (90 Degree)
    FITTING, Gray (90 Degree)
  • 11
    22-8M0082322 FITTING, Orange (90 Degree)
    FITTING, Orange (90 Degree)
  • 12
    22-8M0119211 PLUG ASSEMBLY, (.500-13) Blue
    PLUG ASSEMBLY, (.500-13) Blue
  • 13
    25-26802 O-RING, (.424 x .103)
    O-RING, (.424 x .103)
  • 14
    10-4000328 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 15
    10-8M2012296 SCREW, (M6 x 40)
    SCREW, (M6 x 40)
  • 16
    862351T PULLEY
    PULLEY
  • 16
    8M0141645 PULLEY
    Axius
    PULLEY
    Axius
  • 17
    865596T01 BRACKET, Idler Pulley
    BRACKET, Idler Pulley
  • 18
    865444T PULLEY, (3.50 Inch Diameter), Idler, Grooved
    PULLEY, (3.50 Inch Diameter), Idler, Grooved
  • 19
    865777 PULLEY, Idler, Non-Grooved
    PULLEY, Idler, Non-Grooved
  • 20
    10-4010816 SCREW, (M10 x 16) Hex Flange - Stainless Steel
    SCREW, (M10 x 16) Hex Flange - Stainless Steel
  • 21
    10-4010845 SCREW, (M10 x 45) Hex Flange - Stainless Steel
    SCREW, (M10 x 45) Hex Flange - Stainless Steel
  • 22
    16-854309 STUD, (M10 x 76)
    STUD, (M10 x 76)
  • 23
    11-826292 NUT, (M10) Brass/Nickel Plated
    NUT, (M10) Brass/Nickel Plated
  • 23
    11-8M2000545 NUT, (M10) Stainless Steel
    (SEACORE)
    NUT, (M10) Stainless Steel
    (SEACORE)
  • 24
    865597T TENSIONER, Belt
    TENSIONER, Belt
  • 25
    10-8M0103813 SCREW, (M8 x 30)
    SCREW, (M8 x 30)
  • 26
    10-4010820 SCREW, (M10 x 20) Hex Flange - Stainless Steel
    SCREW, (M10 x 20) Hex Flange - Stainless Steel
  • 27
    10-4000331 SCREW, (M6 x 30)
    SCREW, (M6 x 30)
  • 28
    863859T BRACKET, Sea Water Pump
    BRACKET, Sea Water Pump
  • -
    879172A34 PULLEY KIT, High Current, Axius
    PULLEY KIT, High Current, Axius
