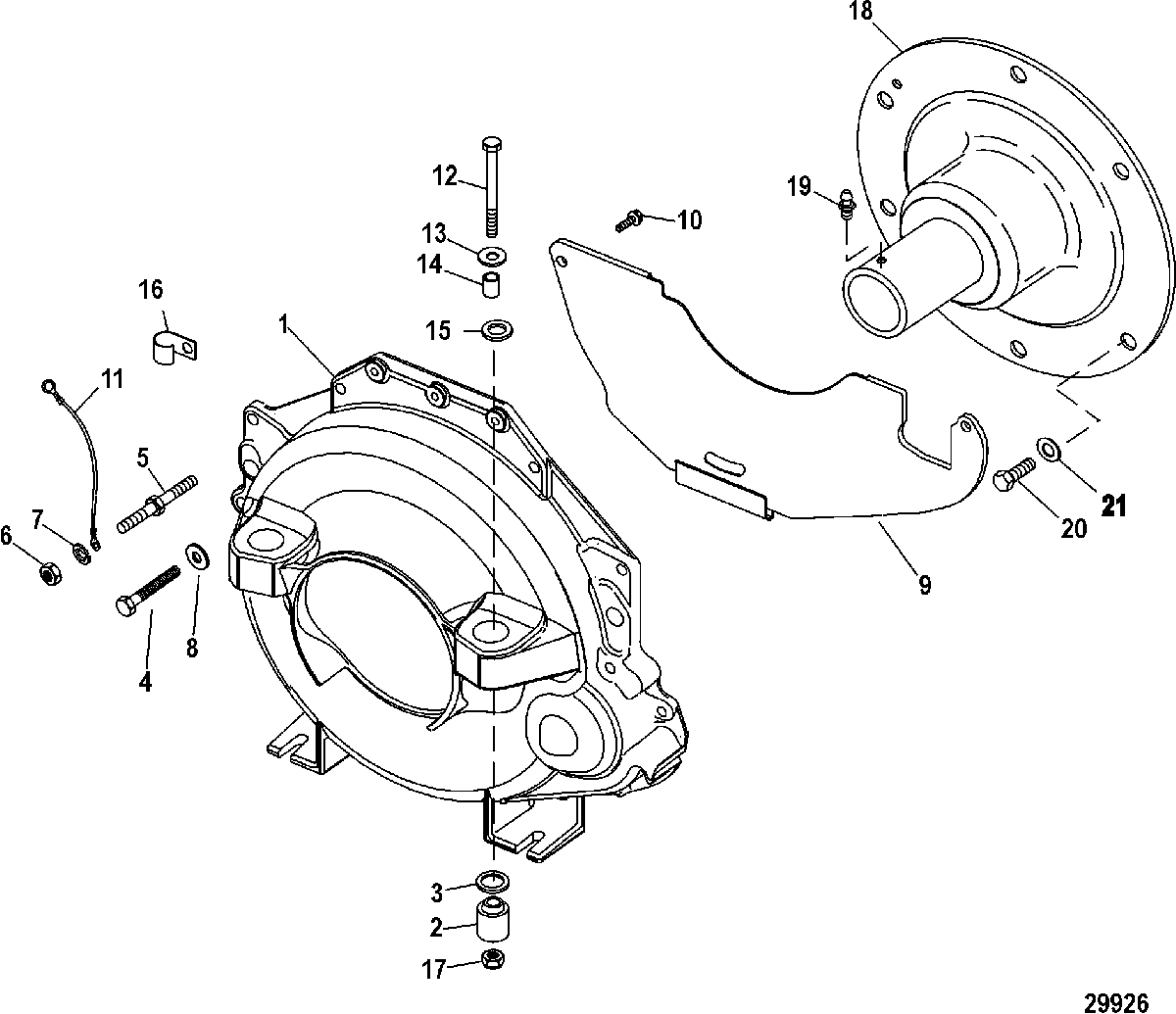

Flywheel Housing для Mercruiser - 496 MAG (H.O. Model) 1A350679 & Up

  • №
    Артикул
    Название
  • 1
    865657A04 HOUSING ASSEMBLY, Flywheel
    HOUSING ASSEMBLY, Flywheel
  • 2
    865330A02 MOUNT KIT, Rubber
    MOUNT KIT, Rubber
  • 3
    23-99322 SPACER
    SPACER
  • 4
    10-40001197 SCREW, (M10 x 35)
    SCREW, (M10 x 35)
  • 4
    10-40001203 SCREW, (M10 x 45)
    SCREW, (M10 x 45)
  • 4
    10-1993325 SCREW, (M10 x 25 MM)
    (SEACORE)
    SCREW, (M10 x 25 MM)
    (SEACORE)
  • 5
    16-861577 STUD, Double Ended Metric (M10), Grounding
    STUD, Double Ended Metric (M10), Grounding
  • 5
    16-863376 STUD, Stainless (M10 x M10)
    (SEACORE)
    STUD, Stainless (M10 x M10)
    (SEACORE)
  • 6
    11-40125100 NUT, (M10)
    NUT, (M10)
  • 6
    11-4013710 NUT, (M10)
    (SEACORE)
    NUT, (M10)
    (SEACORE)
  • 7
    13-400248 LOCKWASHER, (M10)
    LOCKWASHER, (M10)
  • 8
    12-34567 WASHER
    WASHER
  • 9
    807260A2 COVER KIT, Flywheel
    COVER KIT, Flywheel
  • NS
    11-807296 NUT, (.250-20)
    NUT, (.250-20)
  • 10
    10-76596 SCREW, (.250-20 x 1.250)
    SCREW, (.250-20 x 1.250)
  • 10
    10-86885 SCREW, (.250-20 x 1.500) Stainless Steel
    (SEACORE)
    SCREW, (.250-20 x 1.500) Stainless Steel
    (SEACORE)
  • 11
    84-62826T06 CABLE ASSEMBLY, Ground (13.00 Inches) Black, Grounding
    CABLE ASSEMBLY, Ground (13.00 Inches) Black, Grounding
  • 12
    10-97934 SCREW, (.500-20 x 5.370) Special
    SCREW, (.500-20 x 5.370) Special
  • 13
    12-35777 WASHER, (.5156 x 1.375 x .125) Aluminum
    WASHER, (.5156 x 1.375 x .125) Aluminum
  • 14
    23-99299 SPACER, (.520 x .870 x .630)
    SPACER, (.520 x .870 x .630)
  • 15
    12-54012 WASHER, (.530 x .870 x .105) Stainless Steel
    WASHER, (.530 x .870 x .105) Stainless Steel
  • 16
    54-78945 J CLAMP, Harness Support
    J CLAMP, Harness Support
  • 17
    11-863332 NUT, (.500-20) Aluminum
    NUT, (.500-20) Aluminum
  • 18
    8M0098796 COUPLER ASSEMBLY, Engine - Long Steel Hub
    COUPLER ASSEMBLY, Engine - Long Steel Hub
  • 19
    22-74036 FITTING, Grease
    FITTING, Grease
  • 20
    10-40001195 SCREW, (M10 x 30)
    SCREW, (M10 x 30)
  • 21
    12-25909 WASHER, (.406 x .812 x .065)
    WASHER, (.406 x .812 x .065)
