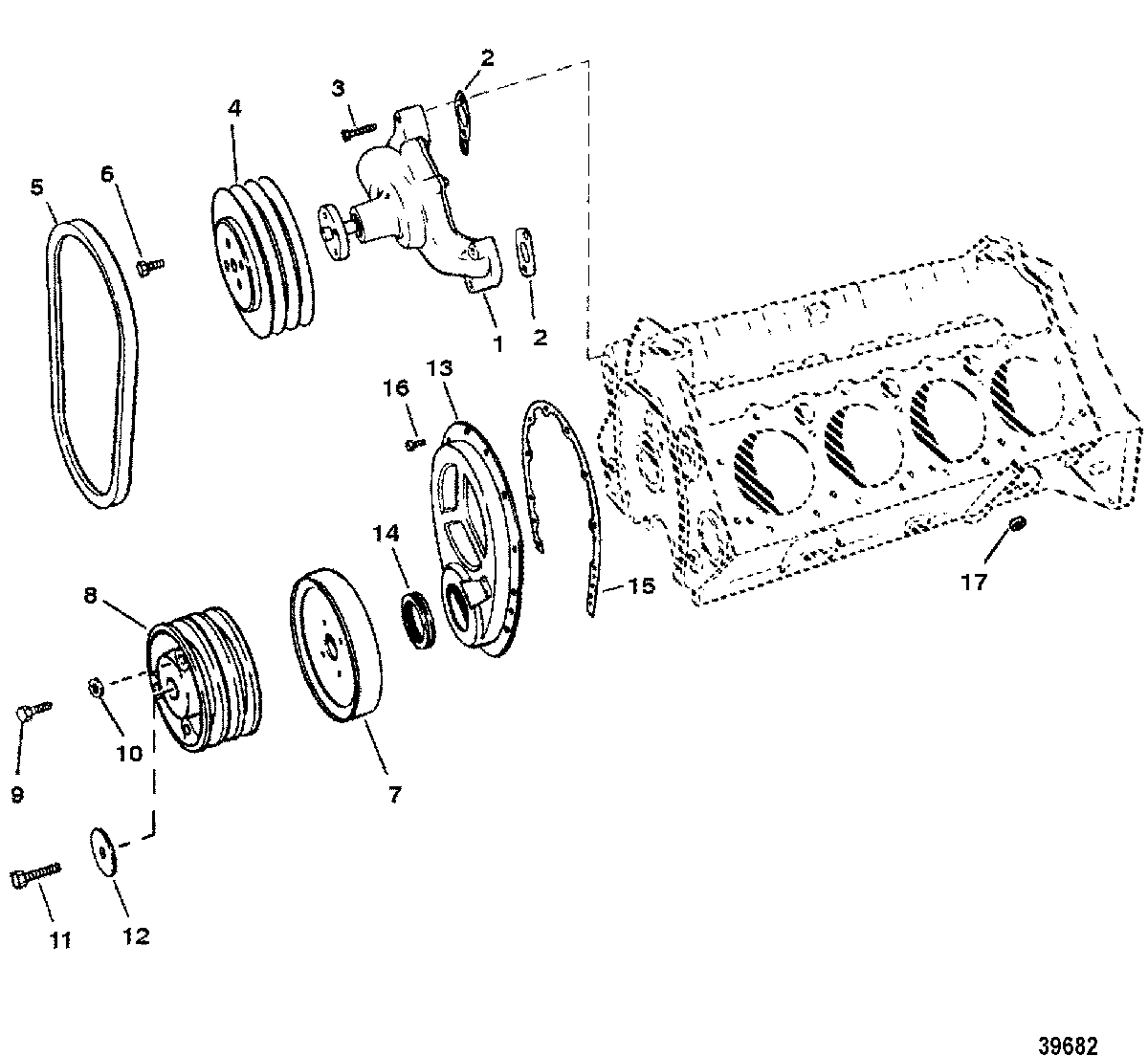

WATER PUMP AND FRONT COVER для Mercruiser - 454 EFI (GEN. V) GM 454 V-8 1994-1996 0F115700 THRU 0F802349

  • №
    Артикул
    Название
  • 1
    46-8M0113735 PUMP ASSEMBLY, Water
    PUMP ASSEMBLY, Water
  • 2
    27-49110 GASKET, Circulating Water Pump Mount
    GASKET, Circulating Water Pump Mount
  • 3
    10-805611 SCREW, (.375-16 x 1.750)
    SCREW, (.375-16 x 1.750)
  • 4
    19692T01 PULLEY, (7 In. Diameter)
    PULLEY, (7 In. Diameter)
  • 5
    57-48122Q BELT, (48 Inches)
    BELT, (48 Inches)
  • 6
    10-47277 SCREW, (.312-24 x .750)
    SCREW, (.312-24 x .750)
  • 7
    845625T2 DAMPER
    DAMPER
  • 8
    90081T PULLEY
    PULLEY
  • 9
    10-358701 SCREW, (.375-16 x 2.00)
    SCREW, (.375-16 x 2.00)
  • 10
    12-34714 WASHER
    WASHER
  • 11
    10-845627 SCREW, (.500-20 x 2.500)
    SCREW, (.500-20 x 2.500)
  • 12
    12-49103 WASHER
    WASHER
  • 13
    811570 COVER ASSEMBLY
    COVER ASSEMBLY
  • 14
    26-8219471 SEAL
    SEAL
  • 15
    27-811572 GASKET
    GASKET
  • 16
    10-8M0040582 SCREW
    SCREW
  • 17
    34543 VALVE, Oil Bypass
    VALVE, Oil Bypass
  • -
    27-811572A94 GASKET SET, Overhaul
    (454 MAGNUM)
    GASKET SET, Overhaul
    (454 MAGNUM)
  • -
    27-805396A92 GASKET SET, Overhaul
    (502 MAGNUM)
    GASKET SET, Overhaul
    (502 MAGNUM)
