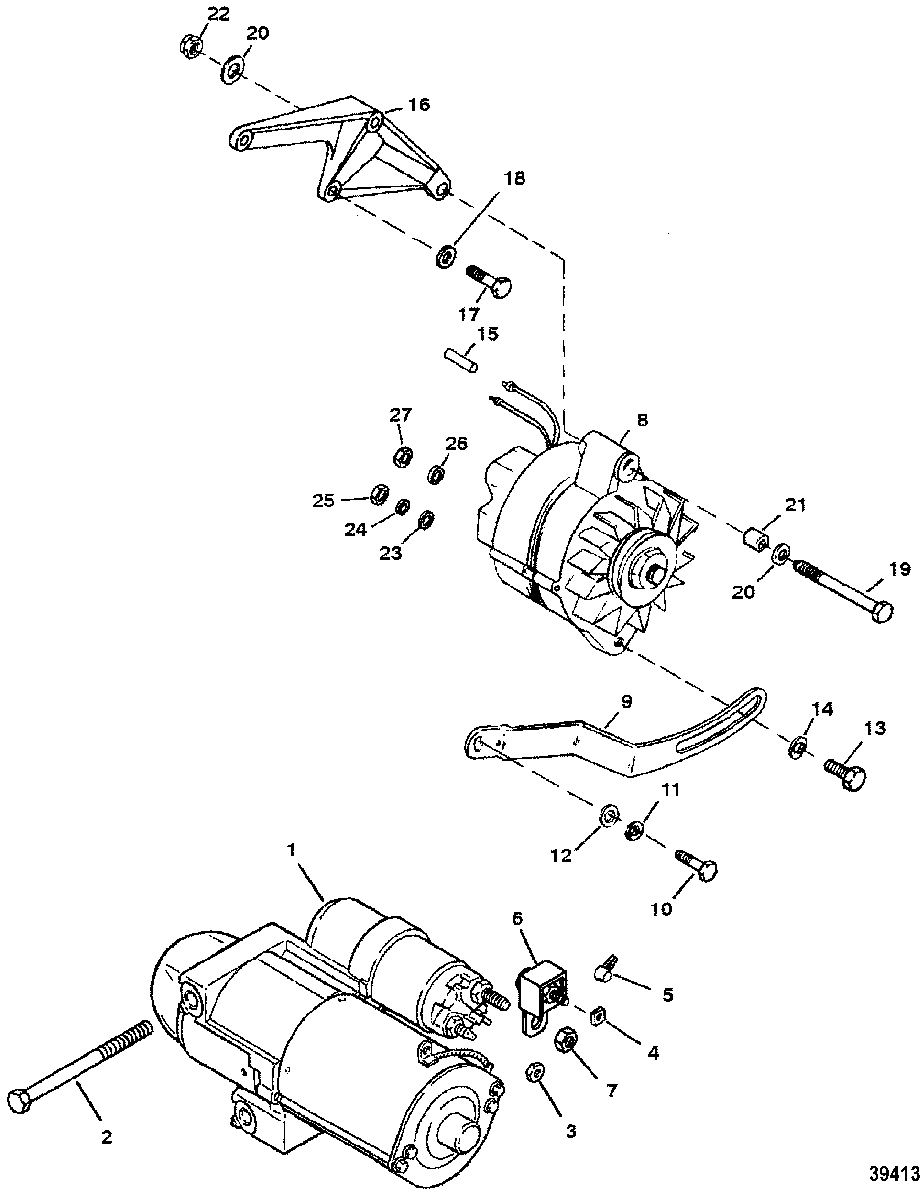

STARTER MOTOR AND ALTERNATOR для Mercruiser - 454 EFI (GEN. V) GM 454 V-8 1994-1996 0F115700 THRU 0F802349

  • №
    Артикул
    Название
  • 1
    50-863007A1 STARTER MOTOR ASSEMBLY
    3-1/2 Inch Diameter End Cap
    STARTER MOTOR ASSEMBLY
    3-1/2 Inch Diameter End Cap
  • 1
    50-863007A1 STARTER MOTOR ASSEMBLY
    2-7/8 Inch Diameter End Cap
    STARTER MOTOR ASSEMBLY
    2-7/8 Inch Diameter End Cap
  • 2
    10-8053432 SCREW, (.375-16 x 4.33)
    3-1/2 Inch Diameter End Cap
    SCREW, (.375-16 x 4.33)
    3-1/2 Inch Diameter End Cap
  • 2
    10-8053432 SCREW, (.375-16 x 4.33)
    2-7/8 Inch Diameter End Cap
    SCREW, (.375-16 x 4.33)
    2-7/8 Inch Diameter End Cap
  • 3
    11-15874 NUT, (M10)
    3-1/2 Inch Diameter End Cap
    NUT, (M10)
    3-1/2 Inch Diameter End Cap
  • 3
    11-806949 NUT, (M8-1.5)
    2-7/8 Inch Diameter End Cap
    NUT, (M8-1.5)
    2-7/8 Inch Diameter End Cap
  • 4
    11-400211 NUT, (M5) Stainless Steel
    3-1/2 Inch Diameter End Cap
    NUT, (M5) Stainless Steel
    3-1/2 Inch Diameter End Cap
  • 4
    11-400211 NUT, (M5) Stainless Steel
    2-7/8 Inch Diameter End Cap
    NUT, (M5) Stainless Steel
    2-7/8 Inch Diameter End Cap
  • 5
    85-79695T BOOT, Insulator - Black
    BOOT, Insulator - Black
  • 6
    88-79023A91 FUSE ASSEMBLY, 90 Ampere
    FUSE ASSEMBLY, 90 Ampere
  • 7
    11-21825 NUT, (.250-28)
    NUT, (.250-28)
  • 8
    805884T ALTERNATOR
    (PRESTOLITE)
    ALTERNATOR
    (PRESTOLITE)
  • 8
    805884T ALTERNATOR
    (MANDO)
    ALTERNATOR
    (MANDO)
  • 9
    85013T BRACE
    BRACE
  • 10
    10-47462 SCREW, (.437-14 x 1.250)
    SCREW, (.437-14 x 1.250)
  • 11
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 12
    12-31263 WASHER
    WASHER
  • 13
    10-29198 SCREW AND LOCKWASHER, (.312-18 x .875)
    SCREW AND LOCKWASHER, (.312-18 x .875)
  • 14
    12-26168 WASHER
    WASHER
  • 15
    32-7381567 TUBING, (42.00 Inches Bulk)
    TUBING, (42.00 Inches Bulk)
  • 16
    806394A1 BRACKET
    BRACKET
  • 17
    10-37612 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 17
    10-48424 SCREW, (.375-16 x 1.620)
    SCREW, (.375-16 x 1.620)
  • 18
    12-20553 WASHER, (.406 x .734 x .063)
    WASHER, (.406 x .734 x .063)
  • 17
    10-47462 SCREW, (.437-14 x 1.250)
    SCREW, (.437-14 x 1.250)
  • 17
    10-91903 SCREW, (.437-14 x 1.750)
    SCREW, (.437-14 x 1.750)
  • 18
    12-22248 WASHER, (.453 x .875 x .060)
    WASHER, (.453 x .875 x .060)
  • 19
    10-48308 SCREW, (.375-24 x 3.750)
    SCREW, (.375-24 x 3.750)
  • 20
    12-20553 WASHER, (.406 x .734 x .063)
    WASHER, (.406 x .734 x .063)
  • 21
    23-33186 BUSHING
    BUSHING
  • 22
    11-23161 NUT, (.375-24)
    NUT, (.375-24)
  • 23
    12-96457 WASHER, Phenolic (.27 x .81 x .062)
    WASHER, Phenolic (.27 x .81 x .062)
  • 24
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 25
    11-79989 NUT, (#10-24) Stainless Steel
    NUT, (#10-24) Stainless Steel
  • 26
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 27
    11-94330 NUT, (.250-20) Brass
    NUT, (.250-20) Brass
