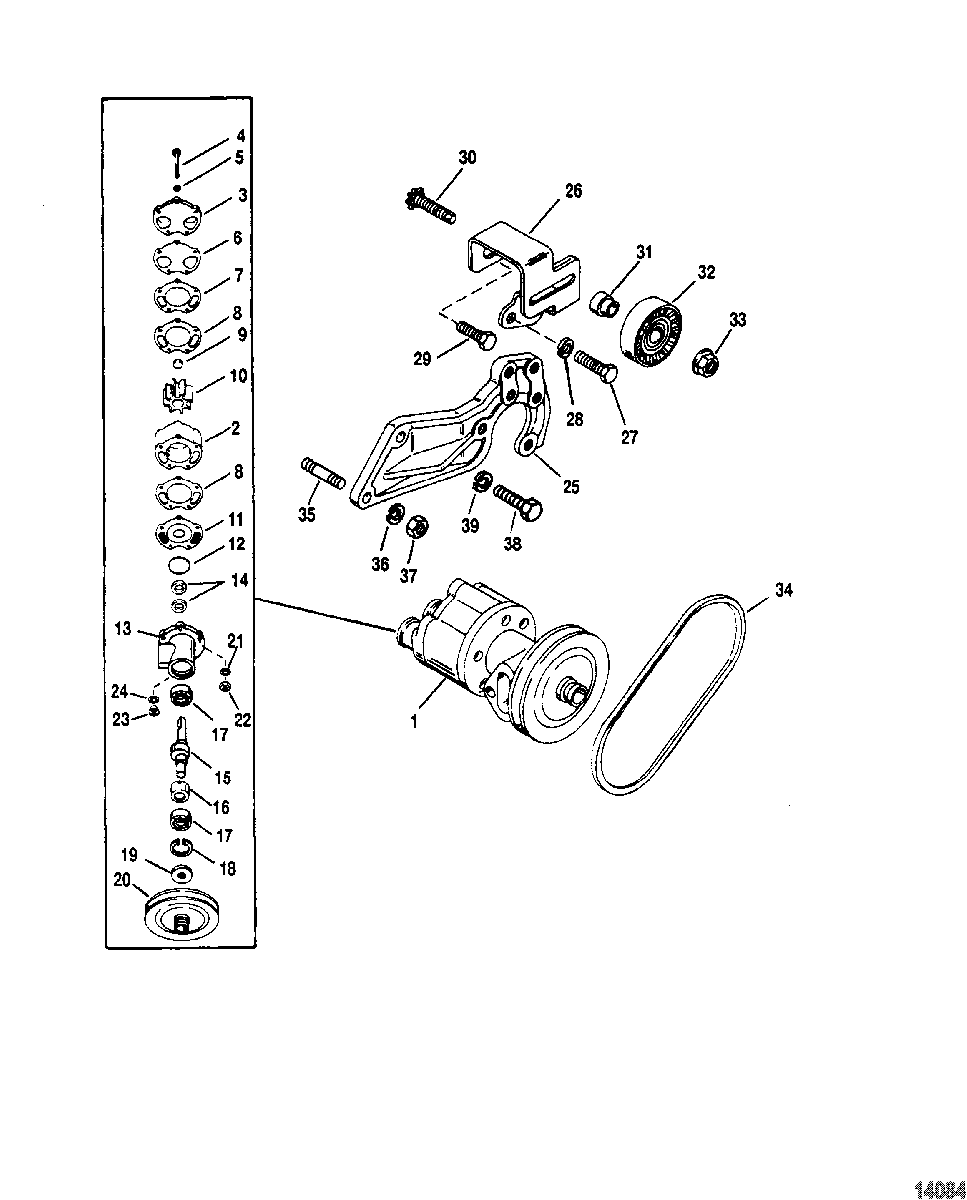

SEA WATER PUMP для Mercruiser - 454 EFI (GEN. V) GM 454 V-8 1994-1996 0F115700 THRU 0F802349

  • №
    Артикул
    Название
  • 1
    46-807151A8 PUMP ASSEMBLY, Sea Water - Complete
    PUMP ASSEMBLY, Sea Water - Complete
  • 2
    46-72774A40 BODY ASSEMBLY, Sea Water - Complete
    BODY ASSEMBLY, Sea Water - Complete
  • 3
    87631A4 COVER KIT
    COVER KIT
  • 4
    10-99347 SCREW, (.312-18 x 3.75)
    SCREW, (.312-18 x 3.75)
  • 5
    12-20084 WASHER, (.328 x .562 x .062)
    WASHER, (.328 x .562 x .062)
  • 6
    27-8052151 GASKET
    GASKET
  • 7
    94916 WEAR PLATE
    WEAR PLATE
  • 8
    27-94914 GASKET
    GASKET
  • 9
    19-59504 PLUG
    PLUG
  • 10
    47-59362T1 IMPELLER
    IMPELLER
  • 11
    94576 WEAR PLATE
    WEAR PLATE
  • 12
    25-94288 QUAD RING
    QUAD RING
  • 13
    818367A1 HOUSING ASSEMBLY
    HOUSING ASSEMBLY
  • 14
    26-90562 SEAL, (1.254 x .312)
    SEAL, (1.254 x .312)
  • 15
    818366A1 SHAFT KIT
    SHAFT KIT
  • 16
    818745A1 RING KIT
    RING KIT
  • 17
    30-72961 BEARING, Ball
    BEARING, Ball
  • 18
    53-23720 RING, Retaining
    RING, Retaining
  • 19
    26-806930 SEAL
    SEAL
  • 20
    818365T PULLEY
    PULLEY
  • 21
    13-39107 LOCKWASHER, (.312-24)
    LOCKWASHER, (.312-24)
  • 22
    11-21908 NUT, (.312-18) Cad Plated
    NUT, (.312-18) Cad Plated
  • 23
    10-79953Q04 SCREW KIT, (.375-16 x .250)
    SCREW KIT, (.375-16 x .250)
  • 24
    12-191833 WASHER, Fiber
    WASHER, Fiber
  • 25
    818368T1 BRACKET
    BRACKET
  • 26
    818379T BRACKET
    BRACKET
  • 27
    10-76926 SCREW, (.375-16 x .875)
    SCREW, (.375-16 x .875)
  • 28
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 29
    10-17965 SCREW, (.437-14 x .70)
    SCREW, (.437-14 x .70)
  • 30
    43-8M0113182 PINION STUD, (.437-20) Stainless Steel
    PINION STUD, (.437-20) Stainless Steel
  • 31
    865193 BUSHING
    BUSHING
  • 32
    8M6500024 PULLEY
    PULLEY
  • 33
    11-859135 NUT, (.437-20)
    NUT, (.437-20)
  • 34
    57-69143Q V BELT
    V BELT
  • 35
    16-64281 STUD, (.375-16/.375-24 x 1.880)
    STUD, (.375-16/.375-24 x 1.880)
  • 36
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 37
    11-46335 NUT, (.375-24)
    NUT, (.375-24)
  • 35
    16-806591 STUD, (7/16-14) (7/16-14)
    STUD, (7/16-14) (7/16-14)
  • 36
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 37
    11-22024 NUT, (.437-14)
    NUT, (.437-14)
  • 38
    10-47462 SCREW, (.437-14 x 1.250)
    SCREW, (.437-14 x 1.250)
  • 39
    13-32993 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
