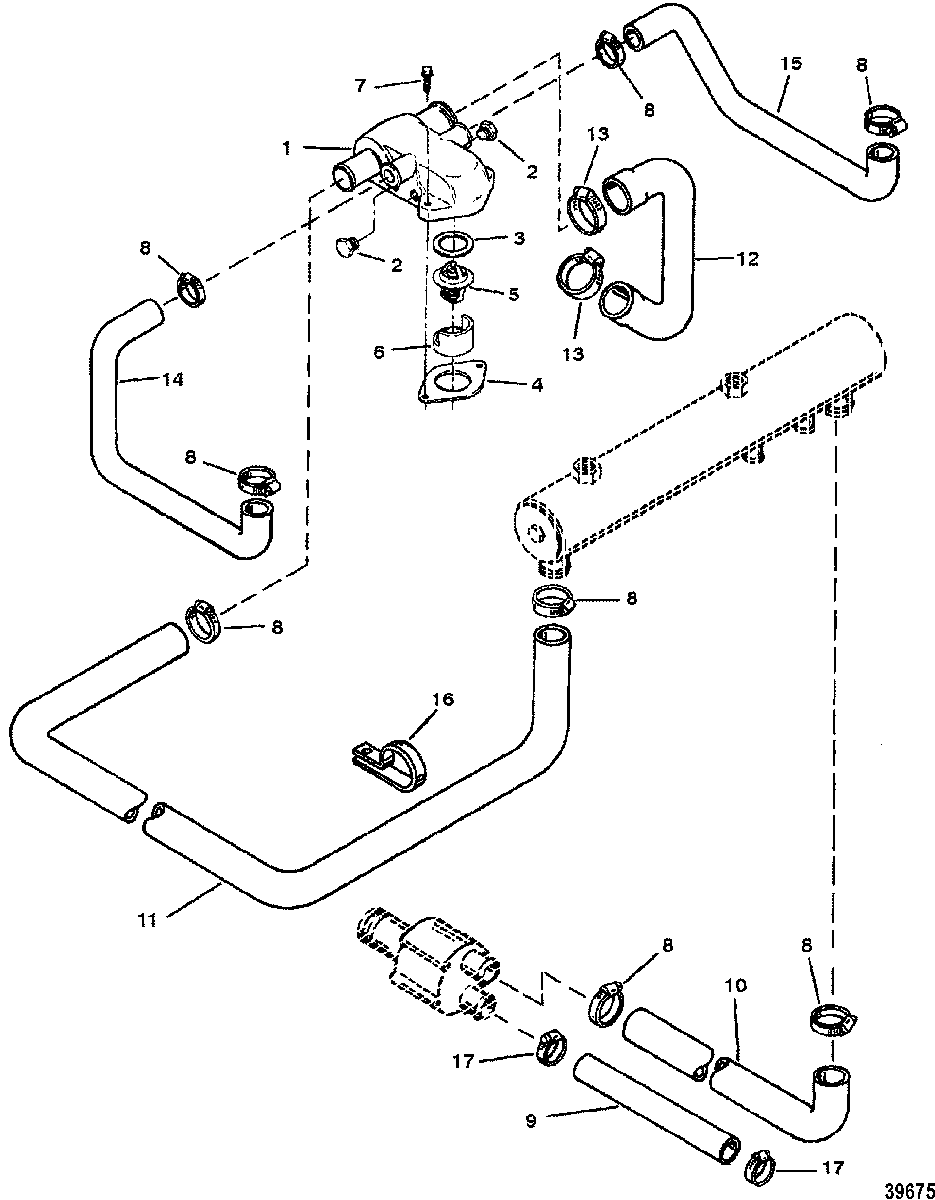

THERMOSTAT HOUSING(STANDARD COOLING) для Mercruiser - 454 EFI (GEN. V) GM 454 V-8 1994-1996 0F115700 THRU 0F802349

  • №
    Артикул
    Название
  • 1
    806235A1 HOUSING ASSEMBLY, Thermostat
    HOUSING ASSEMBLY, Thermostat
  • 2
    22-32803 PLUG, Pipe (.375-18) Brass
    PLUG, Pipe (.375-18) Brass
  • 3
    27-806871 GASKET
    GASKET
  • 4
    27-530451 GASKET
    GASKET
  • 5
    8M0109441 THERMOSTAT, 71A°C (160A°F)
    THERMOSTAT, 71A°C (160A°F)
  • 6
    23-806922 SLEEVE
    SLEEVE
  • 7
    10-8M0113180 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 8
    54-815504220 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 9
    32-8M0062666 HOSE, (96.00 Inches Bulk), Sea Pump to Drive Unit
    HOSE, (96.00 Inches Bulk), Sea Pump to Drive Unit
  • 10
    32-821418 HOSE, Oil Cooler to Sea Pump
    454 MAGNUM
    HOSE, Oil Cooler to Sea Pump
    454 MAGNUM
  • 10
    32-805251 HOSE, Oil Cooler to Sea Pump
    502 MAGNUM
    HOSE, Oil Cooler to Sea Pump
    502 MAGNUM
  • 11
    32-16011 HOSE, Oil Cooler to Thermostat Housing
    454 MAGNUM
    HOSE, Oil Cooler to Thermostat Housing
    454 MAGNUM
  • 11
    32-805469 HOSE, Oil Cooler to Thermostat Housing
    502 MAGNUM
    HOSE, Oil Cooler to Thermostat Housing
    502 MAGNUM
  • 12
    32-897181 HOSE, Thermostat Housing to Water Pump
    HOSE, Thermostat Housing to Water Pump
  • 13
    54-815504232 CLAMP, Worm Gear (2.50 Diameter)
    CLAMP, Worm Gear (2.50 Diameter)
  • 14
    32-897491 HOSE, Thermostat Housing
    (PORT)
    HOSE, Thermostat Housing
    (PORT)
  • 15
    32-807201 HOSE, Thermostat Housing
    (STARBOARD)
    HOSE, Thermostat Housing
    (STARBOARD)
  • 16
    54-47715 CLIP
    CLIP
  • 17
    54-815504222 CLAMP, Worm Gear (1.98 DIameter)
    CLAMP, Worm Gear (1.98 DIameter)
  • -
    27-811572A94 GASKET SET, Overhaul
    (454 MAGNUM)
    GASKET SET, Overhaul
    (454 MAGNUM)
  • -
    27-805396A92 GASKET SET, Overhaul
    (502 MAGNUM)
    GASKET SET, Overhaul
    (502 MAGNUM)
