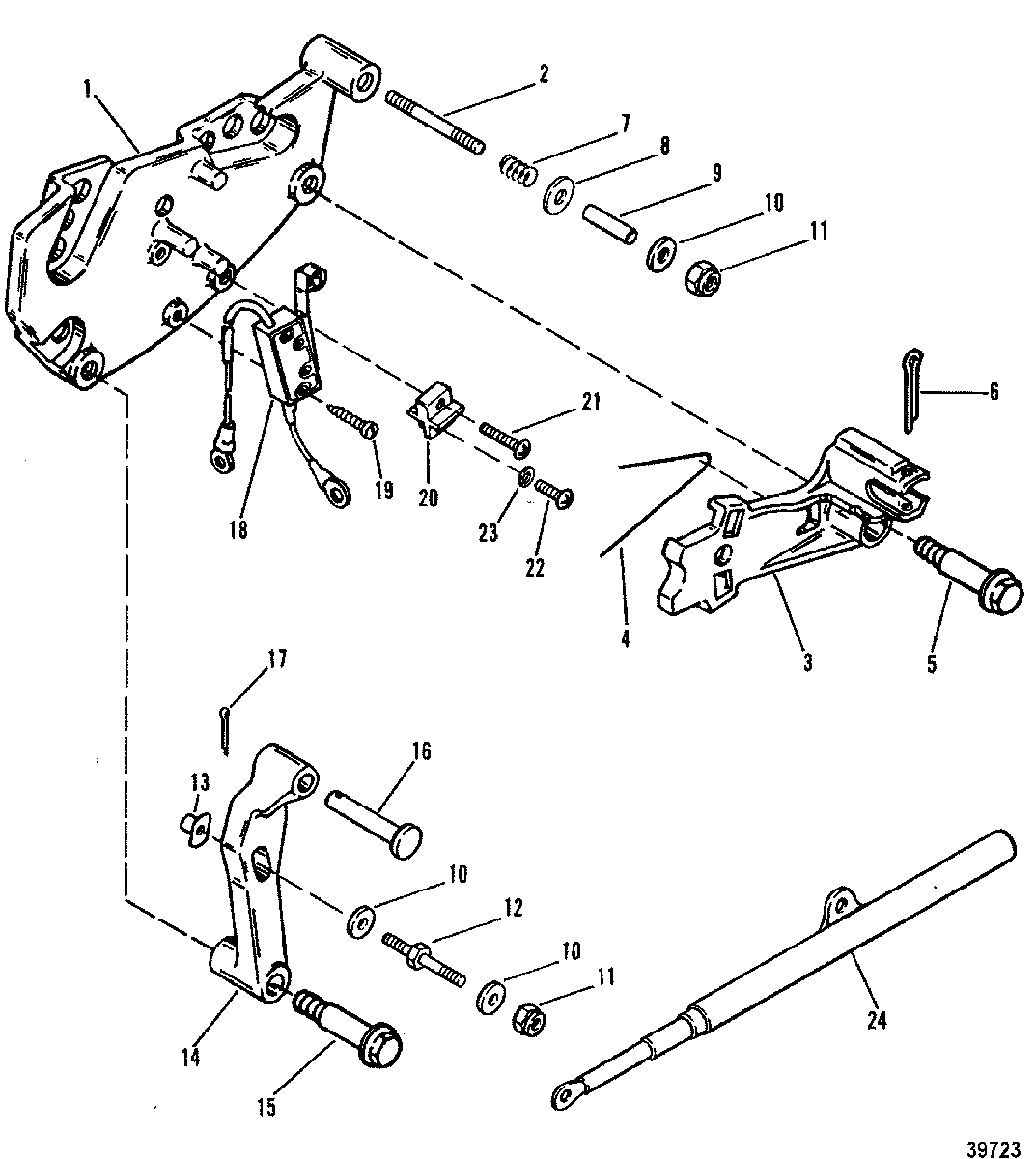

SHIFT BRACKET для Mercruiser - 4.3L (GEN II) (2 BBL.) GM 262 V-6 1992-1993 0D714107 THRU 0F000877

  • №
    Артикул
    Название
  • 1
    807962A15 BRACKET ASSEMBLY
    BRACKET ASSEMBLY
  • 2
    865149A02 STUD
    STUD
  • 3
    13051A4 LEVER ASSEMBLY, Actuating
    LEVER ASSEMBLY, Actuating
  • 4
    24-862850 SPRING
    SPRING
  • 5
    10-865148 SCREW, (.312-18 x 1.843), Shoulder
    SCREW, (.312-18 x 1.843), Shoulder
  • 6
    18-328571 COTTER PIN
    COTTER PIN
  • 7
    24-98880 SPRING
    SPRING
  • 8
    12-56720 WASHER, (.330 x .750 x .060) Stainless Steel
    WASHER, (.330 x .750 x .060) Stainless Steel
  • 9
    865149A02 SPACER
    SPACER
  • 10
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 11
    11-8267119 NUT, (.250-28)
    NUT, (.250-28)
  • 12
    16-8M0113178 STUD, (.250-28 x 2.00), Throttle Cable Anchor
    STUD, (.250-28 x 2.00), Throttle Cable Anchor
  • 13
    11-63341 TEE NUT
    TEE NUT
  • 14
    13898T06 LEVER ASSEMBLY, Shift
    LEVER ASSEMBLY, Shift
  • 15
    10-865148 SCREW, (.312-18 x 1.843), Shoulder
    SCREW, (.312-18 x 1.843), Shoulder
  • 16
    17-814001 PIN, Clevis
    PIN, Clevis
  • 17
    18-210711 COTTER PIN
    COTTER PIN
  • 18
    39670A28 SWITCH ASSEMBLY
    SWITCH ASSEMBLY
  • 19
    10-30902 SCREW, (#6-32 x .750)
    SCREW, (#6-32 x .750)
  • 20
    86-66986 TERMINAL BLOCK
    TERMINAL BLOCK
  • 21
    10-96113 SCREW, (#10-32 x .880) Stainless Steel
    SCREW, (#10-32 x .880) Stainless Steel
  • 22
    10-73287 SCREW, (#10-32 x .380)
    SCREW, (#10-32 x .380)
  • 23
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 24
    813995A1 GUIDE ASSEMBLY, Spring
    GUIDE ASSEMBLY, Spring
