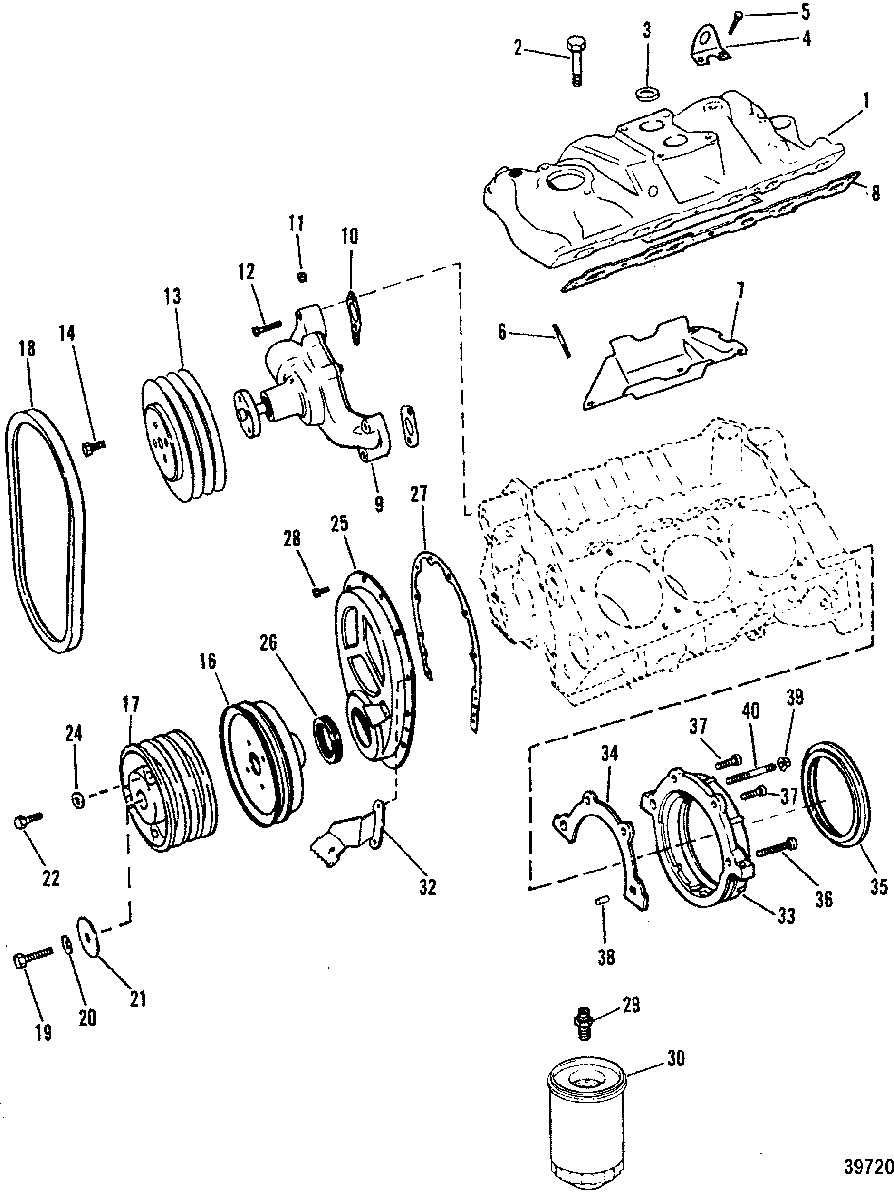

INTAKE MANIFOLD AND FRONT COVER для Mercruiser - 4.3L (GEN II) (2 BBL.) GM 262 V-6 1992-1993 0D714107 THRU 0F000877

  • №
    Артикул
    Название
  • 1
    11974 MANIFOLD, Intake (2 BARREL)
    MANIFOLD, Intake (2 BARREL)
  • 1
    42752T MANIFOLD, Intake (4 BARREL)
    MANIFOLD, Intake (4 BARREL)
  • 2
    10-11976 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 2
    10-802655 BOLT
    BOLT
  • 3
    22-75983 PLUG
    PLUG
  • 4
    42453 BRACKET (FRONT)
    BRACKET (FRONT)
  • 4
    42745 BRACKET (REAR)
    BRACKET (REAR)
  • 5
    10-34354 SCREW, (.375-16 x 1.50)
    SCREW, (.375-16 x 1.50)
  • 6
    N.S.S. Not Sold Separate, STUD (GM#3959544)
    Not Sold Separate, STUD (GM#3959544)
  • 7
    42753 GUARD
    GUARD
  • 8
    27-11977 GASKET SET
    GASKET SET
  • 9
    46-8M0113734 PUMP ASSEMBLY, Water
    PUMP ASSEMBLY, Water
  • 10
    27-34897 GASKET
    GASKET
  • 11
    22-48336 PLUG, Water Pump
    PLUG, Water Pump
  • 12
    10-32132 SCREW, (.375-16 x 1.750)
    SCREW, (.375-16 x 1.750)
  • 12
    10-47688 SCREW, (.375-16 x 2.750)
    SCREW, (.375-16 x 2.750)
  • 12
    10-52200 SCREW, (1.625 In.) (1-1/2")
    SCREW, (1.625 In.) (1-1/2")
  • 12
    N.S.S. Not Sold Separate, STUD (GM#3759755)
    Not Sold Separate, STUD (GM#3759755)
  • 13
    19692T01 PULLEY, (7 In. Diameter)
    PULLEY, (7 In. Diameter)
  • 14
    10-47277 SCREW, (.312-24 x .750)
    SCREW, (.312-24 x .750)
  • 16
    11990 BALANCER
    BALANCER
  • 17
    90081A1 PULLEY
    PULLEY
  • 18
    57-48120Q1 V BELT, (46 Inch)
    V BELT, (46 Inch)
  • 19
    10-8M2021674 SCREW, (.437-20 x 2.50)
    SCREW, (.437-20 x 2.50)
  • 20
    13-39131 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 21
    12-35332001 WASHER
    WASHER
  • 22
    10-53833 BOLT, (.375-24 x 2.00)
    BOLT, (.375-24 x 2.00)
  • 24
    12-34714 WASHER
    WASHER
  • 25
    8M0127828 COVER
    COVER
  • 26
    26-97335 SEAL, Oil
    SEAL, Oil
  • 27
    27-14250 GASKET
    GASKET
  • 28
    10-8M0040582 SCREW, (.250-20 x .563)
    SCREW, (.250-20 x .563)
  • 29
    11972 ADAPTOR, W/O REMOTE OIL FILTER
    ADAPTOR, W/O REMOTE OIL FILTER
  • 30
    35-883702Q FILTER, Oil
    FILTER, Oil
  • 32
    75435A1 POINTER
    POINTER
  • 33
    14239 RETAINER, Oil Seal (REAR)
    RETAINER, Oil Seal (REAR)
  • 34
    27-881715 GASKET
    GASKET
  • 35
    26-8M0077606 SEAL, Oil (REAR)
    SEAL, Oil (REAR)
  • 36
    10-8M0064241 BOLT, (.250-20 x 1.750)
    BOLT, (.250-20 x 1.750)
  • 37
    10-14242 BOLT, (.250-20 x .875)
    BOLT, (.250-20 x .875)
  • 38
    17-14263 PIN, Dowel
    PIN, Dowel
  • 39
    11-11996 NUT
    NUT
  • 40
    16-14827 STUD, (.250-20 x 2.180)
    STUD, (.250-20 x 2.180)
