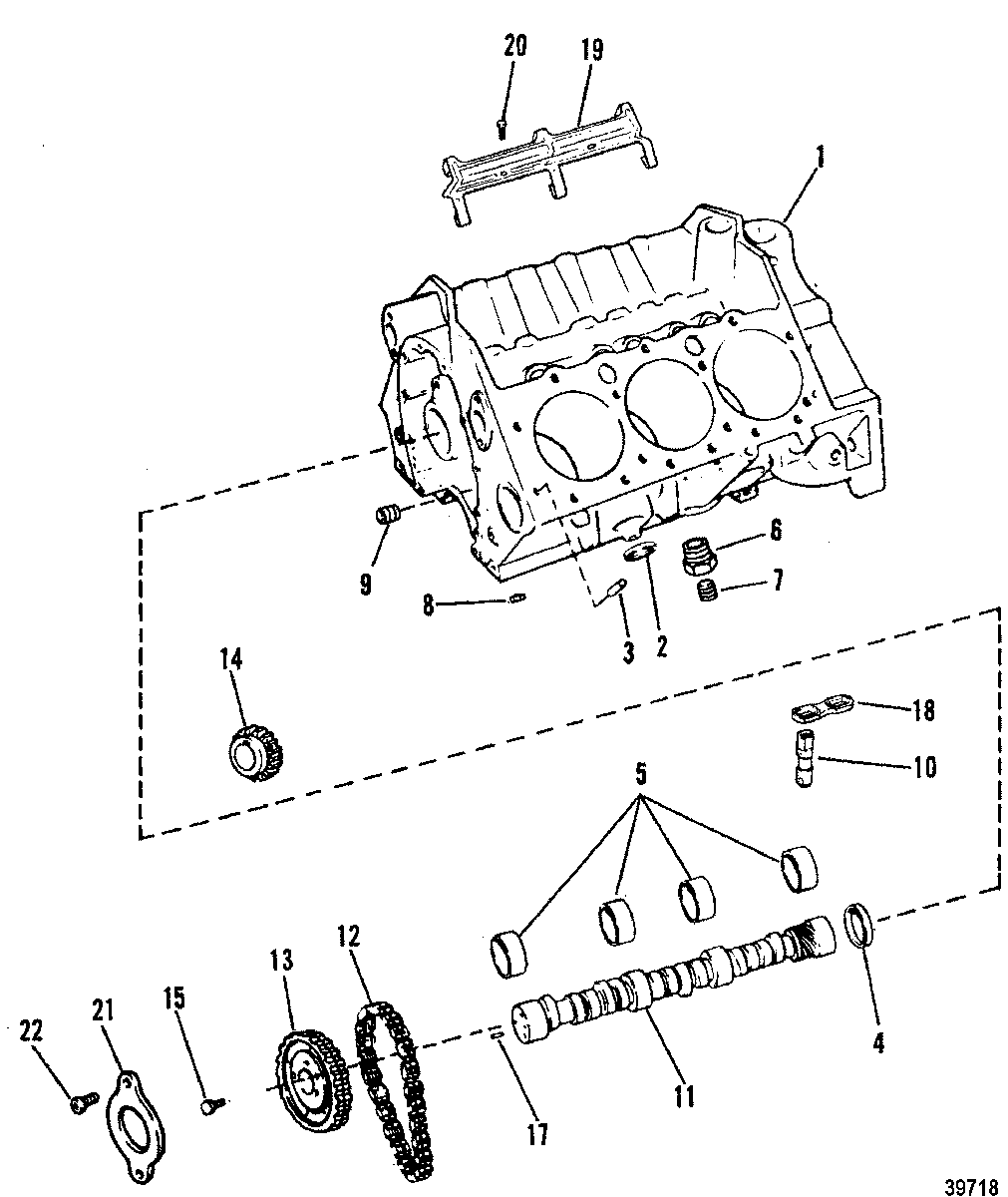

CYLINDER BLOCK AND CAMSHAFT для Mercruiser - 4.3L (GEN II) (2 BBL.) GM 262 V-6 1992-1993 0D714107 THRU 0F000877

  • №
    Артикул
    Название
  • 1
    841-811838 CYLINDER BLOCK
    (See Note 2)
    CYLINDER BLOCK
    (See Note 2)
  • 2
    19-34270 EXPANSION PLUG, (1.625)
    EXPANSION PLUG, (1.625)
  • 3
    17-35465 PIN, Dowel (.312)
    PIN, Dowel (.312)
  • 4
    22-72640 PLUG, Expansion
    PLUG, Expansion
  • 5
    23-802999 BEARING SET
    BEARING SET
  • 6
    22-48556 BUSHING , Reducer (.250 To .125)
    BUSHING , Reducer (.250 To .125)
  • 7
    22-328022 PLUG, Pipe (.125-27)
    PLUG, Pipe (.125-27)
  • 8
    22-42796 VALVE, Oil Filter Bypass
    VALVE, Oil Filter Bypass
  • 9
    19-816565 PLUG, Pipe(.468)
    PLUG, Pipe(.468)
  • 10
    811844T LIFTER
    LIFTER
  • 11
    431-811840T CAMSHAFT
    CAMSHAFT
  • 12
    17161T CHAIN, Timing
    CHAIN, Timing
  • 13
    43-8116591 SPROCKET, CAMSHAFT
    SPROCKET, CAMSHAFT
  • 14
    43-17160 SPROCKET, CRANKSHAFT
    SPROCKET, CRANKSHAFT
  • 15
    10-8M0043993 SCREW, (.312-18 x .750)
    SCREW, (.312-18 x .750)
  • 17
    17-843378 PIN, Dowel (1/4 n. Diameter)
    PIN, Dowel (1/4 n. Diameter)
  • 18
    17341T GUIDE, Lifter
    GUIDE, Lifter
  • 19
    17342 RETAINER
    RETAINER
  • 20
    10-34500 SCREW, (.312-18 x .625)
    SCREW, (.312-18 x .625)
  • 21
    17348 RETAINER
    RETAINER
  • 22
    10-845943 SCREW, (.250-20 x .500)
    SCREW, (.250-20 x .500)
  • -
    27-11977A92 GASKET SET, Engine Overhaul
    GASKET SET, Engine Overhaul
  • -
    92-809826 SEALER, Red RTV (Where Applicable)
    SEALER, Red RTV (Where Applicable)
  • -
    92-34227Q02 SEALING COMPOUND, (16 Ounce) (Where Applicable)
    SEALING COMPOUND, (16 Ounce) (Where Applicable)
  • -
    805614R1 MARINE ENGINE, LONG BLOCK
    (2 Barrel)
    MARINE ENGINE, LONG BLOCK
    (2 Barrel)
  • -
    805614R1 MARINE ENGINE, LONG BLOCK
    (4 Barrel)
    MARINE ENGINE, LONG BLOCK
    (4 Barrel)
