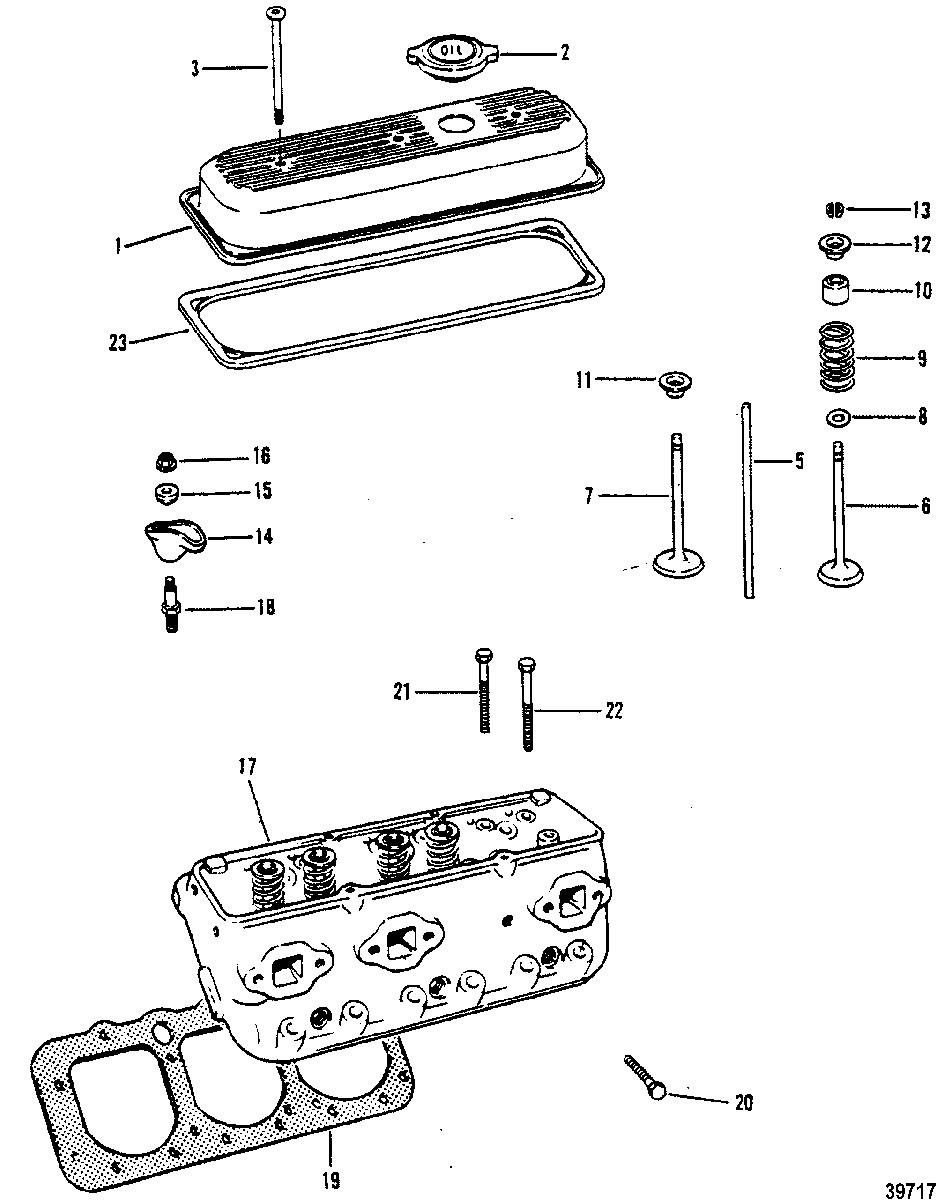

CYLINDER HEAD AND ROCKER COVER для Mercruiser - 4.3L (GEN II) (2 BBL.) GM 262 V-6 1992-1993 0D714107 THRU 0F000877

  • №
    Артикул
    Название
  • 1
    14252 ROCKER COVER (RIGHT)
    ROCKER COVER (RIGHT)
  • 1
    814504 ROCKER COVER (LEFT)
    ROCKER COVER (LEFT)
  • 2
    36-18710002 CAP, Metal Rocker Cover
    CAP, Metal Rocker Cover
  • 3
    10-8M0084557 SCREW
    SCREW
  • 5
    17339 PUSH ROD
    PUSH ROD
  • 6
    85803 VALVE (STANDARD)
    VALVE (STANDARD)
  • 6
    49076 VALVE (.015 O.S.)
    VALVE (.015 O.S.)
  • 7
    97661 VALVE, Intake (STANDARD)
    VALVE, Intake (STANDARD)
  • 7
    97662 VALVE, Intake (.015 O.S.)
    VALVE, Intake (.015 O.S.)
  • 8
    26-34217 SEAL (INLET AND EXHAUST)
    SEAL (INLET AND EXHAUST)
  • 8
    26-8M0050563 SEAL (INLET)
    SEAL (INLET)
  • 9
    24-48347 SPRING (INLET AND EXHAUST)
    SPRING (INLET AND EXHAUST)
  • 10
    34518001 SHIELD
    SHIELD
  • 11
    48348 CAP
    CAP
  • 12
    11965 ROTATOR
    ROTATOR
  • 13
    28-547971 KEY
    KEY
  • 14
    824335T ROCKER ARM AND BALL KIT
    ROCKER ARM AND BALL KIT
  • 15
    NSS NOT SOLD SEPARATE
    NOT SOLD SEPARATE
  • 16
    11-801883 NUT
    NUT
  • 17
    938-884740R CYLINDER HEAD
    CYLINDER HEAD
  • 18
    16-801882 STUD
    STUD
  • 19
    27-879150140 GASKET
    GASKET
  • 20
    10-11968 SCREW, (.437-14 x 1.750)
    SCREW, (.437-14 x 1.750)
  • 21
    10-119671 BOLT, (3 In.) (3")
    BOLT, (3 In.) (3")
  • 22
    10-11966 SCREW, (.437-14 x 3.750)
    SCREW, (.437-14 x 3.750)
  • 23
    27-8M0077607 GASKET, Metal Rocker Cover
    GASKET, Metal Rocker Cover
