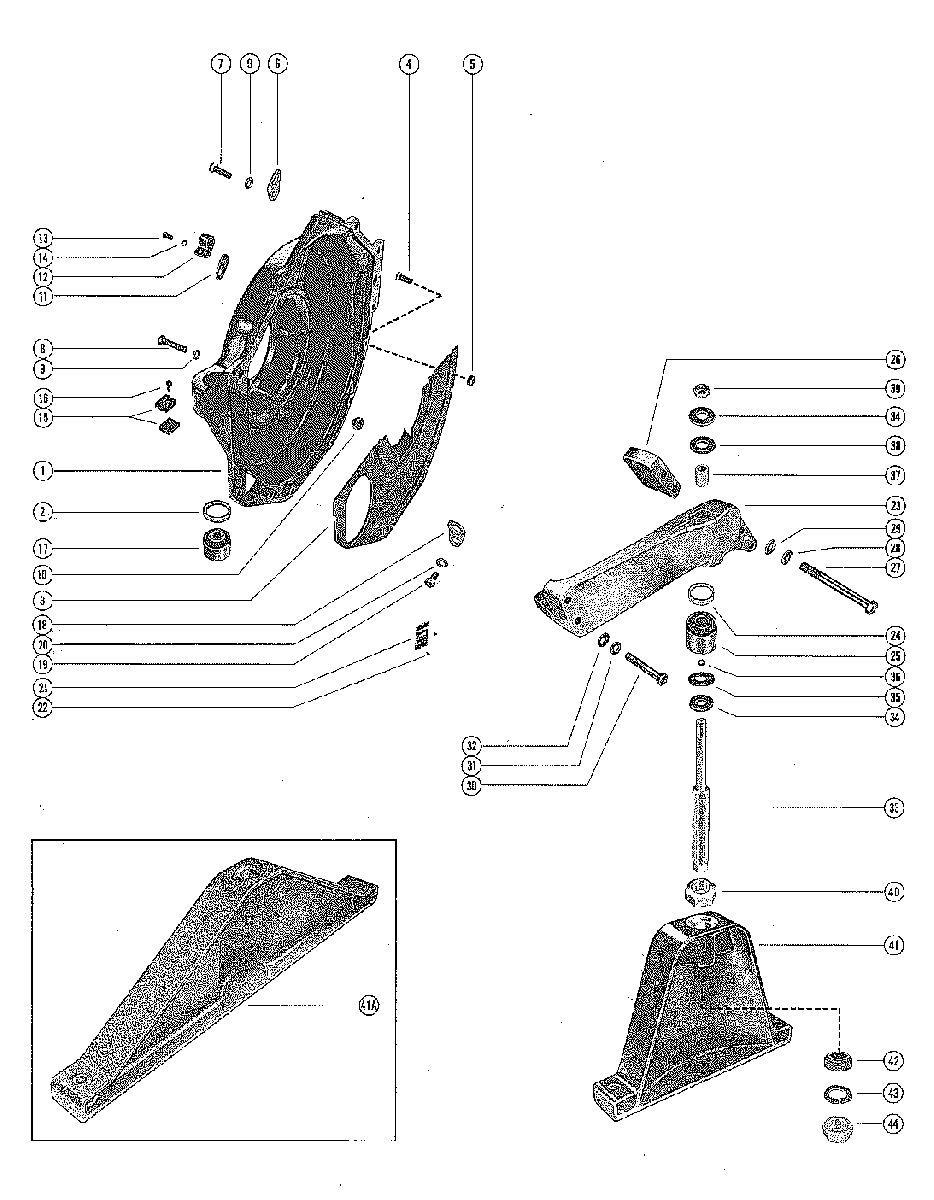

FLYWHEEL HOUSING AND ENGINE SUPPORT для Mercruiser - 160 GM 250 I/L6 1967-1969 2048022 THRU 2770031

  • №
    Артикул
    Название
  • 1
    65059A1 FLYWHEEL HOUSING ASSEMBLY
    SERIAL 00000000-02768031
    FLYWHEEL HOUSING ASSEMBLY
    SERIAL 00000000-02768031
  • 1
    65059A1 FLYWHEEL HOUSING ASSEMBLY
    SERIAL 02768032-09999999
    FLYWHEEL HOUSING ASSEMBLY
    SERIAL 02768032-09999999
  • 2
    23-99322 SPACER, FLYWHEEL HOUSING MOUNT
    SPACER, FLYWHEEL HOUSING MOUNT
  • 3
    35864A1 COVER PLATE, FLYWHEEL HOUSING
    COVER PLATE, FLYWHEEL HOUSING
  • 4
    10-47277 SCREW, COVER PLATE TO FLYWHEEL HOUSING (3/4")
    SCREW, COVER PLATE TO FLYWHEEL HOUSING (3/4")
  • 5
    11-29250 NUT, COVER PLATE SCREW
    NUT, COVER PLATE SCREW
  • 6
    54-72531 EYE, LIFTING - FLYWHEEL HOUSING SCREW
    EYE, LIFTING - FLYWHEEL HOUSING SCREW
  • 7
    10-37612 SCREW, HOUSING TO CYLINDER BLOCK (1 1/4")
    SERIAL 00000000-02768031
    SCREW, HOUSING TO CYLINDER BLOCK (1 1/4")
    SERIAL 00000000-02768031
  • 8
    10-34354 SCREW, HOUSING TO CYLINDER BLOCK (1 1/2")
    SERIAL 00000000-02768031
    SCREW, HOUSING TO CYLINDER BLOCK (1 1/2")
    SERIAL 00000000-02768031
  • 8
    10-358701 SCREW, HOUSING TO CYLINDER BLOCK (2")
    SERIAL 00000000-02768031
    SCREW, HOUSING TO CYLINDER BLOCK (2")
    SERIAL 00000000-02768031
  • 7
    10-37612 SCREW, HOUSING TO CYLINDER BLOCK (1 1/4")
    SERIAL 02768032-09999999
    SCREW, HOUSING TO CYLINDER BLOCK (1 1/4")
    SERIAL 02768032-09999999
  • 8
    10-98556 SCREW, HOUSING TO CYLINDER BLOCK (1 3/4")
    SERIAL 02768032-09999999
    SCREW, HOUSING TO CYLINDER BLOCK (1 3/4")
    SERIAL 02768032-09999999
  • 9
    13-35048 LOCKWASHER, HOUSING SCREW
    SERIAL 02768032-09999999
    LOCKWASHER, HOUSING SCREW
    SERIAL 02768032-09999999
  • 10
    11-32219 NUT, BRACKET AND FLYWHEEL HOUSING SCREW
    NUT, BRACKET AND FLYWHEEL HOUSING SCREW
  • 11
    32786 TAB, WIRING HARNESS TO FLYWHEEL HOUSING
    TAB, WIRING HARNESS TO FLYWHEEL HOUSING
  • 12
    54-24871 CLAMP, WIRING HARNESS TO FLYWHEEL HOUSING
    CLAMP, WIRING HARNESS TO FLYWHEEL HOUSING
  • 13
    10-22028 SCREW, WIRING HARNESS CLAMP ATTACHING (1/2")
    SCREW, WIRING HARNESS CLAMP ATTACHING (1/2")
  • 14
    13-26996 LOCKWASHER, WIRING HARNESS CLAMP SCREW
    LOCKWASHER, WIRING HARNESS CLAMP SCREW
  • 15
    39974 CONNECTOR, HARNESS LEDADS TO FLYWHEEL HOUSING
    QUANTITY OF 4 SERIAL 02768032-09999999
    CONNECTOR, HARNESS LEDADS TO FLYWHEEL HOUSING
    QUANTITY OF 4 SERIAL 02768032-09999999
  • 16
    10-37892 SCREW, CONNECTOR TO FLYWHEEL HOUSING (7/8")
    QUANTITY OF 4 SERIAL 02768032-09999999
    SCREW, CONNECTOR TO FLYWHEEL HOUSING (7/8")
    QUANTITY OF 4 SERIAL 02768032-09999999
  • 17
    8M0103028 MOUNT, FLYWHEEL HOUSING
    MOUNT, FLYWHEEL HOUSING
  • 18
    54-72531 EYE, LIFTING - CYLINDER BLOCK
    EYE, LIFTING - CYLINDER BLOCK
  • 19
    10-98261 SCREW, LIFTING EYE TO CYLINDER BLOCK (3/4")
    SCREW, LIFTING EYE TO CYLINDER BLOCK (3/4")
  • 20
    13-35048 WASHER, LIFTING EYE SCREW
    WASHER, LIFTING EYE SCREW
  • 21
    38-31042 SERIAL PLATE
    SERIAL PLATE
  • 22
    10-20314 SCREW, DRIVE - SERIAL PLATE TO CYLINDER BLOCK (3/16")
    SCREW, DRIVE - SERIAL PLATE TO CYLINDER BLOCK (3/16")
  • 23
    73571A2 BRACKET ASSEMBLY, FRONT MOUNTING
    BRACKET ASSEMBLY, FRONT MOUNTING
  • 24
    23-99322 SPACER, FRONT MOUNTING BRACKET
    SPACER, FRONT MOUNTING BRACKET
  • 25
    32833 MOUNT, FRONT MOUNTING BRACKET
    MOUNT, FRONT MOUNTING BRACKET
  • 26
    8M0046293 BLOCK, SPACRER - FRONT MOUNTING BRACKET
    BLOCK, SPACRER - FRONT MOUNTING BRACKET
  • 27
    10-8M2021918 SCREW, BRACKET AND SPACER BLOCK TO CYLINDER BLOCK (4 1/2")
    SCREW, BRACKET AND SPACER BLOCK TO CYLINDER BLOCK (4 1/2")
  • 28
    13-32993 LOCKWASHER, BRACKET AND SPACER BLOCK SCREW
    LOCKWASHER, BRACKET AND SPACER BLOCK SCREW
  • 29
    12-22248 WASHER, BRACKET AND SPACER BLOCK SCREW
    WASHER, BRACKET AND SPACER BLOCK SCREW
  • 30
    10-26486 SCREW, FRONT MOUNTING BRACKET TO CYLINDER BLOCK (2 3/8")
    SCREW, FRONT MOUNTING BRACKET TO CYLINDER BLOCK (2 3/8")
  • 31
    13-35048 LOCKWASHER, FRONT MOUNTING BRACKET SCREW
    LOCKWASHER, FRONT MOUNTING BRACKET SCREW
  • 32
    12-37828 WASHER, FRONT MOUNTING BRACKET SCREW
    WASHER, FRONT MOUNTING BRACKET SCREW
  • 33
    16-36100T STUD, ADJUSTING - FRONT MOUNTING BRACKET (9 1/4")
    STUD, ADJUSTING - FRONT MOUNTING BRACKET (9 1/4")
  • 34
    12-36103 WASHER, FRONT MOUNTING BRACKET ADJUSTING STUD
    WASHER, FRONT MOUNTING BRACKET ADJUSTING STUD
  • 35
    12-32638 WASHER, FRONT MOUNTINB RACKRET ADJUSTING STUD
    WASHER, FRONT MOUNTINB RACKRET ADJUSTING STUD
  • 36
    12-20959 WASHER, FRONT MOUNTING BRAKCET ADJUSTING STUD
    WASHER, FRONT MOUNTING BRAKCET ADJUSTING STUD
  • 37
    23-36101 SPACER, FRONT MOUNTING BRACKET ADJUSTING STUD
    SPACER, FRONT MOUNTING BRACKET ADJUSTING STUD
  • 38
    12-36104 WASHER, RUBBER - FRONT MOUNTING BRACKET ADJUSTING STUD
    WASHER, RUBBER - FRONT MOUNTING BRACKET ADJUSTING STUD
  • 39
    11-82671317 NUT, FRONT MOUNTING BRACKET ADJUSTING STUD (TOP)
    NUT, FRONT MOUNTING BRACKET ADJUSTING STUD (TOP)
  • 40
    11-32882 NUT, FRONT MOUNTING BRACKET ADJUSTING STUD
    NUT, FRONT MOUNTING BRACKET ADJUSTING STUD
  • 41
    32778T SUPPORT, FRONT - ENGINE MOUNT
    SUPPORT, FRONT - ENGINE MOUNT
  • 41A
    32849 SUPPORT, FRONT - ENGINE MOUNT
    SUPPORT, FRONT - ENGINE MOUNT
  • 42
    23-33064 SLEEVE, FRONT MOUNTING BRACKET ADJUSTING STUD
    SLEEVE, FRONT MOUNTING BRACKET ADJUSTING STUD
  • 43
    13-33065 LOCKWASHER, FRONT MOUNTING BRACKET ADJUSTING STUD
    LOCKWASHER, FRONT MOUNTING BRACKET ADJUSTING STUD
  • 44
    11-8M0041651 NUT, JAM - FRONT MOUNTING BRACKET ADJUSTING STUD (BOTTOM)
    NUT, JAM - FRONT MOUNTING BRACKET ADJUSTING STUD (BOTTOM)
