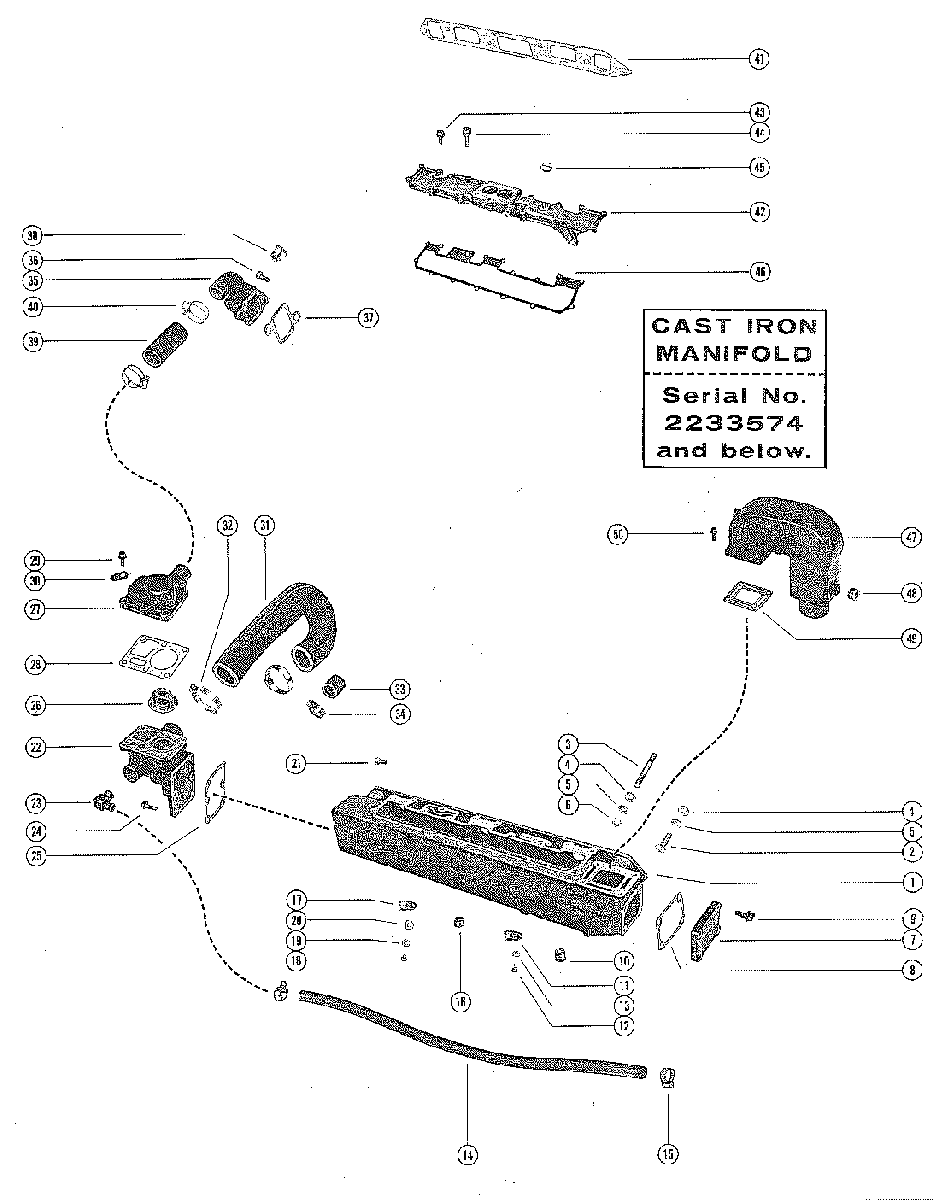

EXHAUST MANIFOLD ASSEMBLY (CAST IRON) для Mercruiser - 160 GM 250 I/L6 1967-1969 2048022 THRU 2770031

  • №
    Артикул
    Название
  • 1
    58759A11 BODY, EXHAUST MANIFOLD
    BODY, EXHAUST MANIFOLD
  • 2
    10-21077 SCREW, EXHAUST MANIFOLD BODY TO CYLINDER HEAD (7/8")
    SCREW, EXHAUST MANIFOLD BODY TO CYLINDER HEAD (7/8")
  • 2
    10-37612 SCREW, EXHAUST MANIFOLD BODY TO CYLINDER HEAD (1 1/4")
    SCREW, EXHAUST MANIFOLD BODY TO CYLINDER HEAD (1 1/4")
  • 3
    16-49915 STUD, EXHAUST MANIFOLD BODY TO CYLINDER HEAD (1 1/2")
    STUD, EXHAUST MANIFOLD BODY TO CYLINDER HEAD (1 1/2")
  • 4
    12-20553 WASHER, EXHAUST MANIFOLD BODY STUD AND SCREW
    WASHER, EXHAUST MANIFOLD BODY STUD AND SCREW
  • 5
    13-35048 LOCKWASHER, EXHAUST MANIFOLD BODY STUD AND SCREW
    LOCKWASHER, EXHAUST MANIFOLD BODY STUD AND SCREW
  • 6
    11-20087 NUT, EXHAUST MANIFOLD BODY STUD
    NUT, EXHAUST MANIFOLD BODY STUD
  • 7
    73811A1 END CAP, EXHAUST MANIFOLD BODY
    END CAP, EXHAUST MANIFOLD BODY
  • 8
    27-39923 GASKET, END CAP
    GASKET, END CAP
  • 9
    10-39970 SCREW, ENDF CAP TO EXHAUST MANIFOLD BODY (1")
    SCREW, ENDF CAP TO EXHAUST MANIFOLD BODY (1")
  • 10
    22-328022 PLUT, PIPE - EXHAUST MANIFOLD BODY (1/8-27)
    PLUT, PIPE - EXHAUST MANIFOLD BODY (1/8-27)
  • 11
    54-28938 CLAMP, WIRING HARNESS TO EXHAUST MANIFOLD BODY
    CLAMP, WIRING HARNESS TO EXHAUST MANIFOLD BODY
  • 12
    10-98253 SCREW, WIRING HARNESS CLAMP FASTENING (1/2")
    SCREW, WIRING HARNESS CLAMP FASTENING (1/2")
  • 13
    13-26992 LOCKWASHERE, WIRING HARNESS CLAMP SCREW
    LOCKWASHERE, WIRING HARNESS CLAMP SCREW
  • 14
    32-47642 H OSE, INLET - WATER IDSBRIBUTION BLOCK TO DRIVE UNIT (44")
    H OSE, INLET - WATER IDSBRIBUTION BLOCK TO DRIVE UNIT (44")
  • 15
    54-815504310 CLAMP, INLET HOSE TO WATER DISBRIBUTION BLOCK AND DRIVE UNIT
    CLAMP, INLET HOSE TO WATER DISBRIBUTION BLOCK AND DRIVE UNIT
  • 16
    22-384071 PLUG, EXHAUST MANIFOLD BODY (3/4-14) 2
    PLUG, EXHAUST MANIFOLD BODY (3/4-14) 2
  • 17
    54-22740 CLAMP,M WIRING HARNESS TO EXHAUST MANIFOLD BODY (3/8")
    CLAMP,M WIRING HARNESS TO EXHAUST MANIFOLD BODY (3/8")
  • 18
    10-22028 SCREW, WIRING HARNESS CLAMP FAST43ENING (1/2")
    SCREW, WIRING HARNESS CLAMP FAST43ENING (1/2")
  • 19
    13-26996 LOCKWASHER, WIRING HARNESS CLAMP SCREW
    LOCKWASHER, WIRING HARNESS CLAMP SCREW
  • 20
    8M0084613 "D" WASHER, WIRING HARNESS CLAMP SCREW
    "D" WASHER, WIRING HARNESS CLAMP SCREW
  • 21
    10-25299 SCREW, WATER PUMP FLANGE (3/4")
    SCREW, WATER PUMP FLANGE (3/4")
  • 22
    39921 BLOCK, WATER DISBRIBUTION - EXHAUST MANIFOLD BODY
    BLOCK, WATER DISBRIBUTION - EXHAUST MANIFOLD BODY
  • 23
    22-32715 ELBOW, WATER DISBRIBUTION BLOCK
    ELBOW, WATER DISBRIBUTION BLOCK
  • 24
    10-39970 SCREW, WATER DISBRIBUTION BLOCK TO EXHAUST MANIFOLD
    BODY (7/8")
    SCREW, WATER DISBRIBUTION BLOCK TO EXHAUST MANIFOLD
    BODY (7/8")
  • 24
    10-73657 SCREW, WATER DISBRIBUTION BLOCK TO EXHAUST MANIFOLD
    BODY (1 1/2")
    SCREW, WATER DISBRIBUTION BLOCK TO EXHAUST MANIFOLD
    BODY (1 1/2")
  • 25
    27-39917 GASKET, WATER DISTRIBUTION BLOCK
    GASKET, WATER DISTRIBUTION BLOCK
  • 26
    8M0089715 THERMOSTAT
    THERMOSTAT
  • 27
    39918 CONTAINER, THERMOSTAT
    CONTAINER, THERMOSTAT
  • 28
    27-39914 GASKET, THERMOSTAT CONTAINER
    GASKET, THERMOSTAT CONTAINER
  • 29
    10-39970 SCREW, THERMOSTAT CONTAINER TO WATER DISBRIBUTION BLOCK
    (1")
    SCREW, THERMOSTAT CONTAINER TO WATER DISBRIBUTION BLOCK
    (1")
  • 29
    10-35385 SCREW, THERMOSTAT CONTAINER TO WATER DISBRIBUTION BLOCK
    (1 3/4")
    SCREW, THERMOSTAT CONTAINER TO WATER DISBRIBUTION BLOCK
    (1 3/4")
  • 30
    53-78201 RETAINER, THERMOSTAT HOUSING SCREW - THROTTLE RETURN SPRING
    RETAINER, THERMOSTAT HOUSING SCREW - THROTTLE RETURN SPRING
  • 31
    32-33484 HOSE, WATER DISTRIBUTION BLOCK TO WATER PUMP
    HOSE, WATER DISTRIBUTION BLOCK TO WATER PUMP
  • 32
    54-815504228 CLAMP, HOSE TO WATER DISTRIBUTION BLOCK AND WATER PUMP
    CLAMP, HOSE TO WATER DISTRIBUTION BLOCK AND WATER PUMP
  • 33
    32877 COVER, WATER PUMP
    COVER, WATER PUMP
  • 34
    54-815504412 CLAMP, WATER PUMP COVER TO WATER PUMP
    CLAMP, WATER PUMP COVER TO WATER PUMP
  • 35
    39919 ELBOW, WATER OUTLET - CYLINDER HEAD
    ELBOW, WATER OUTLET - CYLINDER HEAD
  • 36
    10-21077 SCREW, WATER OUTLET ELBOW TO CYLINDER HEAD (7/8")
    SCREW, WATER OUTLET ELBOW TO CYLINDER HEAD (7/8")
  • 37
    27-8146801 GASKET, WATER OUTLET ELBOW
    GASKET, WATER OUTLET ELBOW
  • 38
    22-32804 PLUG, PIPE - WATER OUTLET ELBOW
    PLUG, PIPE - WATER OUTLET ELBOW
  • 39
    32-8M0062665 HOSE, WATER OUTLET ELBOW TO THERMOSTAT CONTAINER (3 3/4")
    HOSE, WATER OUTLET ELBOW TO THERMOSTAT CONTAINER (3 3/4")
  • 40
    54-815504220 CLAMP, HOSE TO WATER OUTLET ELBOW AND THERMOSTAT CONTAINER
    CLAMP, HOSE TO WATER OUTLET ELBOW AND THERMOSTAT CONTAINER
  • 41
    27-46401 GASKET, EXHAUST MANIFOLD BODY TO CYLINDER HEAD
    GASKET, EXHAUST MANIFOLD BODY TO CYLINDER HEAD
  • 42
    38981 COVER, INTAKE MANIFOLD
    COVER, INTAKE MANIFOLD
  • 43
    10-39970 SCREW, INTAKE MANIFOLD COVER TO EXHAUST MANIFOLD BODY (1")
    SCREW, INTAKE MANIFOLD COVER TO EXHAUST MANIFOLD BODY (1")
  • 44
    10-38535 SCREW, INTAKE MANIFOLD COVER TO EXHAUST MANIFOLD BODY
    (1 1/2")
    SCREW, INTAKE MANIFOLD COVER TO EXHAUST MANIFOLD BODY
    (1 1/2")
  • 45
    22-36382 PLUG, PIPE - INTAKE MANIFOLD COVER (1/4-18)
    PLUG, PIPE - INTAKE MANIFOLD COVER (1/4-18)
  • 46
    27-39255 GASKET, INTAKE MANIFOLD COVER
    GASKET, INTAKE MANIFOLD COVER
  • 47
    55538A2 ELBOW, EXHAUST
    ELBOW, EXHAUST
  • 48
    22-416223 PLUG, EXHAUST ELBOW (3/4-14)
    PLUG, EXHAUST ELBOW (3/4-14)
  • 49
    27-39915 GASKET, EXHAUST ELBOW
    GASKET, EXHAUST ELBOW
  • 50
    10-39970 SCREW, EXHAUST ELBOW TO EXHAUST MANIFOLD BODY (1")
    SCREW, EXHAUST ELBOW TO EXHAUST MANIFOLD BODY (1")
