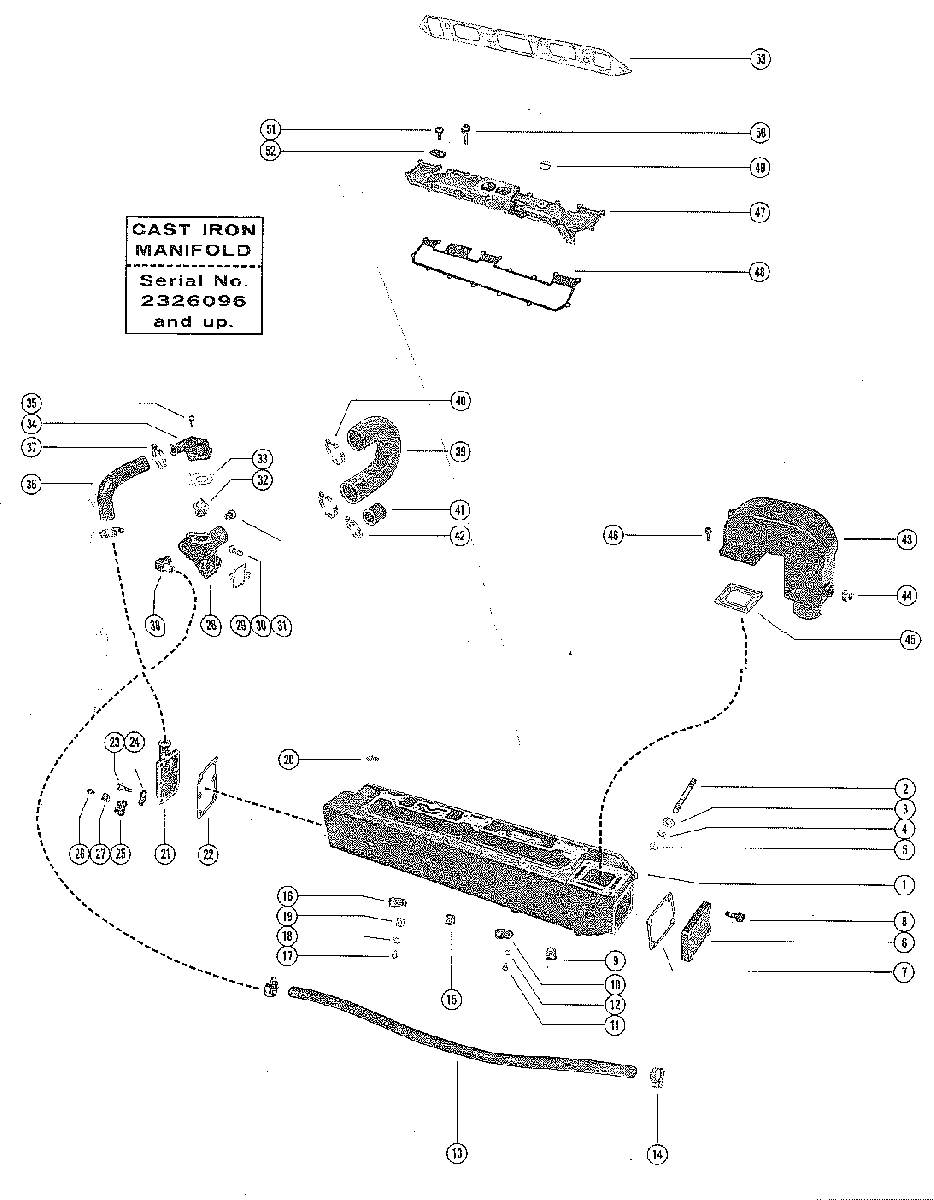

EXHAUST MANIFOLD ASSEMBLY (CAST IRON) для Mercruiser - 160 GM 250 I/L6 1967-1969 2048022 THRU 2770031

  • №
    Артикул
    Название
  • 1
    58759A11 BODY, EXHAUST MANIFOLD
    BODY, EXHAUST MANIFOLD
  • 2
    16-49915 STUD, EXHAUST MANIFOLD TO CYLINDER HEAD (1 1/2")
    STUD, EXHAUST MANIFOLD TO CYLINDER HEAD (1 1/2")
  • 2
    16-49545 STUD, EXHAUST MANIFOLD TO CYLINDER HEAD (1 3/4")
    STUD, EXHAUST MANIFOLD TO CYLINDER HEAD (1 3/4")
  • 3
    12-20553 WASHER, EXHAUST MANIFOLD STUD EARLY MODELS ONLY
    WASHER, EXHAUST MANIFOLD STUD EARLY MODELS ONLY
  • 4
    13-35048 LOCKWASHER, EXHAUST MANIFOLD STUD EARLY MODELS ONLY
    LOCKWASHER, EXHAUST MANIFOLD STUD EARLY MODELS ONLY
  • 5
    11-49910 NUT, EXHAUST MANIFOLD STUD
    NUT, EXHAUST MANIFOLD STUD
  • 6
    73811A1 END CAP, EXHAUST MANIFOLD
    END CAP, EXHAUST MANIFOLD
  • 7
    27-39923 BASKET, END CAP
    BASKET, END CAP
  • 8
    10-39970 SCREW, END CAP TO EXHAUST MANIFOLD (1") 4
    SCREW, END CAP TO EXHAUST MANIFOLD (1") 4
  • 9
    22-328022 PLUT, PIPE - EXHAUST MANIFOLD (1/8-27)
    PLUT, PIPE - EXHAUST MANIFOLD (1/8-27)
  • 10
    54-28938 CLAMP, WIRING HARNESS TO EXHAUST MANIFOLD
    CLAMP, WIRING HARNESS TO EXHAUST MANIFOLD
  • 11
    10-98253 SCREW, WIRING HARNESS CLAMP FASTENING (1/2")
    SCREW, WIRING HARNESS CLAMP FASTENING (1/2")
  • 12
    13-26992 LOCKWASHER, WIRING HARNESS CLAMP SCREW
    LOCKWASHER, WIRING HARNESS CLAMP SCREW
  • 13
    32-47642 HOSE, INLET - WATER DISTRIBUTION BLOCK TO DRIVE UNIT (44")
    HOSE, INLET - WATER DISTRIBUTION BLOCK TO DRIVE UNIT (44")
  • 14
    54-815504310 CLAMP, INLET HOSE TO WATER DISTRIBUTION BLOCK AND DRIVE UNIT
    CLAMP, INLET HOSE TO WATER DISTRIBUTION BLOCK AND DRIVE UNIT
  • 15
    22-48118 PLUG, EXHAUST MANIFOLD (1-3/4")
    PLUG, EXHAUST MANIFOLD (1-3/4")
  • 16
    54-22740 CLAMP, WIRING HARNESS TO EXHAUST MANIFOLD (3/8")
    CLAMP, WIRING HARNESS TO EXHAUST MANIFOLD (3/8")
  • 17
    10-22028 SCREW, WIRING HARNESS CLAMP FASTENING (1/2")
    SCREW, WIRING HARNESS CLAMP FASTENING (1/2")
  • 18
    13-26996 LOCKWASHER, WIRING HARNESS CLAMP SCREW
    LOCKWASHER, WIRING HARNESS CLAMP SCREW
  • 19
    8M0084613 "D" WASHER, WIRING HARNESS CLAMP SCREW
    "D" WASHER, WIRING HARNESS CLAMP SCREW
  • 20
    10-25299 SCREW, WATER PUMP FLANGE (3/4")
    SCREW, WATER PUMP FLANGE (3/4")
  • 21
    47638A1 END CAP/CONNECTOR, EXHAUST MANIFOLD
    END CAP/CONNECTOR, EXHAUST MANIFOLD
  • 22
    27-39917 GASKET, END CAP/CONNECTOR
    GASKET, END CAP/CONNECTOR
  • 23
    10-39970 SCREW, END CAP/CONNECTOR TO EXHAUST MANIFOLD (7/8")
    SCREW, END CAP/CONNECTOR TO EXHAUST MANIFOLD (7/8")
  • 23
    10-39970 SCREW, END CAP/CONNECTOR TO EXHUST MANIFOLD (1")
    SCREW, END CAP/CONNECTOR TO EXHUST MANIFOLD (1")
  • 24
    53-78201 RETAINER, END CAP/CONNECTOR SCREW - WIRING HARNESS CLIP
    RETAINER, END CAP/CONNECTOR SCREW - WIRING HARNESS CLIP
  • 25
    54-25231 CLIP, WIRING HARNESS TO RETAINER
    CLIP, WIRING HARNESS TO RETAINER
  • 26
    10-62568 SCREW, WIRING HARNESS CLIP TO RETAINER
    SCREW, WIRING HARNESS CLIP TO RETAINER
  • 27
    8M0084613 "D" WASHER, WIRING HARNESS CLIP SCREW
    "D" WASHER, WIRING HARNESS CLIP SCREW
  • 28
    861493A07 BLOCK ASSEMBLY, WATER DISTRIBUTION - CYLINDER HEAD
    BLOCK ASSEMBLY, WATER DISTRIBUTION - CYLINDER HEAD
  • 29
    27-8146801 GASKET, WATER DISTRIBUTION BLOCK
    GASKET, WATER DISTRIBUTION BLOCK
  • 30
    10-21077 SCREW, WATER DISTRIBUTION BLOCK TO CYLINDER HEAD (7/8")
    SCREW, WATER DISTRIBUTION BLOCK TO CYLINDER HEAD (7/8")
  • 31
    22-32803 PLUG, PIPE - WATER DISTRIBUTION BLOCK
    PLUG, PIPE - WATER DISTRIBUTION BLOCK
  • 32
    47594 THERMOSTAT
    THERMOSTAT
  • 33
    27-475901 GASKET, THERMOSTAT COVER
    GASKET, THERMOSTAT COVER
  • 34
    861493A07 COVER, THERMOSTAT - WATER DISTRIBUTION BLOCK
    COVER, THERMOSTAT - WATER DISTRIBUTION BLOCK
  • 35
    10-53512 SCREW, THERMOSTAT COVER TO WATER DISTRIBUTION BLOCK (3/4")
    SCREW, THERMOSTAT COVER TO WATER DISTRIBUTION BLOCK (3/4")
  • 36
    32-47639 HOSE, WATER DISTRIBUTION BLOCK TO END CAP/CONNECTOR
    HOSE, WATER DISTRIBUTION BLOCK TO END CAP/CONNECTOR
  • 37
    54-815504220 CLAMP, HOSE TO WATER DISTRIBUTION BLOCK AND END CAP CONNECTO
    CLAMP, HOSE TO WATER DISTRIBUTION BLOCK AND END CAP CONNECTO
  • 38
    22-53509 ELBOW, WATER DISTRIBUTION BLOCK
    ELBOW, WATER DISTRIBUTION BLOCK
  • 39
    32-8M0071007 HOSE, WATER DISTRIBUTION BLOCK TO WATER PUMP
    HOSE, WATER DISTRIBUTION BLOCK TO WATER PUMP
  • 40
    54-815504228 CLAMP, HOSE TO WATER DISTRIBUTION BLOCK AND WATER PUMP
    CLAMP, HOSE TO WATER DISTRIBUTION BLOCK AND WATER PUMP
  • 41
    32877 COVER, WATER PUMP
    COVER, WATER PUMP
  • 42
    54-815504412 CLAMP, WATER PUMP COVER TO WATER PUMP
    CLAMP, WATER PUMP COVER TO WATER PUMP
  • 43
    55538A2 ELBOW ASSEMBLY, EXHAUST
    SERIAL 00000000-02768031
    ELBOW ASSEMBLY, EXHAUST
    SERIAL 00000000-02768031
  • 43
    55538A2 ELBOW ASSEMBLY, EXHAUST
    SERIAL 02768032-09999999
    ELBOW ASSEMBLY, EXHAUST
    SERIAL 02768032-09999999
  • 44
    22-416223 PLUG, EXHAUST ELBOW (3/4-14)
    PLUG, EXHAUST ELBOW (3/4-14)
  • 45
    27-39915 GASKET, EXHAUST ELBOW
    GASKET, EXHAUST ELBOW
  • 46
    10-39970 SCREW, EXHAUST ELBOW TO EXHAUST MANIFOLD (1")
    SCREW, EXHAUST ELBOW TO EXHAUST MANIFOLD (1")
  • 47
    38981 COVER, INTAKE MANIFOLD
    COVER, INTAKE MANIFOLD
  • 48
    27-39255 GASKET, INTAKE MANIFOLD COVER
    GASKET, INTAKE MANIFOLD COVER
  • 49
    22-36382 PLUG, PIPE - INTAKE MANIFOLD COVER (1/4-18)
    PLUG, PIPE - INTAKE MANIFOLD COVER (1/4-18)
  • 50
    10-38535 SCREW, INTAKE MANIFOLD COVER TO EXHAUST MANIFOLD (1 1/2")
    SCREW, INTAKE MANIFOLD COVER TO EXHAUST MANIFOLD (1 1/2")
  • 51
    10-39970 SCREW, INTAKE MANIFOLD COVER TO EXHAUST MANIFOLD (1")
    SCREW, INTAKE MANIFOLD COVER TO EXHAUST MANIFOLD (1")
  • 52
    53-78201 RETAINER, INTAKE MANIFOLD COVER SCREW
    - THROTTLE RETURN SPRING
    RETAINER, INTAKE MANIFOLD COVER SCREW
    - THROTTLE RETURN SPRING
  • 53
    27-46401 GASKET, EXHAUST MANIFOLD TO CYLINDER HEAD
    GASKET, EXHAUST MANIFOLD TO CYLINDER HEAD
