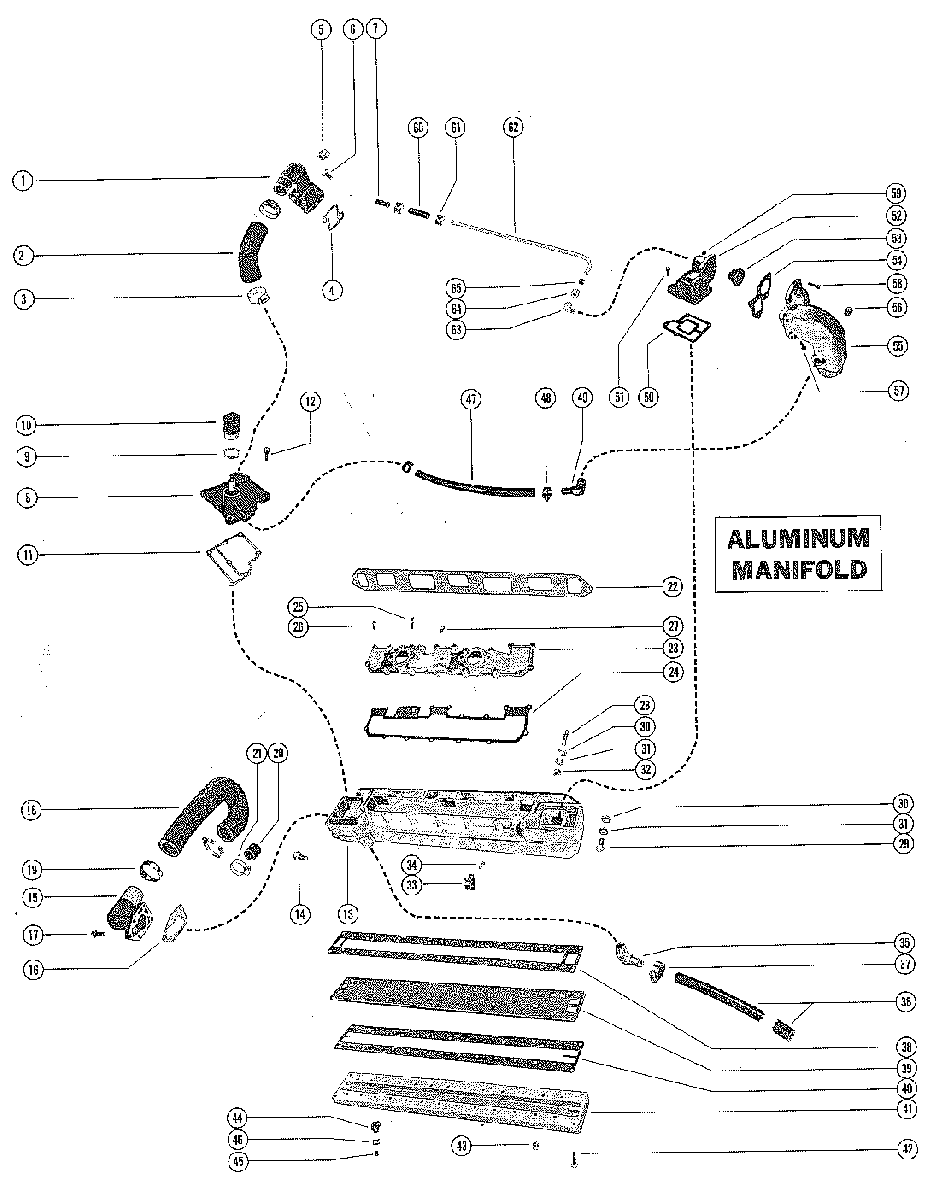

EXHAUST MANIFOLD ASSEMBLY (ALUMINUM) для Mercruiser - 160 GM 250 I/L6 1967-1969 2048022 THRU 2770031

  • №
    Артикул
    Название
  • 1
    38057T ELBOW, WATER OUTLET - CYLINDER HEAD
    ELBOW, WATER OUTLET - CYLINDER HEAD
  • 2
    32-38066 HOSE, WATER OUTLET ELBOW TO WATER INLET COVER
    HOSE, WATER OUTLET ELBOW TO WATER INLET COVER
  • 3
    54-815504220 CLAMP, WATER OUTLET ELBOW HOSE FASTENING
    CLAMP, WATER OUTLET ELBOW HOSE FASTENING
  • 4
    27-8146801 GASKET, WATER OUTLET ELBOW
    GASKET, WATER OUTLET ELBOW
  • 5
    22-32804 PLUG, PIPE - WATER OUTLET ELBOW
    PLUG, PIPE - WATER OUTLET ELBOW
  • 6
    10-21077 SCREW, WATER OUTLET ELBOW TO CYLINDER HEAD (7/8")
    SCREW, WATER OUTLET ELBOW TO CYLINDER HEAD (7/8")
  • 7
    22-33060 NIPPLE, BLEED HOSE TO WATER ELBOW
    NIPPLE, BLEED HOSE TO WATER ELBOW
  • 8
    38058A1 COVER ASSEMBLY, WATER INLET
    COVER ASSEMBLY, WATER INLET
  • 9
    27-38061 GASKET,M WATER INLET COVER CAP
    GASKET,M WATER INLET COVER CAP
  • 10
    22-38060T CAP, WATER INLET COVER
    CAP, WATER INLET COVER
  • 11
    27-35144 GASKET, WATER INLET COVER
    GASKET, WATER INLET COVER
  • 12
    10-39970 SCREW, WATER INLET COVER TO EXHAUST MANIFOLD BODY (1")
    SCREW, WATER INLET COVER TO EXHAUST MANIFOLD BODY (1")
  • 13
    58759A11 BODY, EXHAUST MANIFOLD
    BODY, EXHAUST MANIFOLD
  • 14
    10-25299 SCREW, WATER PUMP FLANGE (3/4")
    SCREW, WATER PUMP FLANGE (3/4")
  • 15
    35149 ELBOW, WATER OUTLET - EXHAUST MANIFOLD BODY
    ELBOW, WATER OUTLET - EXHAUST MANIFOLD BODY
  • 16
    27-35150 GASKET, EXHAUST MANIFOLD ELBOW
    GASKET, EXHAUST MANIFOLD ELBOW
  • 17
    10-39970 SCREW, WATER OUTLET ELBOW TO EXHAUST MANIFOLD BODY (1")
    SCREW, WATER OUTLET ELBOW TO EXHAUST MANIFOLD BODY (1")
  • 18
    32-33484 HOSE, WATER OUTLET ELBOW TO WATER PUMP
    HOSE, WATER OUTLET ELBOW TO WATER PUMP
  • 19
    54-815504228 CLAMP, H OSE TO WATER OUTLET ELBOW AND WATER PUMP
    CLAMP, H OSE TO WATER OUTLET ELBOW AND WATER PUMP
  • 20
    32877 COVER, WATER PUMP
    COVER, WATER PUMP
  • 21
    54-815504412 CLAMP, WATER PUMP COVER TO WATER PUMP
    CLAMP, WATER PUMP COVER TO WATER PUMP
  • 22
    27-46401 GASKET, EXHAUST MANIFOLD BODY TO CYLINDER HEAD
    GASKET, EXHAUST MANIFOLD BODY TO CYLINDER HEAD
  • 23
    38980 COVER, INTAKE MANIFOLD (NOT AS SHOWN)
    COVER, INTAKE MANIFOLD (NOT AS SHOWN)
  • 24
    27-39256 GASKET, INTAKE MANIFOLD COVER
    GASKET, INTAKE MANIFOLD COVER
  • 25
    10-38326 SCREW,INTAKE MANIFOLD COVER TO EXHAUST MANIFOLD BODY (1 5/8")
    SCREW,INTAKE MANIFOLD COVER TO EXHAUST MANIFOLD BODY (1 5/8")
  • 26
    10-28667 SCREW, INTAKE MANIFOLD COVER TO EXHAUST MANIFOLD BODY (1")
    SCREW, INTAKE MANIFOLD COVER TO EXHAUST MANIFOLD BODY (1")
  • 27
    22-36382 PLUG, PIPE - INTAKE MANIFOLD COVER
    PLUG, PIPE - INTAKE MANIFOLD COVER
  • 28
    16-49915 STUD, EXHAUST MANIFOLD BODY TO CYLINDER HEAD (1 1/2")
    STUD, EXHAUST MANIFOLD BODY TO CYLINDER HEAD (1 1/2")
  • 29
    10-21077 SCREW, EXHAUST MANIFOLD BODY TO CYLINDER HEAD (7/8")
    SCREW, EXHAUST MANIFOLD BODY TO CYLINDER HEAD (7/8")
  • 30
    12-20553 WASHER, EXHAUST MANOFOLD BODY STUD AND SCREW
    WASHER, EXHAUST MANOFOLD BODY STUD AND SCREW
  • 31
    13-35048 LOCKWASHER, EXHAUST MANIFOLD BODY STUD AND SCREW
    LOCKWASHER, EXHAUST MANIFOLD BODY STUD AND SCREW
  • 32
    11-46335 NUT, EXHAUST MANIFOLD BODY STUD
    NUT, EXHAUST MANIFOLD BODY STUD
  • 33
    54-33461 CLAMP, DRAIN HOSE TO EXHAUST MANIFOLD BODY
    CLAMP, DRAIN HOSE TO EXHAUST MANIFOLD BODY
  • 34
    10-32228 SCREW, DRAIN HOSE CLAMP TO EXHAUST MANIFOLD BODY (5/8")
    SCREW, DRAIN HOSE CLAMP TO EXHAUST MANIFOLD BODY (5/8")
  • 35
    22-32715 ELBOW, WATER INLET HOSE - EXHAUST MANIFOLD BODY
    ELBOW, WATER INLET HOSE - EXHAUST MANIFOLD BODY
  • 36
    32-47642 HOSE, WATER INLET-EXHAUST MANIFOLD BODY ELBOW TO DRIVE UNIT
    DRIVE UNIT (35")
    HOSE, WATER INLET-EXHAUST MANIFOLD BODY ELBOW TO DRIVE UNIT
    DRIVE UNIT (35")
  • 37
    54-815504310 CLAMP, WATER INLET HOSE FASTENING
    CLAMP, WATER INLET HOSE FASTENING
  • 38
    27-35152 GASKET, BAFFLE PLATE TO EXHAUST MANIFOLD BODY
    GASKET, BAFFLE PLATE TO EXHAUST MANIFOLD BODY
  • 39
    35151T PALTE, BAFFLE - EXHAUST MANIFOLD
    PALTE, BAFFLE - EXHAUST MANIFOLD
  • 40
    27-35154 GASKET, EXHAUST MANIFOLD COVER TO BAFFLE PLATE
    GASKET, EXHAUST MANIFOLD COVER TO BAFFLE PLATE
  • 41
    35153 COVER, EXHAUST MANIFOLD
    COVER, EXHAUST MANIFOLD
  • 42
    10-35385 SCREW,EXHAUST COVER AND BAFFLE PLATE TO EXHAUST MANIFOLD BOD
    BODY (1 3/4")
    SCREW,EXHAUST COVER AND BAFFLE PLATE TO EXHAUST MANIFOLD BOD
    BODY (1 3/4")
  • 43
    22-328022 PLUG, PIPE - EXHAUST MANIFOLD COVER
    PLUG, PIPE - EXHAUST MANIFOLD COVER
  • 44
    31463 CLAMP, WIRING HARNESS TO EXHAUST MANIFOLD BODY (5/8")
    CLAMP, WIRING HARNESS TO EXHAUST MANIFOLD BODY (5/8")
  • 45
    10-98253 SCREW, WIRING HARNESS CLAMP TO EXHAUST MANIFOLD COVER (1/2")
    SCREW, WIRING HARNESS CLAMP TO EXHAUST MANIFOLD COVER (1/2")
  • 46
    8M0084613 "D" WASHER, WIRING HARNESS CLAMP SCREW
    "D" WASHER, WIRING HARNESS CLAMP SCREW
  • 47
    32-47642 HOSE,DRAIN-WATER INLET COVER TO EXHAUST MANIFOLD
    BODY (27 3/4")
    HOSE,DRAIN-WATER INLET COVER TO EXHAUST MANIFOLD
    BODY (27 3/4")
  • 48
    54-815504310 CLAMP, DRAIN HOSE FASTENING
    CLAMP, DRAIN HOSE FASTENING
  • 49
    22-32715 ELBOW, DRAIN HOSE - EXHAUST ELBOW
    ELBOW, DRAIN HOSE - EXHAUST ELBOW
  • 50
    27-35146 GASKET, THERMOSTAT CONTAINER
    GASKET, THERMOSTAT CONTAINER
  • 51
    10-39970 SCREW, THERMOSTAT CONTAINER TO EXHAUST MANIFOLD BODY (1")
    SCREW, THERMOSTAT CONTAINER TO EXHAUST MANIFOLD BODY (1")
  • 52
    35145A1 CONTAINER, THERMOSTAT - EXHAUST MANIFOLD BODY
    CONTAINER, THERMOSTAT - EXHAUST MANIFOLD BODY
  • 53
    8M0089715 THERMOSTAT
    THERMOSTAT
  • 54
    27-35147 GASKET, EXHAUST ELBOW
    GASKET, EXHAUST ELBOW
  • 55
    35148A1 ELBOW, EXHAUST - THERMOSTAT CONTAINER
    ELBOW, EXHAUST - THERMOSTAT CONTAINER
  • 56
    22-32803 PLUG, PIPE - EXHAUST ELBOW
    PLUG, PIPE - EXHAUST ELBOW
  • 57
    10-39970 SCREW, EXHAUST ELBOW TO THERMOSTAT CONTAINER (LOWER) - 1"
    SCREW, EXHAUST ELBOW TO THERMOSTAT CONTAINER (LOWER) - 1"
  • 58
    10-35156 SCREW, EXHAUST ELBOW TO THERMOSTAT CONTAINER (1 1/4")
    SCREW, EXHAUST ELBOW TO THERMOSTAT CONTAINER (1 1/4")
  • 59
    11-24652 NUT, EXHAUST ELBOW SCREW
    NUT, EXHAUST ELBOW SCREW
  • 60
    32-8M0108355 H OSE, BLEED - BLEED TUBE TO WATER OUTLET ELBOW (2")
    H OSE, BLEED - BLEED TUBE TO WATER OUTLET ELBOW (2")
  • 61
    54-20386 CLAMP, BLEED HOSE FASTENING
    CLAMP, BLEED HOSE FASTENING
  • 62
    32-38063 TUBE, BLEED - BLEED HOSE TO THERMOSTAT COVER
    TUBE, BLEED - BLEED HOSE TO THERMOSTAT COVER
  • 63
    22-30174 ELBOW, BLEED TUBE TO THERMOSTAT CONTAINER
    ELBOW, BLEED TUBE TO THERMOSTAT CONTAINER
  • 64
    22-30177 NUT, COMPRESSION - BLEED TUBE ELBOW
    NUT, COMPRESSION - BLEED TUBE ELBOW
  • 65
    22-30175 SLEEVE, COMPRESSION - BLEED TUBE ELBOW
    SLEEVE, COMPRESSION - BLEED TUBE ELBOW
