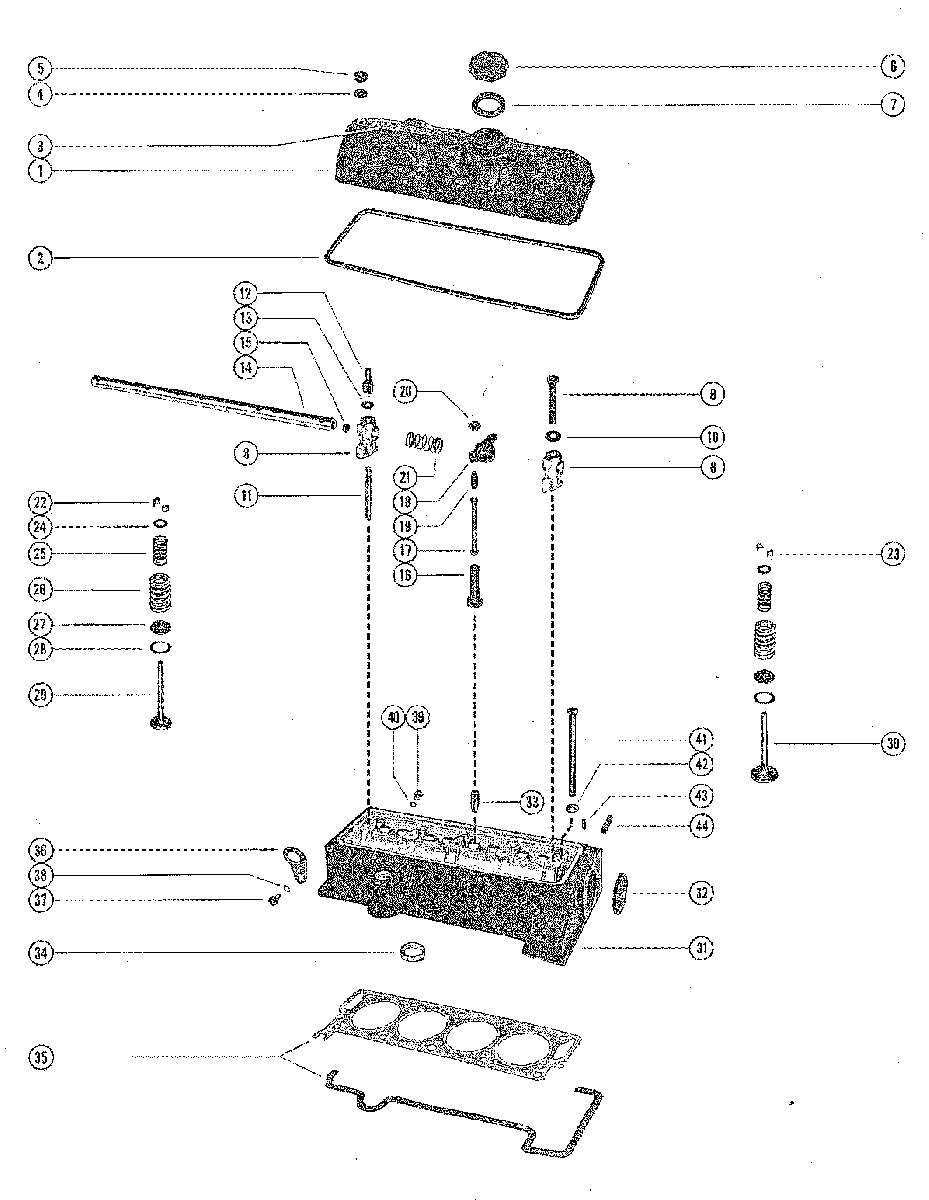

TOP COVER, ROCKER SHAFT AND CYLINDER HEAD для Mercruiser - 80 RENAULT 80 I/L4 1966-1969 2049045 THRU 2851423

  • №
    Артикул
    Название
  • 1
    46558 COVER, TOP
    COVER, TOP
  • 2
    27-46559 GASKET, TOP COVER
    GASKET, TOP COVER
  • 3
    37-45673 DECAL, TOP COVER
    DECAL, TOP COVER
  • 3
    37-46753 DECAL, TOP COVER (EXPORT ENGINES ONLY)
    DECAL, TOP COVER (EXPORT ENGINES ONLY)
  • 4
    27-29586 WASHER, TOP COVER FASTENING NUT
    WASHER, TOP COVER FASTENING NUT
  • 5
    11-46569 NUT, TOP COVER FASTENING
    NUT, TOP COVER FASTENING
  • 6
    46556 CAP, OIL FILLER
    CAP, OIL FILLER
  • 7
    27-58535 GASKET, OIL FILLER CAP
    GASKET, OIL FILLER CAP
  • 8
    46586 SUPPORT, ROCKER SHAFT
    SUPPORT, ROCKER SHAFT
  • 9
    10-46583 SCREW, ROCKER SHAFT SUPPORT TO CYLINDER HEAD (67MM)
    SCREW, ROCKER SHAFT SUPPORT TO CYLINDER HEAD (67MM)
  • 10
    12-46584 WASHER, ROCKER SHAFT SUPPORT SCREW
    WASHER, ROCKER SHAFT SUPPORT SCREW
  • 11
    16-46562 STUD, ROCKER SHAFT SUPPORT TO CYLINDER HEAD
    STUD, ROCKER SHAFT SUPPORT TO CYLINDER HEAD
  • 12
    10-46581 SCREW, MOUNTING- TOP COVER
    SCREW, MOUNTING- TOP COVER
  • 13
    12-46584 WASHER, TOP COVER MOUNTING SCREW
    WASHER, TOP COVER MOUNTING SCREW
  • 14
    46578 SHAFT, ROCKER
    SHAFT, ROCKER
  • 15
    19-46577 WELCH PLUG, ROCKER SHAFT
    WELCH PLUG, ROCKER SHAFT
  • 16
    46593 LIFTER, PUSH ROD (12MM)
    LIFTER, PUSH ROD (12MM)
  • 16
    46594 LIFTER, PUSH ROD (12.2MM)
    LIFTER, PUSH ROD (12.2MM)
  • 17
    46591 ROD, PUSH
    ROD, PUSH
  • 18
    46582 ARM, ROCKER-INLET
    ARM, ROCKER-INLET
  • 18
    46587 ARM, ROCKER- EXHAUST
    ARM, ROCKER- EXHAUST
  • 19
    10-46590 SCREW, ADJUSTING-PUSH ROD
    SCREW, ADJUSTING-PUSH ROD
  • 20
    11-46585 NUT, LOCK- PUSH ROD ADJUTING SCREW
    NUT, LOCK- PUSH ROD ADJUTING SCREW
  • 21
    24-46588 SPRING, ROCLKER SHAFT
    SPRING, ROCLKER SHAFT
  • 22
    28-46580 KEY, EXHAUST VALVE (DOUBLE GROOVE)
    KEY, EXHAUST VALVE (DOUBLE GROOVE)
  • 23
    28-46579 KEY, INLET VALE (SINGLE GROOVE)
    KEY, INLET VALE (SINGLE GROOVE)
  • 24
    46589 CAP,VALVE SPRING (UPPER)
    CAP,VALVE SPRING (UPPER)
  • 25
    24-46683 SPRING, VALVE (INNER)
    SPRING, VALVE (INNER)
  • 26
    24-46684 SPRING, VALVE (OUTER)
    SPRING, VALVE (OUTER)
  • 27
    46592 VCAP, VALVE SPRING (LOWER)
    VCAP, VALVE SPRING (LOWER)
  • 28
    12-46595 WASHER, VALVE SPRING (LOWER)
    WASHER, VALVE SPRING (LOWER)
  • 29
    46682 VALVE, EXHAUST (SMALL HEAD)
    VALVE, EXHAUST (SMALL HEAD)
  • 30
    46681 VALVE, INLET (LARGE HEAD)
    VALVE, INLET (LARGE HEAD)
  • 31
    940-3001 CYLINDER HEAD ASSEMBLY
    CYLINDER HEAD ASSEMBLY
  • 32
    19-46563 PLUG, EXPANSION - CYLINDER HEAD
    PLUG, EXPANSION - CYLINDER HEAD
  • 33
    46561 VALVE GUIDE (13.10MM)
    VALVE GUIDE (13.10MM)
  • 33
    46560 VALVE GUIDE (13.25MM)
    VALVE GUIDE (13.25MM)
  • 34
    46697 VALVE SEAT, EXHAUST- CYLINDER HEAD
    VALVE SEAT, EXHAUST- CYLINDER HEAD
  • 34
    46698 VALVE SEAT, INLET- CYLINDER HEAD
    VALVE SEAT, INLET- CYLINDER HEAD
  • 35
    27-60847A1 GASKET KIT, CYLINDER HEAD
    GASKET KIT, CYLINDER HEAD
  • 36
    54-72531 EYE, LIFTING-CYLINDER HEAD
    EYE, LIFTING-CYLINDER HEAD
  • 37
    10-45628 SCREW, LIFTING EYE TO CYLINDER HEAD (18MM)
    SCREW, LIFTING EYE TO CYLINDER HEAD (18MM)
  • 38
    12-30283 WASHER, LIFTING EYE SCREW
    WASHER, LIFTING EYE SCREW
  • 39
    19-46508 PLUG, CYLINDER JHEAD
    PLUG, CYLINDER JHEAD
  • 40
    27-37105 GASKET, CYLINDER HEAD PLUG
    GASKET, CYLINDER HEAD PLUG
  • 41
    10-46568 BOLT, CYLINDER BHEAD TO CYLINDER BLOCK (155MM)
    BOLT, CYLINDER BHEAD TO CYLINDER BLOCK (155MM)
  • 42
    12-46567 WASHER, CYLINDER HEAD BOLT
    WASHER, CYLINDER HEAD BOLT
  • 43
    17-46691 PIN, LOCATING- CYLINDER HEAD
    PIN, LOCATING- CYLINDER HEAD
  • 44
    22-46690 CONNECTOR, CYLINDER HEAD
    CONNECTOR, CYLINDER HEAD
