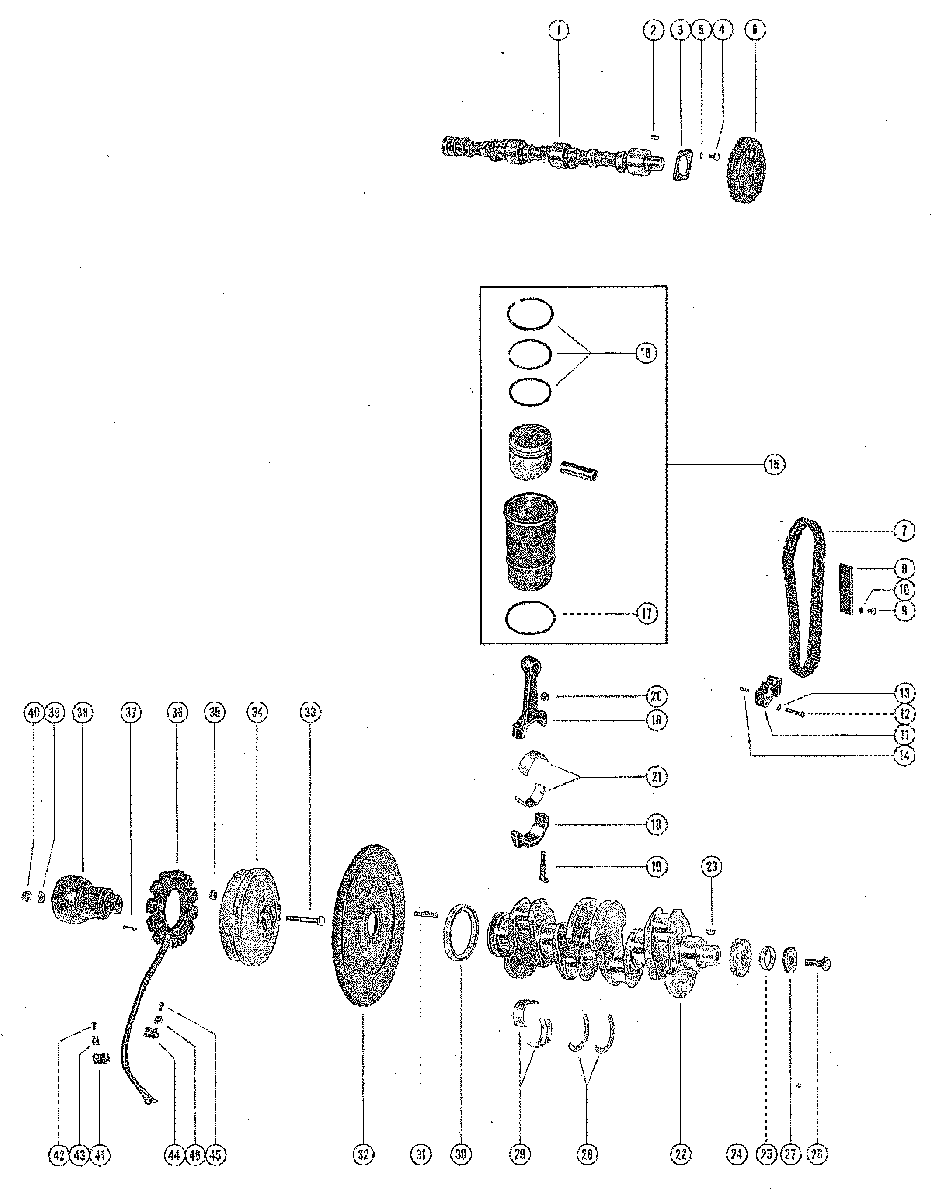

CAMSHAFT, CRANKSHAFT, PISTONS, FLYWHEEL AND STATOR для Mercruiser - 80 RENAULT 80 I/L4 1966-1969 2049045 THRU 2851423

  • №
    Артикул
    Название
  • 1
    435-4410 CAMSHAFT
    CAMSHAFT
  • 2
    28-37047 KEY, CAMSHAFT
    KEY, CAMSHAFT
  • 3
    46596 PLATE, THRUST-CAMSHAFT
    PLATE, THRUST-CAMSHAFT
  • 4
    10-46532 SCREW, THRUST PLATE TO CYLINDER BLOCK (12MM)
    SCREW, THRUST PLATE TO CYLINDER BLOCK (12MM)
  • 5
    12-37175 WASHER, THRUST PLATE SCREW
    WASHER, THRUST PLATE SCREW
  • 6
    43-46576 GEAR, TIMING-CAMSHAFT
    GEAR, TIMING-CAMSHAFT
  • 7
    46573 CHAIN, TIMING-CAMSHAFT AND CRANKSHAFT TIMING GEARS
    CHAIN, TIMING-CAMSHAFT AND CRANKSHAFT TIMING GEARS
  • 8
    46574 PLATE, GUIDE-TIMING CHAIN
    SERIAL 00000000-02322195
    PLATE, GUIDE-TIMING CHAIN
    SERIAL 00000000-02322195
  • 9
    10-46575 SCREW, GUIDE PLATE TO CYLINDER BLOCK (10MM)
    SERIAL 00000000-02322195
    SCREW, GUIDE PLATE TO CYLINDER BLOCK (10MM)
    SERIAL 00000000-02322195
  • 10
    12-37175 WASHER, GUIDE PLATE SCREW
    SERIAL 00000000-02322195
    WASHER, GUIDE PLATE SCREW
    SERIAL 00000000-02322195
  • 8
    48097 PALTE, GUIDE-TIMING CHAIN
    PART OF B-845-3304A1 CYLINDER BLOCK ASSEMBLY SERIAL 02322196-09999999
    PALTE, GUIDE-TIMING CHAIN
    PART OF B-845-3304A1 CYLINDER BLOCK ASSEMBLY SERIAL 02322196-09999999
  • 9
    10-48096 SCREW, GUIDE PLATE TO CYLINDER BLOCK (10MM)
    PART OF B-845-3304A1 CYLINDER BLOCK ASSEMBLY SERIAL 02322196-09999999
    SCREW, GUIDE PLATE TO CYLINDER BLOCK (10MM)
    PART OF B-845-3304A1 CYLINDER BLOCK ASSEMBLY SERIAL 02322196-09999999
  • 10
    12-46616 WASHER, GUIDE PLATE SCREW
    PART OF B-845-3304A1 CYLINDER BLOCK ASSEMBLY SERIAL 02322196-09999999
    WASHER, GUIDE PLATE SCREW
    PART OF B-845-3304A1 CYLINDER BLOCK ASSEMBLY SERIAL 02322196-09999999
  • 11
    46598 TENSION BLOCK ASSEMBLY, TIMING CHAIN
    TENSION BLOCK ASSEMBLY, TIMING CHAIN
  • 12
    10-46599 SCREW, TENSHIONER BLOCK TO CYLINDER BLOCK (35MM)
    SCREW, TENSHIONER BLOCK TO CYLINDER BLOCK (35MM)
  • 13
    13-46600 LOCKWASHER, TENSIONER BLOCK SCREW
    LOCKWASHER, TENSIONER BLOCK SCREW
  • 14
    46597 FILTER, TENSIONER BLOCK
    FILTER, TENSIONER BLOCK
  • 15
    740-3004 PISTON AND PISTON LINER ASSEMBLY
    PISTON AND PISTON LINER ASSEMBLY
  • 16
    39-46548A1 PISTON RING ASSEMBLY
    PISTON RING ASSEMBLY
  • 17
    27-46525A1 GASKET ASSEMBLY, CYLINDER SLEEVE
    GASKET ASSEMBLY, CYLINDER SLEEVE
  • 18
    616-4348 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 19
    10-46546 SCREW, CONNECTING ROD CAP (55MM)
    SCREW, CONNECTING ROD CAP (55MM)
  • 20
    11-46547 NUT, CONNECTING ROD CAP SCREW,
    NUT, CONNECTING ROD CAP SCREW,
  • 21
    23-46551 BEARING SET (4 PAIRS), CONNECTING ROD (48MM)-STANDARD
    BEARING SET (4 PAIRS), CONNECTING ROD (48MM)-STANDARD
  • 21
    23-46693 BEARING SET (4 PAIRS), CONNECTING ROD (47.75MM)
    BEARING SET (4 PAIRS), CONNECTING ROD (47.75MM)
  • 21
    23-46694 BEARING SET (4 PAIRS), CONNECTING ROD (47.50MM)
    BEARING SET (4 PAIRS), CONNECTING ROD (47.50MM)
  • 22
    434-3006 CRANKSHAFT
    SERIAL 00000000-02322195
    CRANKSHAFT
    SERIAL 00000000-02322195
  • 22
    434-3700 CRANKSHAFT,
    SERIAL 02322196-09999999
    CRANKSHAFT,
    SERIAL 02322196-09999999
  • 23
    28-37116 KEY, CRANKSHAFT
    KEY, CRANKSHAFT
  • 24
    43-46545 GEAR, TIMING-CRANKSHAFT
    GEAR, TIMING-CRANKSHAFT
  • 25
    23-46544 SLEEVE, CRANKSHAFT TIMING GEAR
    SLEEVE, CRANKSHAFT TIMING GEAR
  • 26
    10-46542 SCREW, TIMING GEAR TO CRANKSHAFT (30MM)
    SCREW, TIMING GEAR TO CRANKSHAFT (30MM)
  • 27
    12-46543 WASHER, THRUST-TIMING GEAR SCREW
    WASHER, THRUST-TIMING GEAR SCREW
  • 28
    15-46554 SHIM, SPACER-MAIN BEARING (2.95MM)
    SHIM, SPACER-MAIN BEARING (2.95MM)
  • 28
    15-46553 SHIM, SPACER-MAIN BEARING (2.90MM)
    SHIM, SPACER-MAIN BEARING (2.90MM)
  • 28
    15-46552 SHIM, SPACER-MAIN BEARING (2.80MM)
    SHIM, SPACER-MAIN BEARING (2.80MM)
  • 29
    23-46555 BEARING SET (5 PAIRS), CRANKSHAFT (54.80MM)-STANDARD
    BEARING SET (5 PAIRS), CRANKSHAFT (54.80MM)-STANDARD
  • 29
    23-46695 BEARING SET (5 PAIRS), CRANKSHAFT (54.55MM)
    BEARING SET (5 PAIRS), CRANKSHAFT (54.55MM)
  • 29
    23-46696 BEARING SET (5 PAIRS), CRANKSHAFT (54.30MM)
    BEARING SET (5 PAIRS), CRANKSHAFT (54.30MM)
  • 30
    26-46541 SEAL, REAR MAIN-CRANKSHAFT
    SEAL, REAR MAIN-CRANKSHAFT
  • 31
    16-45636 STUD, FLYWHEEL TO CRANKSHAFT
    SERIAL 00000000-02322195
    STUD, FLYWHEEL TO CRANKSHAFT
    SERIAL 00000000-02322195
  • 32
    228-3005 FLYWHEEL ASSEMBLY, CRANKSHAFT
    SERIAL 00000000-02322195
    FLYWHEEL ASSEMBLY, CRANKSHAFT
    SERIAL 00000000-02322195
  • 33
    10-29096 SCREW, ENGINE COUPLING TO FLYWHEEL (2 1/2")
    SERIAL 00000000-02322195
    SCREW, ENGINE COUPLING TO FLYWHEEL (2 1/2")
    SERIAL 00000000-02322195
  • 34
    231-4037A1 FLYWHEEL ASSEMBLY, ALTERNATOR
    SERIAL 00000000-02322195
    FLYWHEEL ASSEMBLY, ALTERNATOR
    SERIAL 00000000-02322195
  • 35
    11-38270 NUT, FLYWHEEL TO CRANKSHAFT STUD
    SERIAL 00000000-02322195
    NUT, FLYWHEEL TO CRANKSHAFT STUD
    SERIAL 00000000-02322195
  • 31
    16-45636 STUD, FLYWHEEL TO CRANKSHAFT
    SERIAL 02322196-09999999
    STUD, FLYWHEEL TO CRANKSHAFT
    SERIAL 02322196-09999999
  • 32
    228-3699 FLYWHEEL ASSEMBLY, CRANKSHAFT
    SERIAL 02322196-09999999
    FLYWHEEL ASSEMBLY, CRANKSHAFT
    SERIAL 02322196-09999999
  • 33
    10-29096 SCREW, ENGINE COUPLING TO FLYWHEEL (2 1/2")
    SERIAL 02322196-09999999
    SCREW, ENGINE COUPLING TO FLYWHEEL (2 1/2")
    SERIAL 02322196-09999999
  • 34
    231-4037A1 FLYWHEEL ASSEMBLY, ALTERNATOR
    SERIAL 02322196-09999999
    FLYWHEEL ASSEMBLY, ALTERNATOR
    SERIAL 02322196-09999999
  • 35
    11-38270 NUT, FLYWHEEL TO CRANKSHAFT STUD
    SERIAL 02322196-09999999
    NUT, FLYWHEEL TO CRANKSHAFT STUD
    SERIAL 02322196-09999999
  • 36
    398-2932 STATOR, ALTERNATOR
    STATOR, ALTERNATOR
  • 37
    10-68918 SCREW, STATOR TO FLYWHEEL HOUSING (1")
    SCREW, STATOR TO FLYWHEEL HOUSING (1")
  • 38
    45621A1 ENGINE COUPLING ASSEMBLY
    ENGINE COUPLING ASSEMBLY
  • 39
    12-46132 WASHER, ENGIEN COUPLING SCREW
    WASHER, ENGIEN COUPLING SCREW
  • 40
    11-23161 NUT, ENGINE COUPLING SCREW
    NUT, ENGINE COUPLING SCREW
  • 41
    54-22690 CLIP, STATOR AND WIRING HARNESS LEADS TO FLYWHEEL HOUSING (1)
    CLIP, STATOR AND WIRING HARNESS LEADS TO FLYWHEEL HOUSING (1)
  • 42
    10-69022 SCREW, STATOR AND WIRING HARNESS CLIP ATTACHING (1/2")
    SCREW, STATOR AND WIRING HARNESS CLIP ATTACHING (1/2")
  • 43
    8M0084613 "D" WASHER, STATOR AND WIRING HARNESS CLIP SCREW
    "D" WASHER, STATOR AND WIRING HARNESS CLIP SCREW
  • 44
    54-45806 CLIP, STATOR LEADS TO FLYWHEEL HOUSING
    CLIP, STATOR LEADS TO FLYWHEEL HOUSING
  • 45
    10-31903 SCREW, STATOR LEADS CLIP ATTACHING (3/8")
    SCREW, STATOR LEADS CLIP ATTACHING (3/8")
  • 46
    8M0084613 "D" WASHER, STATOR LEADS CLIP SCREW
    "D" WASHER, STATOR LEADS CLIP SCREW
