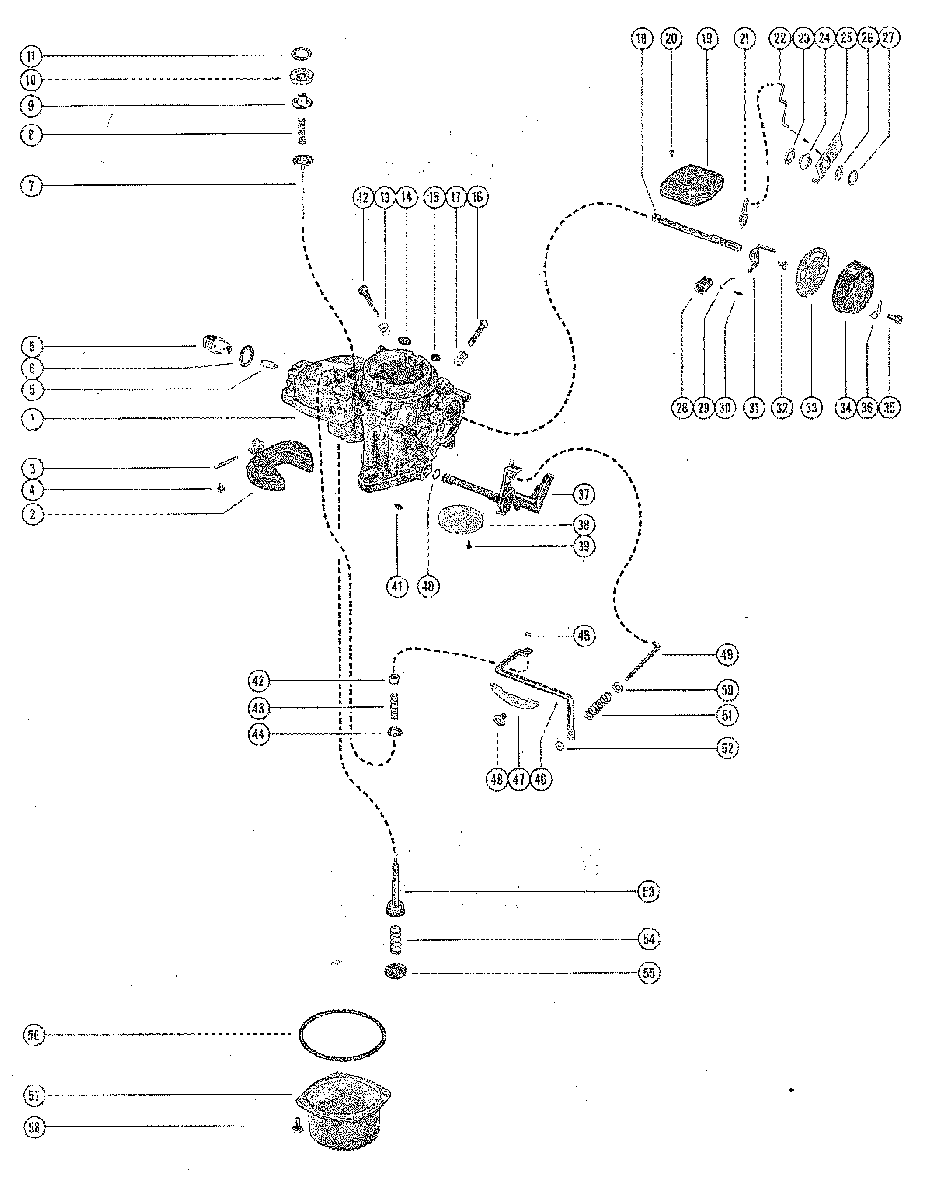

CARBURETOR ASSEMBLY для Mercruiser - 80 RENAULT 80 I/L4 1966-1969 2049045 THRU 2851423

№

Артикул

Название
1

1346-2770 CARBURETOR ASSEMBLY COMPLETE

CARBURETOR ASSEMBLY COMPLETE
2

1398-3096 FLOAT ASSEMBLY

FLOAT ASSEMBLY

1398-3098 >PIN, FLOAT LEVER

>PIN, FLOAT LEVER

Производитель

Mercury-Mercruiser

4

1398-3115 SCREW, FLOAT LEVER PIN TO CARBURETOR

SCREW, FLOAT LEVER PIN TO CARBURETOR

1398-3099 *INLET NEEDLE AND SEAT ASSEMBLY

*INLET NEEDLE AND SEAT ASSEMBLY

Производитель

Mercury-Mercruiser

6

N.S.S. *GASKET, INLET NEEDLE AND SEAT

*GASKET, INLET NEEDLE AND SEAT
7

N.S.S. *DIAPHRAGM, STEP-UP ROD

*DIAPHRAGM, STEP-UP ROD
8

N.S.S. *SPRING, STEP-UP ROD DIAPHRAGM - UPPER

*SPRING, STEP-UP ROD DIAPHRAGM - UPPER
9

N.S.S. *COVER, STEP-UP ROD DIAPHRAGM

*COVER, STEP-UP ROD DIAPHRAGM
10

N.S.S. *RETAINER, STEP-UP ROD DIAPHRAGM

*RETAINER, STEP-UP ROD DIAPHRAGM
11

N.S.S. *WASHER, RETAINER- STEP-UP ROD DIAPHRAGM COVER

*WASHER, RETAINER- STEP-UP ROD DIAPHRAGM COVER
12

1398-3100 SCREW, IDLE ADJUSTMENT

SCREW, IDLE ADJUSTMENT
13

1398-3105 SPRING, IDLE ADJUSTMENT SCREW

SPRING, IDLE ADJUSTMENT SCREW
14

1398-3133 PLUG, IDLE PORT-CARBURETOR

PLUG, IDLE PORT-CARBURETOR
15

1398-3134 WELCH PLUG, FUEL WELL- CARBURETOR

WELCH PLUG, FUEL WELL- CARBURETOR
16

1398-3117 SCREW, THROTTLE ADJUSTING

SCREW, THROTTLE ADJUSTING
17

1398-3104 SPRING, THROTTLE ADJUSTING SCREW

SPRING, THROTTLE ADJUSTING SCREW
18

1398-3093 SHAFT,CHOKE

SHAFT,CHOKE
19

1398-3092 VALVE, CHOKE-CHOKE SHAFT

VALVE, CHOKE-CHOKE SHAFT
20

1398-3119 SCREW, CHOKE VALVE TO CHOKE SHAFT

SCREW, CHOKE VALVE TO CHOKE SHAFT
21

1398-3094 LEVER, CHOKE- CHOKE SHAFT

LEVER, CHOKE- CHOKE SHAFT
22

1398-3123 ROD, FAST IDLE CONNECTOR

ROD, FAST IDLE CONNECTOR
23

1398-3127 WASHER, FAST IDLE CALM COLLAR

WASHER, FAST IDLE CALM COLLAR
24

1398-3102 COLLAR, FAST IDLE CALM

COLLAR, FAST IDLE CALM
25

1398-3132 CAM, FAST IDLE

CAM, FAST IDLE
26

1398-3125 WASHER, FAST IDLE CAM

WASHER, FAST IDLE CAM
27

1398-3114 RETAINER, FAST IDLE CAM TO CARBURETOR

RETAINER, FAST IDLE CAM TO CARBURETOR
28

1398-3129 PISTON, CHOKE

PISTON, CHOKE
29

1398-3124 LINK, CHOKE PISTON TO LEVER

LINK, CHOKE PISTON TO LEVER
30

1398-3128 PIN, LINK TO CHOKE PISTON

PIN, LINK TO CHOKE PISTON
31

1398-3095 LEVER, CHOKE PISTON

LEVER, CHOKE PISTON
32

1398-3113 SCREW, CHOKE PISTON LEVER TO CHOKE SHAFT

SCREW, CHOKE PISTON LEVER TO CHOKE SHAFT
33

N.S.S. *GASKET, COIL HOUSING

*GASKET, COIL HOUSING
34

1398-3131 COIL HOUSING ASSEMBLY

COIL HOUSING ASSEMBLY
35

1398-3112 SCREW, COIL HOUSING TO CARBURETOR

SCREW, COIL HOUSING TO CARBURETOR
36

1398-3108 RETAINER, COIL HOUSING SCREW

RETAINER, COIL HOUSING SCREW
37

1398-3091 SHAFT AND LOWER ASSEMBLY, THROTTLE

SHAFT AND LOWER ASSEMBLY, THROTTLE
38

1398-3090 VALVE, THROTTLE- THROTTLE SHAFT AND LEVER

VALVE, THROTTLE- THROTTLE SHAFT AND LEVER
39

1398-3119 SCREW, THROTTLE VALVE TO THROTTLE SHAFT AND LEVER

SCREW, THROTTLE VALVE TO THROTTLE SHAFT AND LEVER
40

1398-3130 "O" RING, THROTTLE SHAFT AND LEVER

"O" RING, THROTTLE SHAFT AND LEVER
41

1398-3101 WELCH PLUG, CHOKE PISTON-CARBURETOR

WELCH PLUG, CHOKE PISTON-CARBURETOR
42

1398-3121 BUSHING, PUMP

BUSHING, PUMP
43

N.S.S. *SPRING, PUMP- UPPER

*SPRING, PUMP- UPPER
44

1398-3126 WASHER, PUMP (UPPER)

WASHER, PUMP (UPPER)

1398-3109 *RETAINER, PUMP TO PUMP ARM

*RETAINER, PUMP TO PUMP ARM

Производитель

Mercury-Mercruiser

46

1398-3103 ARM, PUMP

ARM, PUMP
47

1398-3110 RETAINER, PUMP ARM

RETAINER, PUMP ARM
48

1398-3116 SCREW, PUMP ARM RETAINER TO CARBURETOR

SCREW, PUMP ARM RETAINER TO CARBURETOR
49

1398-3122 LINK, PUMP ARM CONNECTOR

LINK, PUMP ARM CONNECTOR
50

1398-3111 RETAINER, PUMP ARM CONNECTOR LINK

RETAINER, PUMP ARM CONNECTOR LINK
51

1398-3107 SPRING, PUMP ARM CONNECTOR LINK

SPRING, PUMP ARM CONNECTOR LINK
52

1398-3120 NUT, PUMP ARM CONNECTOR LINK

NUT, PUMP ARM CONNECTOR LINK
53

N.S.S. *PUMP ASSEMBLY, CARBURETOR

*PUMP ASSEMBLY, CARBURETOR
54

1398-3106 SRPING, PUMP- LOWER

SRPING, PUMP- LOWER
55

N.S.S. *RETAINER, PUMP-LOWER

*RETAINER, PUMP-LOWER
56

N.S.S. *GASKET, FLOAT BOWL

*GASKET, FLOAT BOWL
57

1398-3097 BOWL, FLOAT- CARBURETOR

BOWL, FLOAT- CARBURETOR
58

1398-3118 SCREW, FLOAT BOWL TO CARBURETOR

SCREW, FLOAT BOWL TO CARBURETOR
58

1398-3089 REPAIR PARTS KIT, CARBURETOR

REPAIR PARTS KIT, CARBURETOR
