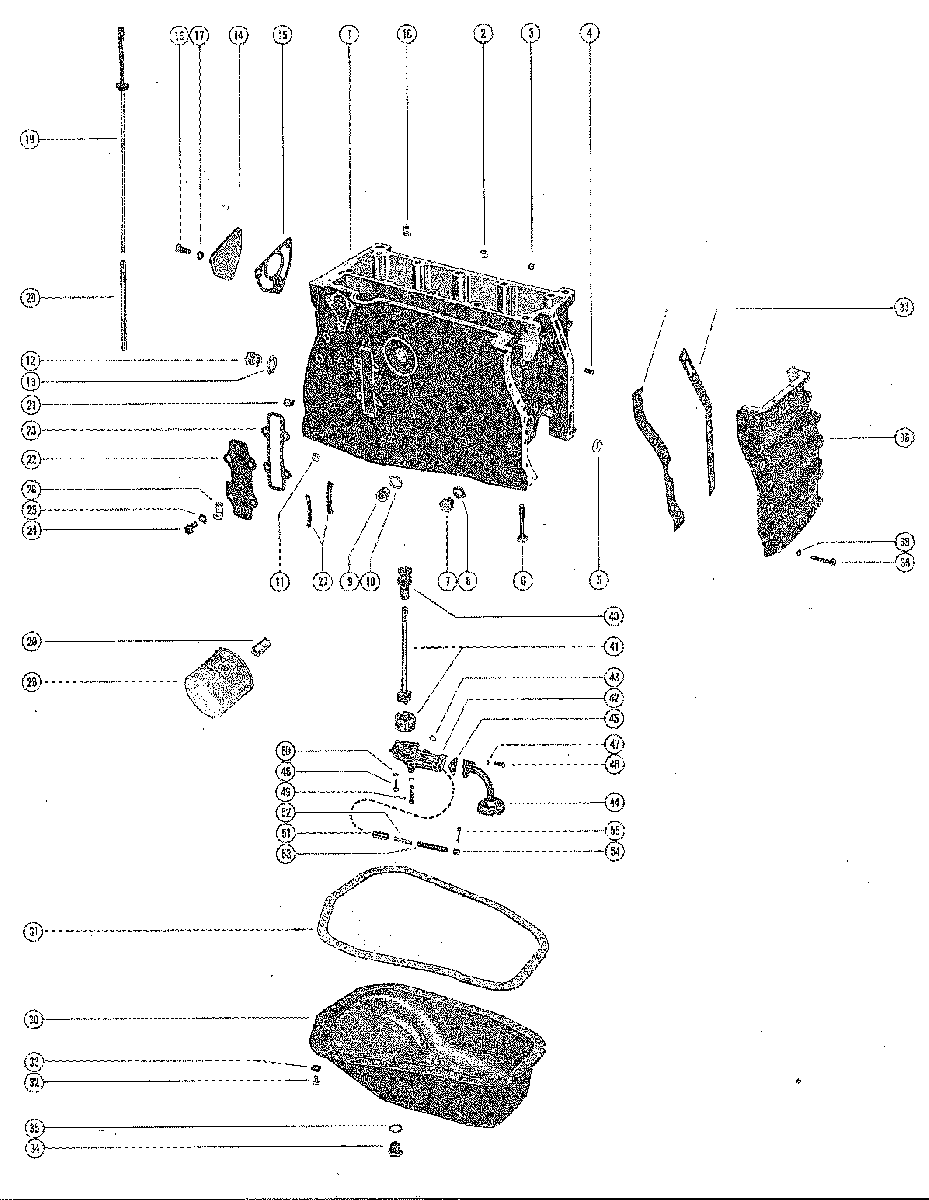

CYLINDER BLOCK, OIL PAN AND OIL PUMP для Mercruiser - 80 RENAULT 80 I/L4 1966-1969 2049045 THRU 2851423

  • №
    Артикул
    Название
  • 1
    845-3304A1 CYLINDER BLOCK ASSEMBLY (SERIAL #2322195 AND BELOW)
    SERIAL 00000000-02322195
    CYLINDER BLOCK ASSEMBLY (SERIAL #2322195 AND BELOW)
    SERIAL 00000000-02322195
  • 1
    845-3304A1 CYLINDER BLKOCK ASSEMBLY (SERIAL # 2322196 AND UP)
    SERIAL 02322196-09999999
    CYLINDER BLKOCK ASSEMBLY (SERIAL # 2322196 AND UP)
    SERIAL 02322196-09999999
  • 2
    19-46516 PLUG, EXPANSION- CYLINDER BLOCK (TOP)
    PLUG, EXPANSION- CYLINDER BLOCK (TOP)
  • 3
    19-46515 PLUG, EXPANSION- CYLINDER BLOCK (TOP)
    PLUG, EXPANSION- CYLINDER BLOCK (TOP)
  • 4
    10-46502 SCREW, PLUG- CYLINDER BLOCK
    SCREW, PLUG- CYLINDER BLOCK
  • 5
    19-46503 PLUG, EXPANSION- CYLINDER BLOCK (FRONT)
    PLUG, EXPANSION- CYLINDER BLOCK (FRONT)
  • 6
    10-46504 BOLT, ,MAIN BEARING CAP TO CYLINDER BLOCK (67.5MM)
    BOLT, ,MAIN BEARING CAP TO CYLINDER BLOCK (67.5MM)
  • 7
    10-46506 PLUG, CYLINDER BLOCK
    PLUG, CYLINDER BLOCK
  • 8
    12-46505 WASHER, CYLINDER BLOCK PLUG
    WASHER, CYLINDER BLOCK PLUG
  • 9
    19-46508 PLUG, CYLINDER BLOCK
    PLUG, CYLINDER BLOCK
  • 10
    12-46507 WASHER, CYLINDER BLOCK PLUG
    WASHER, CYLINDER BLOCK PLUG
  • 11
    19-46509 PLUGM EXPANSION- CYLINDER BLOCK (SIDE)
    PLUGM EXPANSION- CYLINDER BLOCK (SIDE)
  • 12
    19-46512 PLUG, CYLINDER BLOCK- REAR
    PLUG, CYLINDER BLOCK- REAR
  • 13
    12-46513 WASHER, CYLINDER BLOCK REAR PLUG
    WASHER, CYLINDER BLOCK REAR PLUG
  • 14
    46537 COVER, CAMSHAFT HOLE- CYLINDER BLOCK
    COVER, CAMSHAFT HOLE- CYLINDER BLOCK
  • 15
    27-46524 GASKET, CAMSHAFT HOLE COVER
    GASKET, CAMSHAFT HOLE COVER
  • 16
    10-46517 SCREW, CAMSHAFT HOLE COVER TO CYLINDER BLOCK (20MM)
    SCREW, CAMSHAFT HOLE COVER TO CYLINDER BLOCK (20MM)
  • 17
    13-37141 LOCKWASHER,CAMSHAFT HOLE COVER SCREW
    LOCKWASHER,CAMSHAFT HOLE COVER SCREW
  • 18
    23-37127 BUSHING, OIL PUMP SHAFT- CYLINDER BLOCK
    BUSHING, OIL PUMP SHAFT- CYLINDER BLOCK
  • 19
    46500 GAUGE, OIL LEVEL (DIP STICK)
    GAUGE, OIL LEVEL (DIP STICK)
  • 20
    32-46501 TUBE, OIL LEVEL GAUGE- CYLINDER BLOCK
    TUBE, OIL LEVEL GAUGE- CYLINDER BLOCK
  • 21
    23-46689 SPACER, ALIGNMENT- CYLINDER BLOCK TO FLYWHEEL HOUSING
    SPACER, ALIGNMENT- CYLINDER BLOCK TO FLYWHEEL HOUSING
  • 22
    46511 COVER, INSPECTION- CYLINDER BLOCK
    COVER, INSPECTION- CYLINDER BLOCK
  • 23
    27-46510 GASKET, INSPECTION COVER
    GASKET, INSPECTION COVER
  • 24
    10-46517 SCREW, INSPECTION COVER TO CYLONDER BLOCK (20MM)
    SCREW, INSPECTION COVER TO CYLONDER BLOCK (20MM)
  • 25
    13-37141 EWASHER, INSPECTION COVER SCREW
    EWASHER, INSPECTION COVER SCREW
  • 26
    54-38537 CLIP, INSPECTION COVER SCREW- WIRING HARNESS LEADS
    CLIP, INSPECTION COVER SCREW- WIRING HARNESS LEADS
  • 27
    23-46527A1 SPACER ASSEMNBLY, MAIN BEARING CAP
    SPACER ASSEMNBLY, MAIN BEARING CAP
  • 28
    803470Q OILO FILTER
    OILO FILTER
  • 29
    37125 ADAPTOR, OIL FILTER TO CYLINDER BLOCK
    ADAPTOR, OIL FILTER TO CYLINDER BLOCK
  • 30
    46529 OIL PAN
    OIL PAN
  • 31
    27-46530 GASKET, OIL PAN
    GASKET, OIL PAN
  • 32
    10-46532 SCREW, OIL PAN TO CYLINDER BLOCK (15MM)
    SCREW, OIL PAN TO CYLINDER BLOCK (15MM)
  • 32
    10-46533 SCREW, OIL PAN TO CYLINDER BLOCK (12MM)
    SCREW, OIL PAN TO CYLINDER BLOCK (12MM)
  • 33
    12-46531 WASHER, OIL PAN SCREW
    WASHER, OIL PAN SCREW
  • 34
    22-46534 PLUG, DRAIN-OIL PAN
    PLUG, DRAIN-OIL PAN
  • 35
    27-37105 GASKET, OIL PAN DRAIN PLUG
    GASKET, OIL PAN DRAIN PLUG
  • 36
    58520 COVER, TIMING
    COVER, TIMING
  • 37
    27-46536 GASKET, TIMING COVER
    GASKET, TIMING COVER
  • 38
    10-46538 SCREW, TIMING COVER TO CYLINDER BLOCK (40MM)
    SCREW, TIMING COVER TO CYLINDER BLOCK (40MM)
  • 38
    10-46539 SCREW, TIMING COVER TO CYLINDER BLOCK (30MM)
    SCREW, TIMING COVER TO CYLINDER BLOCK (30MM)
  • 39
    12-46540 WASHER, TIMING COVER SCREW
    WASHER, TIMING COVER SCREW
  • 40
    435-4410 SHAFT, PINION-OIL PUMP SHAFT TO DISTRIBUTOR
    SHAFT, PINION-OIL PUMP SHAFT TO DISTRIBUTOR
  • 41
    47166 SHAFT, OIL PUMMP BVODY TO PINION SHAFT
    SHAFT, OIL PUMMP BVODY TO PINION SHAFT
  • 42
    58562 BODY, OIL PUMP
    BODY, OIL PUMP
  • 43
    19-46606 PLUG, OIL PUMP BODY
    PLUG, OIL PUMP BODY
  • 44
    46608 TUBE, PICK-UP
    TUBE, PICK-UP
  • 45
    27-58565 GASKET, PICK-UP TUBE
    GASKET, PICK-UP TUBE
  • 46
    10-46609 SCREW, PICK UP TUBE TO OIL PUMP BODY (20MM)
    SCREW, PICK UP TUBE TO OIL PUMP BODY (20MM)
  • 47
    12-46610 WASHER, PICK-UP TUBE SCREW
    WASHER, PICK-UP TUBE SCREW
  • 48
    10-46617 SCREW, OIL PUMP BODY TO CYLINDER BLOCK (25MM)
    SCREW, OIL PUMP BODY TO CYLINDER BLOCK (25MM)
  • 49
    10-46615 SCREW, OIL PUMP BODY TO CYLINDER BLOCK (45MM)
    SCREW, OIL PUMP BODY TO CYLINDER BLOCK (45MM)
  • 50
    12-46616 WASHER, OIL PUMP BODY SCREW
    WASHER, OIL PUMP BODY SCREW
  • 51
    23-46614 SLEEVE, OIL PRESSURE RELEASE VALVE
    SLEEVE, OIL PRESSURE RELEASE VALVE
  • 52
    17-46613 PIN, GUIDE-OIL PRESSURE RELEASE VALVE
    PIN, GUIDE-OIL PRESSURE RELEASE VALVE
  • 53
    24-46612 SPRING, TENSION-OIL PRESSURE RELEASE VALVE
    SPRING, TENSION-OIL PRESSURE RELEASE VALVE
  • 54
    46611 CAP, OIL PRESSURE VALVE SPRING
    CAP, OIL PRESSURE VALVE SPRING
  • 55
    18-46605 COTTER PIN, OIL PRESSURE RELEASE VALVE CAP
    COTTER PIN, OIL PRESSURE RELEASE VALVE CAP
