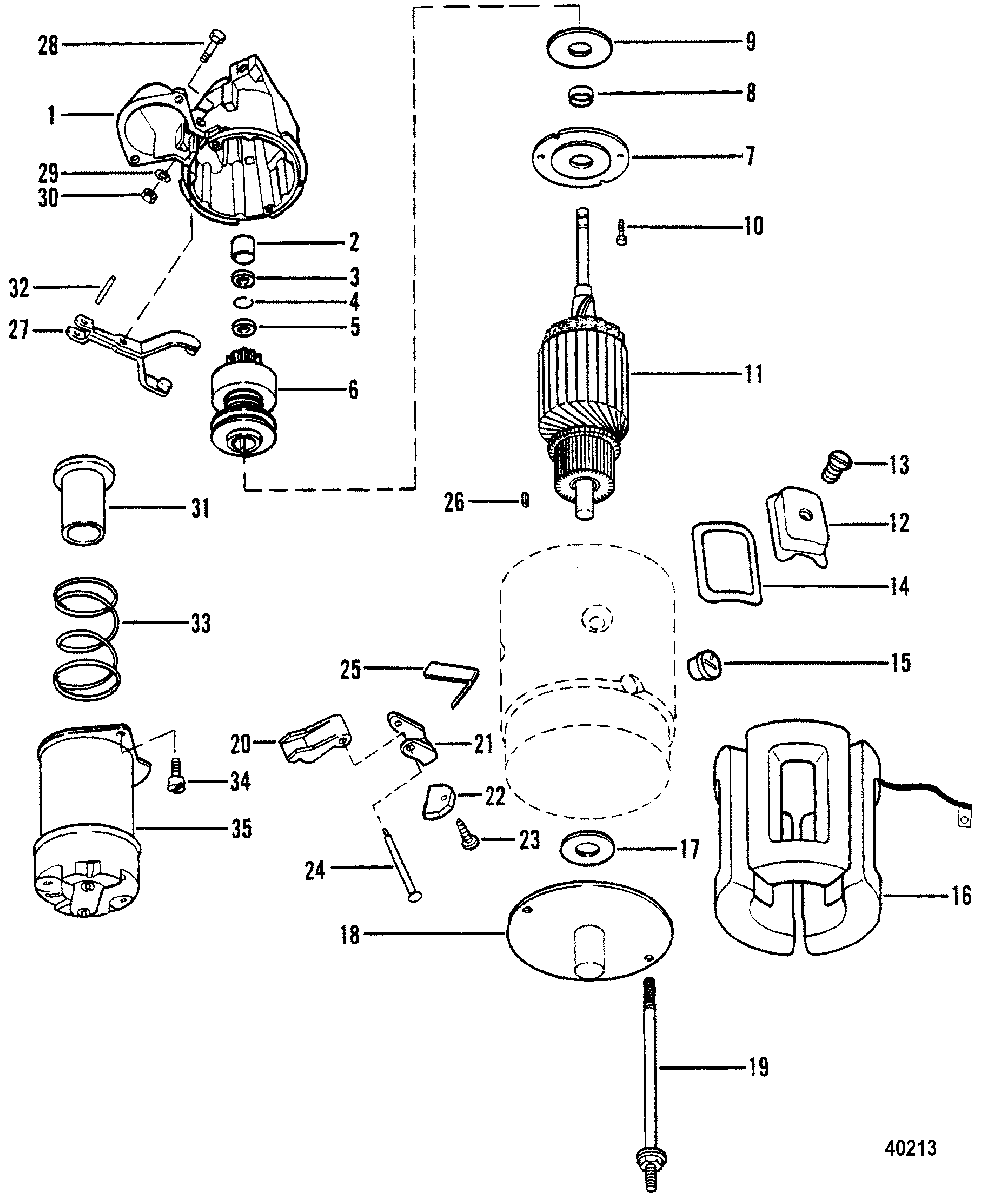

STARTER MOTOR ASSEMBLY для Mercruiser - 470 (2 BBL.) MERCURY 224 I/L4 1983-1984 6218037 THRU 6916778

  • №
    Артикул
    Название
  • -
    50-97499R3 STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 1
    79206 HOUSING ASSEMBLY, Drive End
    HOUSING ASSEMBLY, Drive End
  • 2
    23-33278 BUSHING, DRIVE END HOUSING
    BUSHING, DRIVE END HOUSING
  • 3
    23-809457 COLLAR, THRUST
    COLLAR, THRUST
  • 4
    53-33290 RING, Retaining, PINION STOP COLLAR
    RING, Retaining, PINION STOP COLLAR
  • 5
    33291 COLLAR, PINION STOP
    COLLAR, PINION STOP
  • 6
    68609 DRIVE ASSEMBLY, CLUTCH
    DRIVE ASSEMBLY, CLUTCH
  • 7
    79396 PLATE, BEARING
    PLATE, BEARING
  • 8
    23-71694 BUSHING, BEARING PLATE
    BUSHING, BEARING PLATE
  • 9
    12-68614 WASHER, BEARING PLATE
    WASHER, BEARING PLATE
  • 10
    10-79209 SCREW, BEARING PLATE
    SCREW, BEARING PLATE
  • 11
    N.S.S. Not Sold Separate, ARMATURE
    (DELCO REMY #185260)
    Not Sold Separate, ARMATURE
    (DELCO REMY #185260)
  • 12
    N.S.S. Not Sold Separate, SHOE, POLE TO FIELD COIL
    (DELCO REMY #1968396)
    Not Sold Separate, SHOE, POLE TO FIELD COIL
    (DELCO REMY #1968396)
  • 13
    N.S.S. Not Sold Separate, SCREW, POLE SHOE TO FIELD COIL
    (DELCO REMY #19768396)
    Not Sold Separate, SCREW, POLE SHOE TO FIELD COIL
    (DELCO REMY #19768396)
  • 14
    N.S.S. Not Sold Separate, INSULATION, FIELD COIL
    (DELCO REMY #1976832)
    Not Sold Separate, INSULATION, FIELD COIL
    (DELCO REMY #1976832)
  • 15
    25-79208 GROMMET, FIELD COIL-FIELD FRAME
    GROMMET, FIELD COIL-FIELD FRAME
  • 16
    79212 COIL ASSEMBLY
    COIL ASSEMBLY
  • 17
    12-68613 WASHER, LEATHER-COMMUTATOR END FRAME
    WASHER, LEATHER-COMMUTATOR END FRAME
  • 18
    79211 FRAME, COMMUTATOR END -LOWER
    FRAME, COMMUTATOR END -LOWER
  • 19
    N.S.S. Not Sold Separate, BOLT, THRU
    (DELCO REMY #1941111)
    Not Sold Separate, BOLT, THRU
    (DELCO REMY #1941111)
  • 20
    33284 HOLDER, INULATED-FIELD FRAME BRUSH
    HOLDER, INULATED-FIELD FRAME BRUSH
  • 21
    33283 HOLDER, FIELD FRAME BRUSH GROUND
    HOLDER, FIELD FRAME BRUSH GROUND
  • 22
    33270 BRUSH, FIELD FRAME
    BRUSH, FIELD FRAME
  • 23
    N.S.S. Not Sold Separate, SCREW, BRUSH LEAD
    (DELCO REMY #1967747)
    Not Sold Separate, SCREW, BRUSH LEAD
    (DELCO REMY #1967747)
  • 23
    N.S.S. Not Sold Separate, SCREW, BRUSH LEAD
    (DELCO REMY #443527)
    Not Sold Separate, SCREW, BRUSH LEAD
    (DELCO REMY #443527)
  • 24
    33294 SUPPORT, GROUND AND INSULATED HOLDERS
    SUPPORT, GROUND AND INSULATED HOLDERS
  • 25
    24-33285 SPRING, FIELD FRAME BRUSH
    SPRING, FIELD FRAME BRUSH
  • 26
    N.S.S. Not Sold Separate, PIN, DOWEL-FIELD FRAME
    (DELCO REMY #809593)
    Not Sold Separate, PIN, DOWEL-FIELD FRAME
    (DELCO REMY #809593)
  • 27
    33297 LEVER, SHIFT
    LEVER, SHIFT
  • 28
    16-48268 STUD, SHIFT LEVER TO DRIVE END HOUSING
    STUD, SHIFT LEVER TO DRIVE END HOUSING
  • 29
    12-68615 WASHER, SHIFT LEVER STUD
    WASHER, SHIFT LEVER STUD
  • 30
    11-26484 NUT, (.312-18), SHIFT LEVER STUD
    NUT, (.312-18), SHIFT LEVER STUD
  • 31
    N.S.S. Not Sold Separate, PLUNGER, SHIFT LEVER
    (DELCO REMY #1978297)
    Not Sold Separate, PLUNGER, SHIFT LEVER
    (DELCO REMY #1978297)
  • 32
    17-79207 PIN, PLUNGER TO SHIFT LEVER
    PIN, PLUNGER TO SHIFT LEVER
  • 33
    N.S.S. Not Sold Separate, SPRING, PLUNGER RETURN
    (DELCO REMY #1978281)
    Not Sold Separate, SPRING, PLUNGER RETURN
    (DELCO REMY #1978281)
  • 34
    N.S.S. Not Sold Separate, SCREW, SOLENOID SWITCH
    (DELCO REMY #9413260)
    Not Sold Separate, SCREW, SOLENOID SWITCH
    (DELCO REMY #9413260)
  • 35
    33261 SOLENOID SWITCH ASSEMBLY
    SOLENOID SWITCH ASSEMBLY
