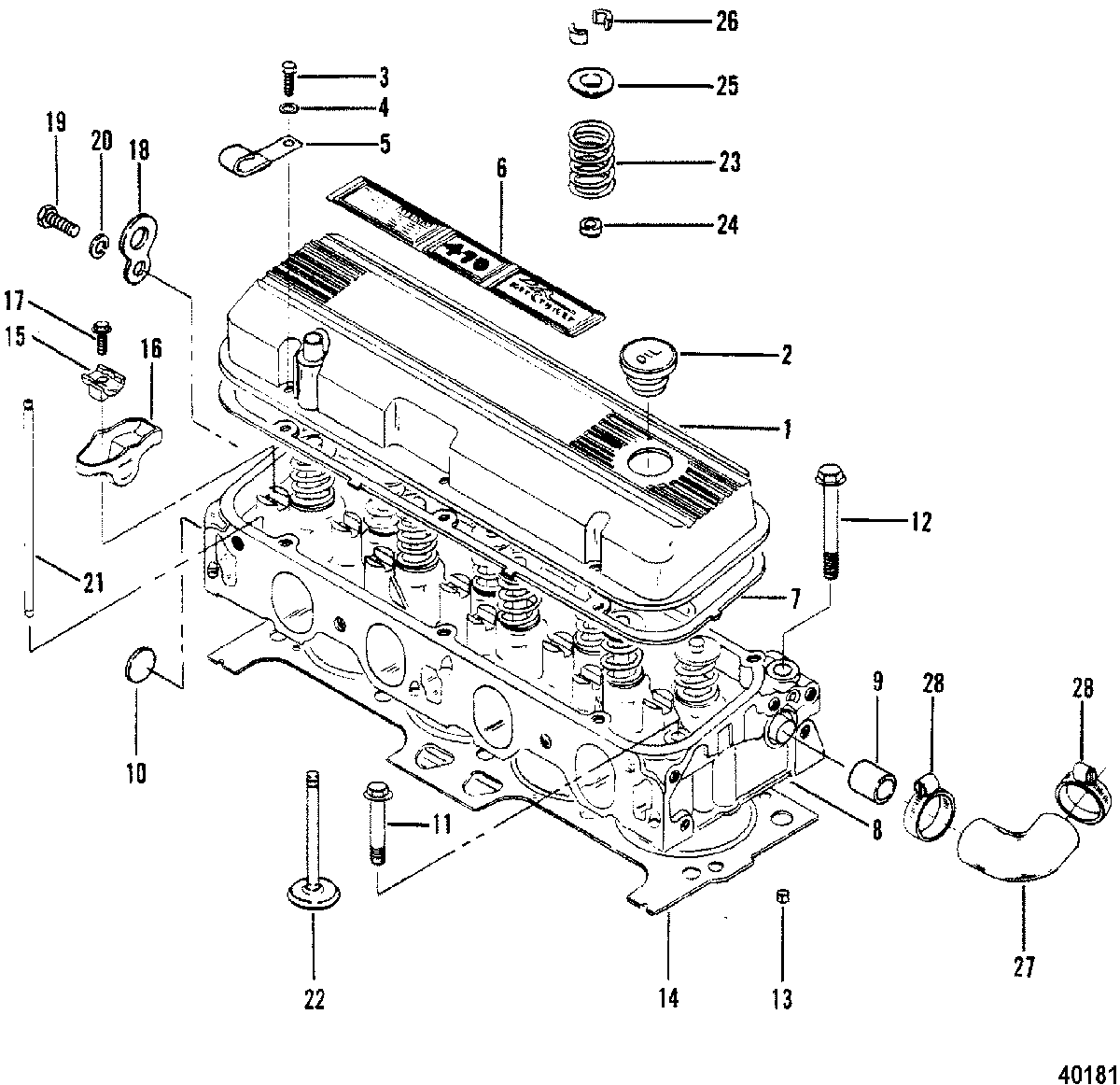

CYLINDER HEAD AND ROCKER COVER для Mercruiser - 470 (2 BBL.) MERCURY 224 I/L4 1983-1984 6218037 THRU 6916778

  • №
    Артикул
    Название
  • 1
    41638A1 ROCKER COVER
    ROCKER COVER
  • 2
    36-807152 CAP, Filler
    CAP, Filler
  • 3
    10-65746 SCREW, (.250-20 x .75)
    SCREW, (.250-20 x .75)
  • 4
    13-22773 LOCKWASHER
    LOCKWASHER
  • 5
    54-642351 J CLIP
    J CLIP
  • 6
    37-77263 DECAL, ROCKER COVER
    DECAL, ROCKER COVER
  • 7
    27-73666 GASKET, ROCKER COVER
    GASKET, ROCKER COVER
  • 8
    966-9451R2 CYLINDER HEAD ASSEMBLY
    CYLINDER HEAD ASSEMBLY
  • 9
    23-72119 SLEEVE, WATER
    SLEEVE, WATER
  • 10
    19-74832 PLUG, CYLINDER HEAD
    PLUG, CYLINDER HEAD
  • 11
    10-67503 SCREW, (4-3/8 Inch), CYLINDER HEAD
    SCREW, (4-3/8 Inch), CYLINDER HEAD
  • 12
    10-72769 SCREW, (5-1/8 Inch), CYLINDER HEAD
    SCREW, (5-1/8 Inch), CYLINDER HEAD
  • 13
    17-67489 PIN, CYLINDER HEAD
    PIN, CYLINDER HEAD
  • 14
    27-13709 GASKET, CYLINDER HEAD
    GASKET, CYLINDER HEAD
  • 15
    67504 BALL, Rocker Arm
    BALL, Rocker Arm
  • 16
    806751A1 ARM, ROCKER VALVE
    ARM, ROCKER VALVE
  • 17
    10-67506 SCREW, ROCKER ARM
    SCREW, ROCKER ARM
  • 18
    54-72531 LIFTING EYE
    LIFTING EYE
  • 19
    10-48948 SCREW, (.437-14 x .880), LIFTING EYE
    FRONT
    SCREW, (.437-14 x .880), LIFTING EYE
    FRONT
  • 20
    13-32993 LOCKWASHER, (.437), LIFTING EYE SCREW
    FRONT
    LOCKWASHER, (.437), LIFTING EYE SCREW
    FRONT
  • 19
    10-34353 SCREW, (.375-16 x 1.00), LIFTING EYE
    REAR
    SCREW, (.375-16 x 1.00), LIFTING EYE
    REAR
  • 20
    13-35048 LOCKWASHER, (.375), LIFTING EYER SCREW
    REAR
    LOCKWASHER, (.375), LIFTING EYER SCREW
    REAR
  • 21
    675025 PUSH ROD, VALVE (NO DYE )
    PUSH ROD, VALVE (NO DYE )
  • 21
    675023 PUSH ROD, VALVE (RED DYE)
    PUSH ROD, VALVE (RED DYE)
  • 21
    675024 PUSH ROD, VALVE (BLUE DYE)
    PUSH ROD, VALVE (BLUE DYE)
  • 21
    67502T2 PUSH ROD (YELLOW DYE)
    PUSH ROD (YELLOW DYE)
  • 22
    44182A1 VALVE, EXHAUST (Standard)
    VALVE, EXHAUST (Standard)
  • 22
    75415 VALVE, EXHAUST (.015 O.S.)
    VALVE, EXHAUST (.015 O.S.)
  • 22
    75416 VALVE, INTAKE (Standard)
    VALVE, INTAKE (Standard)
  • 22
    75417 VALVE, INTAKE (.015 O.S.)
    VALVE, INTAKE (.015 O.S.)
  • 23
    24-75411T SPRING, Valve
    SPRING, Valve
  • 24
    26-75624 SEAL, VALVE STEM
    SEAL, VALVE STEM
  • 25
    75412 RETAINER, VALVE SPRING
    RETAINER, VALVE SPRING
  • 26
    28-547971 KEY, VALVE SPRING
    KEY, VALVE SPRING
  • 27
    32-89653 HOSE, CYLINDER HEAD TO EXHAUST MANIFOLD
    HOSE, CYLINDER HEAD TO EXHAUST MANIFOLD
  • 28
    54-815504220 CLAMP, HOSE ATTACHING
    CLAMP, HOSE ATTACHING
