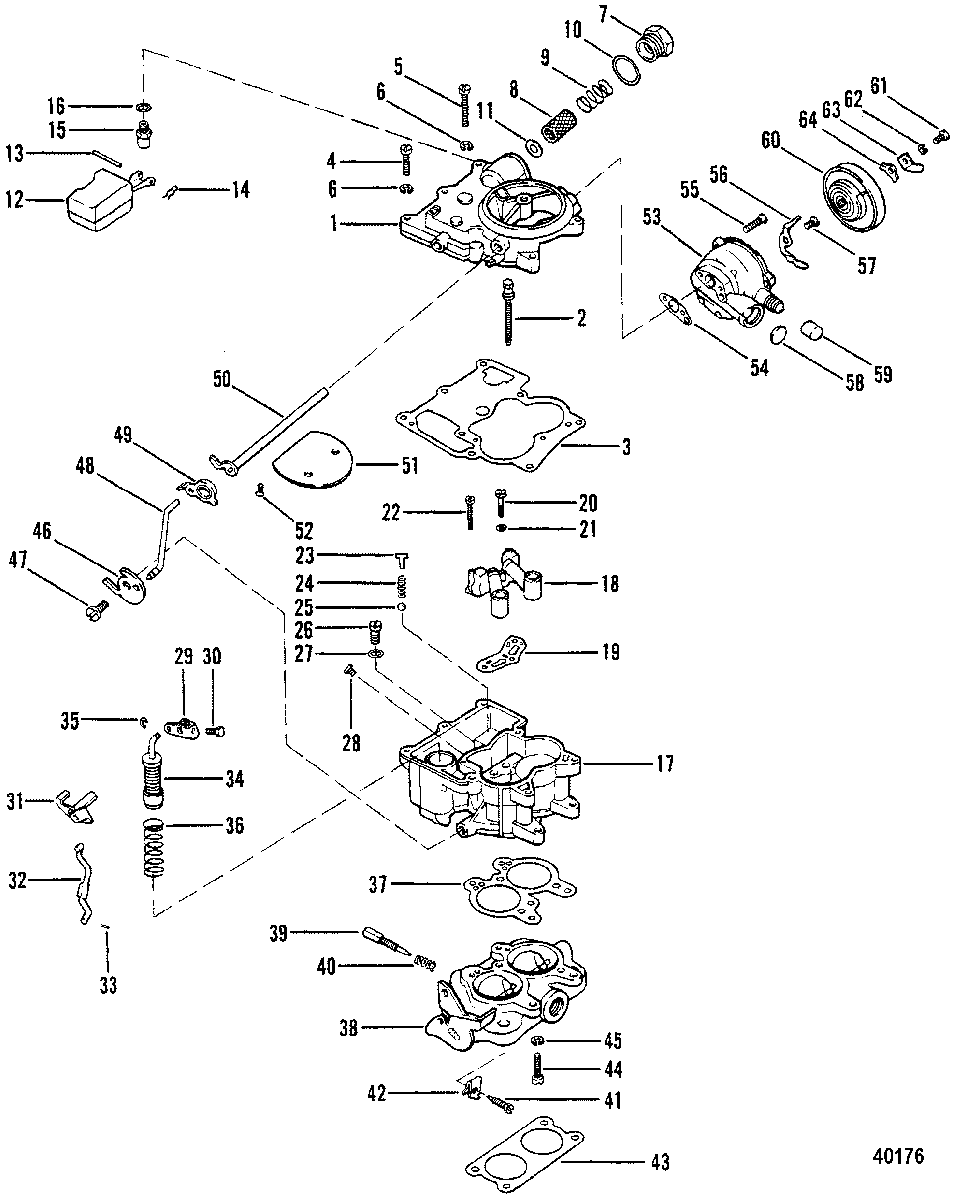

CARBURETOR(ROCHESTER) для Mercruiser - 470 (2 BBL.) MERCURY 224 I/L4 1983-1984 6218037 THRU 6916778

  • №
    Артикул
    Название
  • -
    3310-860071A4 CARBURETOR ASSEMBLY, Complete
    CARBURETOR ASSEMBLY, Complete
  • 1
    N.S.S. Not Sold Separate, AIR HORN
    Not Sold Separate, AIR HORN
  • 2
    N.S.S. Not Sold Separate, POWER PISTON ASSEMBLY
    (ROCHESTER #7009718)
    Not Sold Separate, POWER PISTON ASSEMBLY
    (ROCHESTER #7009718)
  • 4
    10-33043 SCREW, Air Horn (Short)
    SCREW, Air Horn (Short)
  • 5
    N.S.S. Not Sold Separate, SCREW, Air Horn (Long)
    (ROCHESTER #7010432)
    Not Sold Separate, SCREW, Air Horn (Long)
    (ROCHESTER #7010432)
  • 6
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 7
    1397-3330 NUT, Fuel Inlet
    NUT, Fuel Inlet
  • 8
    35-53336Q STRAINER, Fuel Inlet
    STRAINER, Fuel Inlet
  • 9
    3302-9032 SPRING, Fuel Inlet
    SPRING, Fuel Inlet
  • 10
    N.S.S. Not Sold Separate, GASKET, Fuel Inlet Nut (Large)
    Not Sold Separate, GASKET, Fuel Inlet Nut (Large)
  • 11
    N.S.S. Not Sold Separate, GASKET, Fuel Inlet Nut (Small)
    Not Sold Separate, GASKET, Fuel Inlet Nut (Small)
  • 12
    1397-5837 FLOAT ASSEMBLY
    FLOAT ASSEMBLY
  • 13
    N.S.S. Not Sold Separate, PIN, Hinge
    (ROCHESTER #7002081)
    Not Sold Separate, PIN, Hinge
    (ROCHESTER #7002081)
  • 14
    N.S.S. Not Sold Separate, CLIP
    Not Sold Separate, CLIP
  • 15
    N.S.S. Not Sold Separate, INLET NEEDLE & SEAT ASSEMBLY
    Not Sold Separate, INLET NEEDLE & SEAT ASSEMBLY
  • 16
    N.S.S. Not Sold Separate, GASKET, Inlet Needle & Seat
    Not Sold Separate, GASKET, Inlet Needle & Seat
  • 17
    N.S.S. Not Sold Separate, FLOAT BOWL ASSEMBLY
    Not Sold Separate, FLOAT BOWL ASSEMBLY
  • 18
    N.S.S. Not Sold Separate, VENTURI CLUSTER ASSEMBLY
    Not Sold Separate, VENTURI CLUSTER ASSEMBLY
  • 19
    N.S.S. Not Sold Separate, GASKET
    Not Sold Separate, GASKET
  • 20
    N.S.S. Not Sold Separate, SCREW, Venturi Cluster (Center)
    ROCHESTER #709077
    Not Sold Separate, SCREW, Venturi Cluster (Center)
    ROCHESTER #709077
  • 21
    N.S.S. Not Sold Separate, GASKET, Venturi Cluster Screw(Center)
    Not Sold Separate, GASKET, Venturi Cluster Screw(Center)
  • 22
    N.S.S. Not Sold Separate, SCREW, Venturi Cluster (Outer)
    ROCHESTER #7045762
    Not Sold Separate, SCREW, Venturi Cluster (Outer)
    ROCHESTER #7045762
  • 23
    N.S.S. Not Sold Separate, GUIDE, Pump, Discharge-Float Bowl
    Not Sold Separate, GUIDE, Pump, Discharge-Float Bowl
  • 24
    N.S.S. Not Sold Separate, SPRING, Pump Discharge-Float Bowl
    Not Sold Separate, SPRING, Pump Discharge-Float Bowl
  • 25
    N.S.S. Not Sold Separate, BALL, Pump Discharge-Float Bow
    Not Sold Separate, BALL, Pump Discharge-Float Bow
  • 26
    N.S.S. Not Sold Separate, POWER VALVE ASSEMBLY, Float Bowl
    Not Sold Separate, POWER VALVE ASSEMBLY, Float Bowl
  • 27
    N.S.S. Not Sold Separate, GASKET, Power Valve
    Not Sold Separate, GASKET, Power Valve
  • 28
    1397-6365 JET, Float Bowl (Standard)
    JET, Float Bowl (Standard)
  • 29
    N.S.S. Not Sold Separate, LEVER, Pump-Air Horn
    (ROCHESTER #7032377)
    Not Sold Separate, LEVER, Pump-Air Horn
    (ROCHESTER #7032377)
  • 30
    10-33047 SCREW, Air Horn Pump Lever
    SCREW, Air Horn Pump Lever
  • 31
    N.S.S. Not Sold Separate, PUMP SHAFT & LEVER ASSEMBLY
    (ROCHESTER #7038788)
    Not Sold Separate, PUMP SHAFT & LEVER ASSEMBLY
    (ROCHESTER #7038788)
  • 32
    N.S.S. Not Sold Separate, ROD, Pump
    (ROCHESTER #7038799)
    Not Sold Separate, ROD, Pump
    (ROCHESTER #7038799)
  • 33
    N.S.S. Not Sold Separate, CLIP, Retainer-Pump Rod
    Not Sold Separate, CLIP, Retainer-Pump Rod
  • 34
    N.S.S. Not Sold Separate, PUMP ASSEMBLY, Float Bowl
    Not Sold Separate, PUMP ASSEMBLY, Float Bowl
  • 35
    N.S.S. Not Sold Separate, CLIP, Retainer-Float Bowl Pump
    Not Sold Separate, CLIP, Retainer-Float Bowl Pump
  • 36
    N.S.S. Not Sold Separate, SPRING, Pump Return-Float Bowl
    Not Sold Separate, SPRING, Pump Return-Float Bowl
  • 37
    N.S.S. Not Sold Separate, GASKET, Throttle Body
    Not Sold Separate, GASKET, Throttle Body
  • 38
    N.S.S. Not Sold Separate, THROTTLE BODY ASSEMBLY
    Not Sold Separate, THROTTLE BODY ASSEMBLY
  • 39
    N.S.S. Not Sold Separate, Idle Adjusting Needle
    Not Sold Separate, Idle Adjusting Needle
  • 40
    24-33050 SPRING
    SPRING
  • 41
    N.S.S. Not Sold Separate, IDLE STOP SCREW, Throttle Body
    (ROCHESTER #7031547)
    Not Sold Separate, IDLE STOP SCREW, Throttle Body
    (ROCHESTER #7031547)
  • 42
    N.S.S. Not Sold Separate, CLIP
    (ROCHESTER #7025604)
    Not Sold Separate, CLIP
    (ROCHESTER #7025604)
  • 43
    27-8079821 GASKET, Carburetor Flange
    GASKET, Carburetor Flange
  • 44
    10-33052 SCREW, Throttle Body to Float Bowl
    SCREW, Throttle Body to Float Bowl
  • 45
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 46
    N.S.S. Not Sold Separate, CAM, Fast Idle
    (ROCHESTER #7025377)
    Not Sold Separate, CAM, Fast Idle
    (ROCHESTER #7025377)
  • 47
    N.S.S. Not Sold Separate, SCREW
    (ROCHESTER #7003561)
    Not Sold Separate, SCREW
    (ROCHESTER #7003561)
  • 48
    N.S.S. Not Sold Separate, ROD, Choke
    (ROCHESTER #7038821)
    Not Sold Separate, ROD, Choke
    (ROCHESTER #7038821)
  • 49
    1397-4257 LEVER/COLLAR ASSEMBLY, Choke
    LEVER/COLLAR ASSEMBLY, Choke
  • 50
    1397-5840 SHAFT ASSEMBLY, Choke
    SHAFT ASSEMBLY, Choke
  • 51
    1397-5839 VALVE, Choke-Choke Shaft
    VALVE, Choke-Choke Shaft
  • 52
    N.S.S. Not Sold Separate, SCREW
    (ROCHESTER #7007627)
    Not Sold Separate, SCREW
    (ROCHESTER #7007627)
  • 53
    1397-5838 HOUSING ASSEMBLY, Choke
    HOUSING ASSEMBLY, Choke
  • 54
    N.S.S. Not Sold Separate, GASKET, Choke Housing
    Not Sold Separate, GASKET, Choke Housing
  • 55
    10-33053 SCREW, Choke Housing to Air Horn
    SCREW, Choke Housing to Air Horn
  • 56
    N.S.S. Not Sold Separate, LEVER ASSEMBLY
    (ROCHESTER #7010051))
    Not Sold Separate, LEVER ASSEMBLY
    (ROCHESTER #7010051))
  • 57
    10-33056 SCREW, Choke Piston Lever to Choke Housing
    SCREW, Choke Piston Lever to Choke Housing
  • 58
    N.S.S. Not Sold Separate, WELCH PLUG, Choke Housing
    (ROCHESTER #7003135)
    Not Sold Separate, WELCH PLUG, Choke Housing
    (ROCHESTER #7003135)
  • 859
    22-56772 PLUG, Choke Housing
    PLUG, Choke Housing
  • 60
    70125A02 COVER, Choke
    COVER, Choke
  • 61
    10-33047 SCREW, Choke Cover to Choke Housing
    SCREW, Choke Cover to Choke Housing
  • 62
    13-26995 LOCKWASHER, (#8) Stainless Steel, Choke Cover Screw
    LOCKWASHER, (#8) Stainless Steel, Choke Cover Screw
  • 63
    86-70879 TERMINAL, Choke Cover Screw
    TERMINAL, Choke Cover Screw
  • 64
    54-33036 RETAINER, Choke Cover Screw
    RETAINER, Choke Cover Screw
  • -
    1397-6367A1 OVERHAUL KIT
    OVERHAUL KIT
