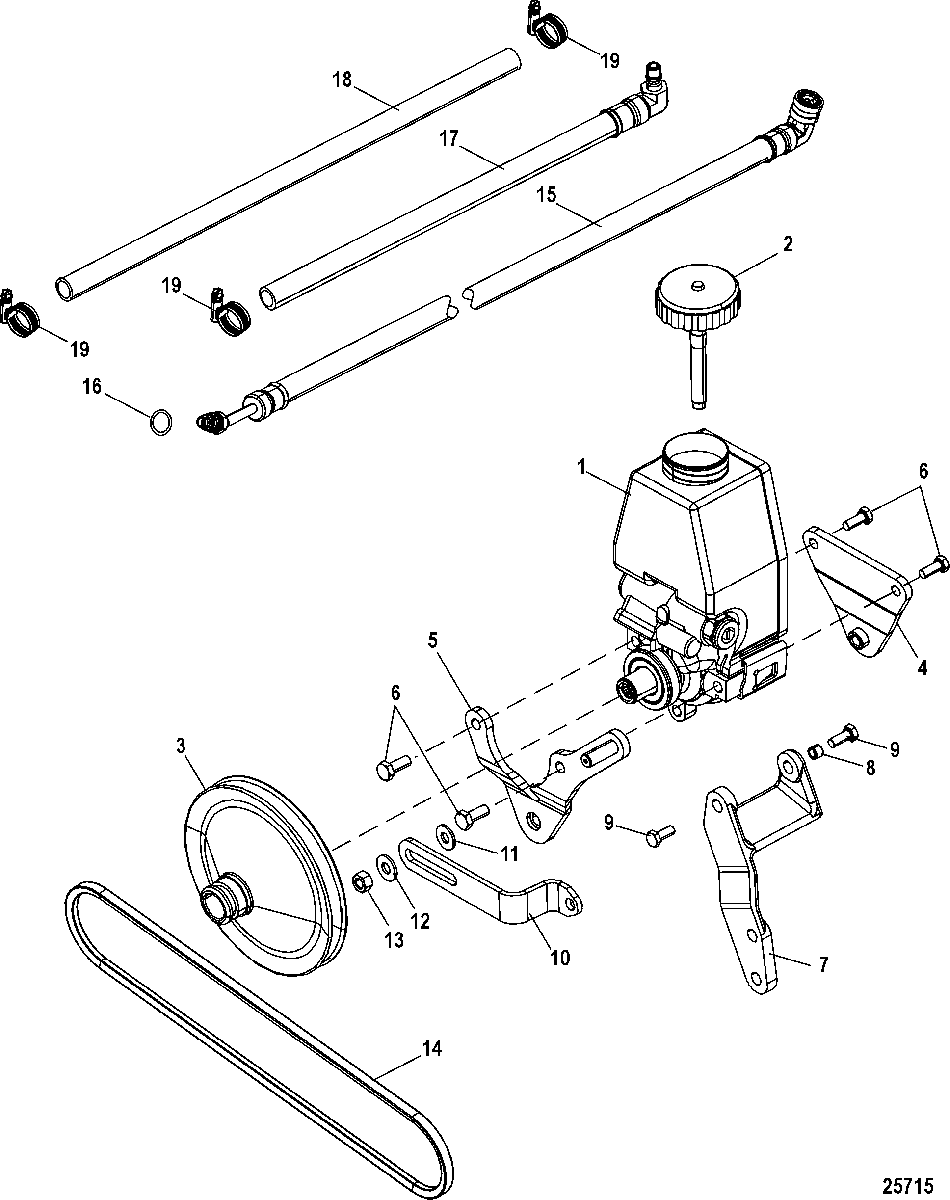

Steering Components для Mercruiser - 3.0L GM 181 I/L4 1A020544 & Up

  • №
    Артикул
    Название
  • 1
    866280A04 PUMP ASSEMBLY
    PUMP ASSEMBLY
  • 2
    36-95805 CAP
    CAP
  • 3
    866106T PULLEY
    PULLEY
  • 4
    866144T BRACKET
    BRACKET
  • 5
    866145T BRACKET
    BRACKET
  • 6
    10-40001137 SCREW, (M8 x 30)
    SCREW, (M8 x 30)
  • 7
    65606T BRACKET
    BRACKET
  • 8
    23-96818 BUSHING
    BUSHING
  • 9
    10-37612 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 10
    8M0072245 BRACE, Power Steering Adjusting
    BRACE, Power Steering Adjusting
  • 11
    23-72057 SPACER, (1.00 Outside Diameter x .125 x Thick)
    SPACER, (1.00 Outside Diameter x .125 x Thick)
  • 12
    12-34714 WASHER
    WASHER
  • 13
    11-32219 NUT, (.375-16)
    NUT, (.375-16)
  • 14
    57-65607Q V BELT, 37 in. (940 mm) length
    V BELT, 37 in. (940 mm) length
  • 15
    32-8M0063021 HOSE, Pressure
    HOSE, Pressure
  • 16
    25-89879 O-RING, (.301 x .064)
    O-RING, (.301 x .064)
  • 17
    32-865390015 HOSE, Male Quick Connect
    HOSE, Male Quick Connect
  • 18
    32-8M0062341 HOSE, (53.00 Inches Bulk), Pump to Oil Cooler
    (Cut to 37.00 Inch Length)
    HOSE, (53.00 Inches Bulk), Pump to Oil Cooler
    (Cut to 37.00 Inch Length)
  • 19
    54-815504105 CLAMP, Worm Gear (11-18 mm)
    CLAMP, Worm Gear (11-18 mm)
  • NS
    19-8M0074363 COVER, Hose Clamp End
    COVER, Hose Clamp End
