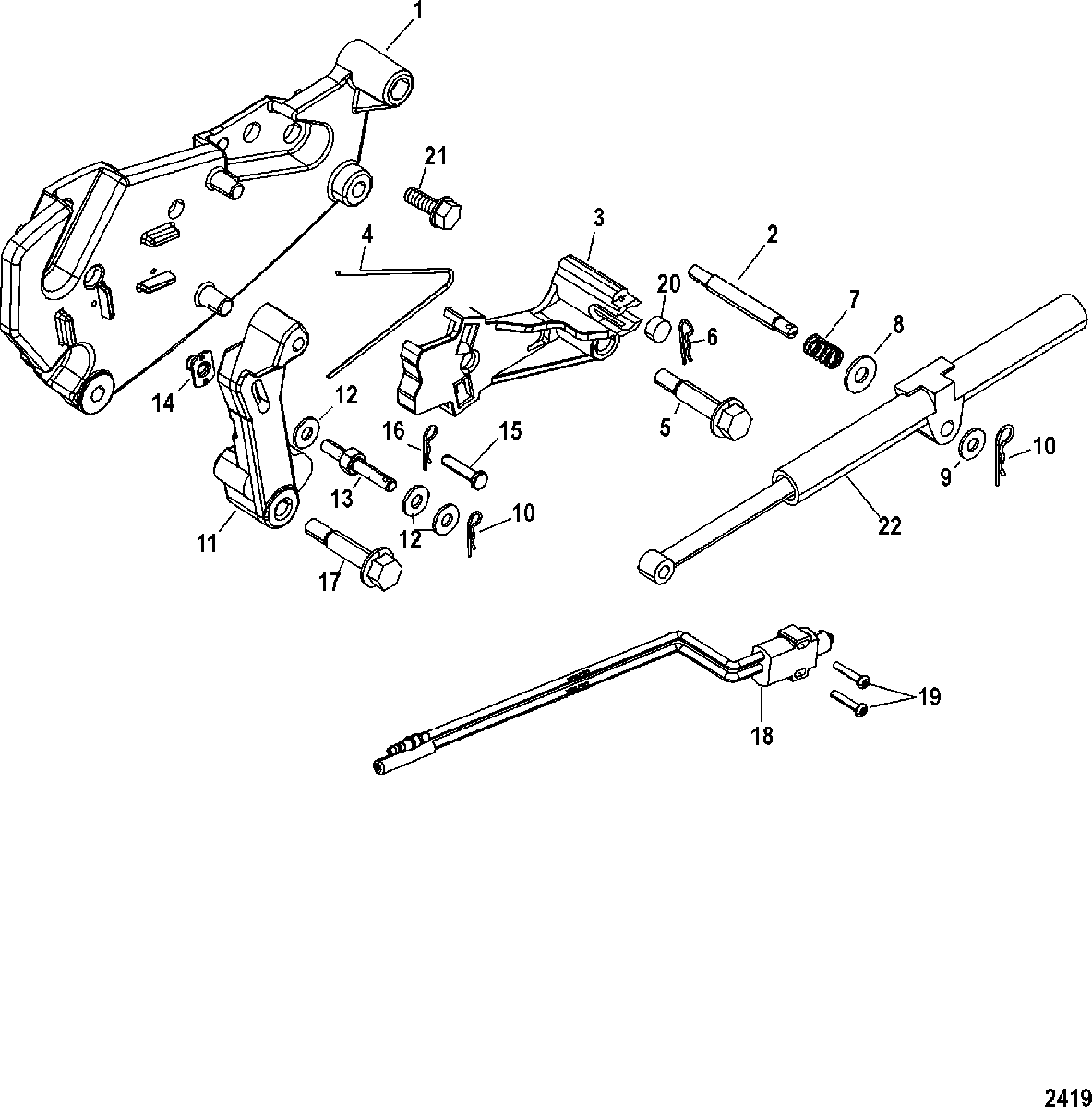

Shift Bracket для Mercruiser - 3.0L GM 181 I/L4 1A020544 & Up

  • №
    Артикул
    Название
  • 1
    807962A15 BRACKET ASSEMBLY, Shift
    BRACKET ASSEMBLY, Shift
  • 2
    865149A02 STUD, With Clip
    STUD, With Clip
  • 3
    865433A02 LEVER ASSEMBLY, Actuator
    LEVER ASSEMBLY, Actuator
  • 4
    24-864907T SPRING
    SPRING
  • 5
    10-865148 SHOULDER SCREW, (.312-18 x 1.843) Stainless Steel, Shoulder
    SHOULDER SCREW, (.312-18 x 1.843) Stainless Steel, Shoulder
  • 6
    18-859746 COTTER PIN, Hairpin
    COTTER PIN, Hairpin
  • 7
    24-98880 SPRING
    SPRING
  • 8
    12-56720 WASHER, (.330 x .750 x .060) Stainless Steel
    WASHER, (.330 x .750 x .060) Stainless Steel
  • 9
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 10
    18-859746 COTTER PIN, Hairpin
    COTTER PIN, Hairpin
  • 11
    13898T06 LEVER ASSEMBLY, Shift
    LEVER ASSEMBLY, Shift
  • 12
    12-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel
    WASHER, (.2656 x .625 x .0625) Stainless Steel
  • 13
    16-865393A02 STUD KIT, (.250-28 x 1.90), With Clip
    STUD KIT, (.250-28 x 1.90), With Clip
  • 14
    11-63341 TEE NUT
    TEE NUT
  • 15
    17-814001 PIN, Clevis
    PIN, Clevis
  • 16
    18-859746 COTTER PIN, Hairpin
    COTTER PIN, Hairpin
  • 17
    10-865148 SHOULDER SCREW, (.312-18 x 1.843) Stainless Steel, Shoulder
    SHOULDER SCREW, (.312-18 x 1.843) Stainless Steel, Shoulder
  • 18
    87-814281T09 SWITCH, Shift Interupt
    SWITCH, Shift Interupt
  • 19
    10-865147T01 SCREW, (#6-32 x .750) Stainless Steel
    SCREW, (#6-32 x .750) Stainless Steel
  • 20
    23-98828 SPACER
    SPACER
  • 21
    10-805564 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • 22
    813995A1 GUIDE ASSEMBLY, Spring
    GUIDE ASSEMBLY, Spring
