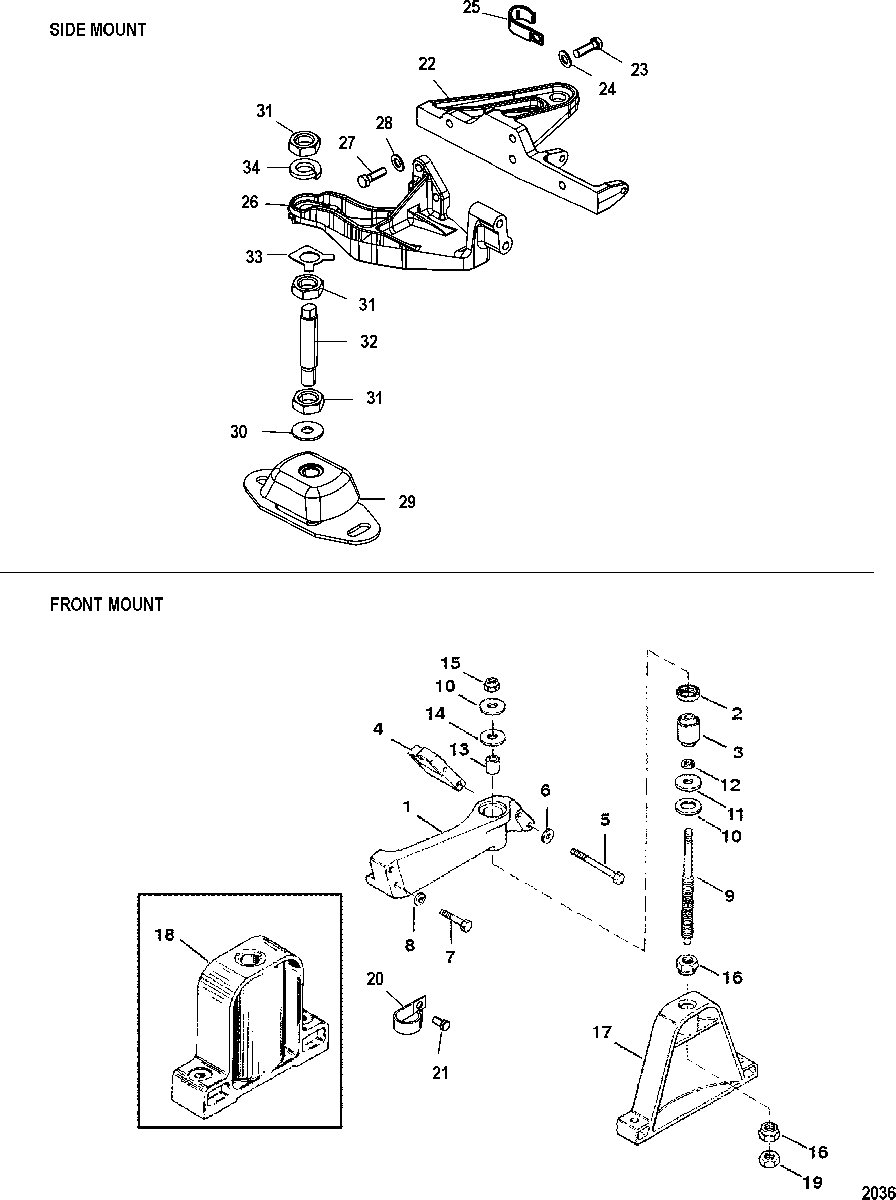

Engine Mounting для Mercruiser - 3.0L GM 181 I/L4 1A020544 & Up
-
№АртикулНазвание
-
173571A2 BRACKET ASSEMBLYBRACKET ASSEMBLY
-
223-35903 SPACERSPACER
-
332833 MOUNTMOUNT
-
48M0046293 BLOCKBLOCK
-
510-8M2021918 SCREW, (.437-14 x 4.625)SCREW, (.437-14 x 4.625)
-
612-22248 WASHER, (.453 x .875 x .060)WASHER, (.453 x .875 x .060)
-
710-26486 SCREW, (.375-16 x 2.375)
(Without Power Steering)SCREW, (.375-16 x 2.375)
(Without Power Steering) -
710-47688 SCREW, (.375-16 x 2.750)
(With Power Steering)SCREW, (.375-16 x 2.750)
(With Power Steering) -
812-20553 WASHER, (.406 x .734 x .063)WASHER, (.406 x .734 x .063)
-
916-36100T STUDSTUD
-
1012-36103 WASHER, (Steel, 1.75 Inch Outside Diameter)WASHER, (Steel, 1.75 Inch Outside Diameter)
-
1112-32638 WASHER, RubberWASHER, Rubber
-
1212-30119 WASHER, (.875 Inch Outside Diameter)WASHER, (.875 Inch Outside Diameter)
-
1323-32756 SPACERSPACER
-
1412-36104 WASHER, RubberWASHER, Rubber
-
1511-82671317 NUT, (.500-20)NUT, (.500-20)
-
1611-32882 NUT, (.875-14)NUT, (.875-14)
-
1732778T SUPPORTSUPPORT
-
1876409F1 SUPPORTSUPPORT
-
1911-47525 NUT, (.875-14), BottomNUT, (.875-14), Bottom
-
2054-78945 J CLAMPJ CLAMP
-
2110-98261 SCREW, (.375-16 x .750)SCREW, (.375-16 x .750)
-
22863384T MOUNT, PortMOUNT, Port
-
2310-37612 SCREW, (.375-16 x 1.250)SCREW, (.375-16 x 1.250)
-
2310-865982005 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
2412-20553 WASHER, (.406 x .734 x .063)WASHER, (.406 x .734 x .063)
-
2554-78945 J CLAMPJ CLAMP
-
26863385T MOUNT, StarboardMOUNT, Starboard
-
2710-34354 SCREW, (.375-16 x 1.50)SCREW, (.375-16 x 1.50)
-
2710-865982005 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
2812-20553 WASHER, (.406 x .734 x .063)WASHER, (.406 x .734 x .063)
-
2998323A6 BASE ASSEMBLYBASE ASSEMBLY
-
3012-33171 WASHER, (.6406 x 1.750 x .125)WASHER, (.6406 x 1.750 x .125)
-
3111-20739 NUT, (.750-16)NUT, (.750-16)
-
3216-8M0022149 STUD, (.750-16 x Special)STUD, (.750-16 x Special)
-
3314-863844 RETAINERRETAINER
-
3413-68102 LOCKWASHER, (.750)LOCKWASHER, (.750)
