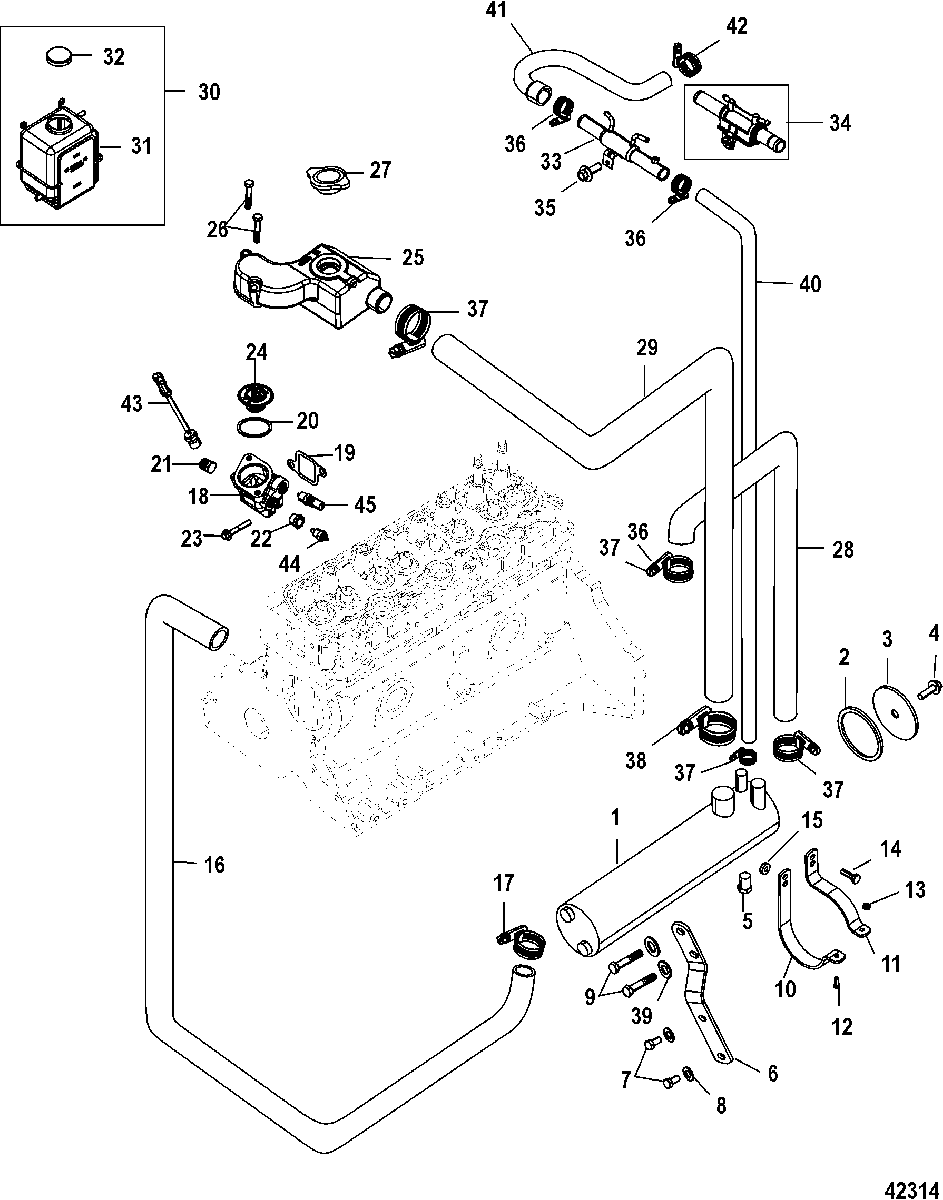

Closed Cooling System для Mercruiser - 3.0L GM 181 I/L4 1A020544 & Up

  • №
    Артикул
    Название
  • 1
    61086A7 HEAT EXCHANGER ASSEMBLY
    HEAT EXCHANGER ASSEMBLY
  • 2
    27-65128 GASKET
    GASKET
  • 3
    66221 COVER
    COVER
  • 4
    10-66223 SCREW
    SCREW
  • 5
    22-328022 PLUG, Pipe (.125-27) Brass
    PLUG, Pipe (.125-27) Brass
  • 6
    61895 BRACKET, Front
    BRACKET, Front
  • 7
    10-98261 SCREW, (.375-16 x .750)
    SCREW, (.375-16 x .750)
  • 8
    13-35048 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 9
    10-36359 SCREW, (.437-14 x 5.00)
    SCREW, (.437-14 x 5.00)
  • 10
    61899 BRACKET, Rear Lower
    BRACKET, Rear Lower
  • 11
    61897T BRACKET, Rear Upper
    BRACKET, Rear Upper
  • 12
    10-65027 SCREW, (.250-28 x 1.00)
    SCREW, (.250-28 x 1.00)
  • 13
    11-8267139 NUT, (.250-28)
    NUT, (.250-28)
  • 14
    10-34354 SCREW, (.375-16 x 1.50)
    SCREW, (.375-16 x 1.50)
  • 15
    23-905201 SPACER, (.750 x .250)
    SPACER, (.750 x .250)
  • 16
    32-96763 HOSE, Water Pump to Heat Exchanger
    HOSE, Water Pump to Heat Exchanger
  • 17
    54-815504232 CLAMP, Worm Gear (2.50 Diameter) (2.50 Inch)
    CLAMP, Worm Gear (2.50 Diameter) (2.50 Inch)
  • 18
    862874A1 HOUSING ASSEMBLY, Thermostat
    HOUSING ASSEMBLY, Thermostat
  • 19
    27-8146801 GASKET
    GASKET
  • 20
    27-8M2021920 GASKET
    GASKET
  • 21
    22-52382 BUSHING
    BUSHING
  • 22
    22-52382 BUSHING
    BUSHING
  • 22
    22-32803 PLUG, Pipe (.375-18) Brass
    PLUG, Pipe (.375-18) Brass
  • 23
    10-20359 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 23
    10-37612 SCREW, (.375-16 x 1.250)
    SCREW, (.375-16 x 1.250)
  • 24
    8M0109441 THERMOSTAT, 71DegreeC (160 Degree F)
    THERMOSTAT, 71DegreeC (160 Degree F)
  • 25
    96878A2 RESERVOIR ASSEMBLY
    RESERVOIR ASSEMBLY
  • 26
    10-35787 SCREW, (.375-16 x 2.250)
    SCREW, (.375-16 x 2.250)
  • 27
    36-13130 CAP, Pressure
    CAP, Pressure
  • 28
    32-96766 HOSE, Exhaust Manifold to Heat exchanger
    HOSE, Exhaust Manifold to Heat exchanger
  • 29
    32-96765 HOSE, Reservoir to Exchanger
    HOSE, Reservoir to Exchanger
  • 30
    71587A10 RECOVERY KIT, Coolant
    RECOVERY KIT, Coolant
  • NS
    32-774572 HOSE, (48.00 Inches Bulk)
    HOSE, (48.00 Inches Bulk)
  • 31
    71587A11 BOTTLE, Plastic
    BOTTLE, Plastic
  • 32
    72058 CAP
    CAP
  • 33
    8M0125855 COOLER, Power Steering
    (10.50 Inch)(With Molded Bracket) (Metal)
    COOLER, Power Steering
    (10.50 Inch)(With Molded Bracket) (Metal)
  • 34
    8M0125855 COOLER, Power Steering
    (Composite)
    COOLER, Power Steering
    (Composite)
  • 35
    10-816585 SCREW, (.375-18 x .875)
    Metal Cooler
    SCREW, (.375-18 x .875)
    Metal Cooler
  • 35
    10-8M2016106 SCREW, (.312 x 1.25)
    Composite Cooler (Included with 861554T02)
    SCREW, (.312 x 1.25)
    Composite Cooler (Included with 861554T02)
  • 36
    54-815504222 CLAMP, Worm Gear (1.98 DIameter) (1.98 Inch)
    CLAMP, Worm Gear (1.98 DIameter) (1.98 Inch)
  • 37
    54-815504216 CLAMP, Worm Gear (1.56 Diameter) (1.56 Inch)
    CLAMP, Worm Gear (1.56 Diameter) (1.56 Inch)
  • 38
    54-815504228 CLAMP, Worm Gear (2.25 Inch)
    CLAMP, Worm Gear (2.25 Inch)
  • 39
    12-22248 WASHER, (.453 x .875 x .060)
    WASHER, (.453 x .875 x .060)
  • 40
    32-807661 HOSE, Power Steering Cooler to Thermostat Housing
    (With Power Steering)
    HOSE, Power Steering Cooler to Thermostat Housing
    (With Power Steering)
  • 40
    32-8M0062634 HOSE, (44.00 Inches Bulk), Transom to Heat Exchanger
    (Without Power Steering)
    HOSE, (44.00 Inches Bulk), Transom to Heat Exchanger
    (Without Power Steering)
  • 41
    32-807661 HOSE, Transom to Power Steering Cooler
    (Use With 10.50 Inch Cooler)
    HOSE, Transom to Power Steering Cooler
    (Use With 10.50 Inch Cooler)
  • 42
    54-815504212 CLAMP, Worm Gear, Diameter(1.31 Inch)
    CLAMP, Worm Gear, Diameter(1.31 Inch)
  • 43
    87-866115 Temperature Switch, (Normally Open 130-110 degrees), Turn Key Start
    Temperature Switch, (Normally Open 130-110 degrees), Turn Key Start
  • 44
    806490T SENDER
    SENDER
  • 45
    48952 SWITCH ASSEMBLY
    SWITCH ASSEMBLY
  • NS
    19-8M0074364 COVER, Hose Clamp End
    COVER, Hose Clamp End
