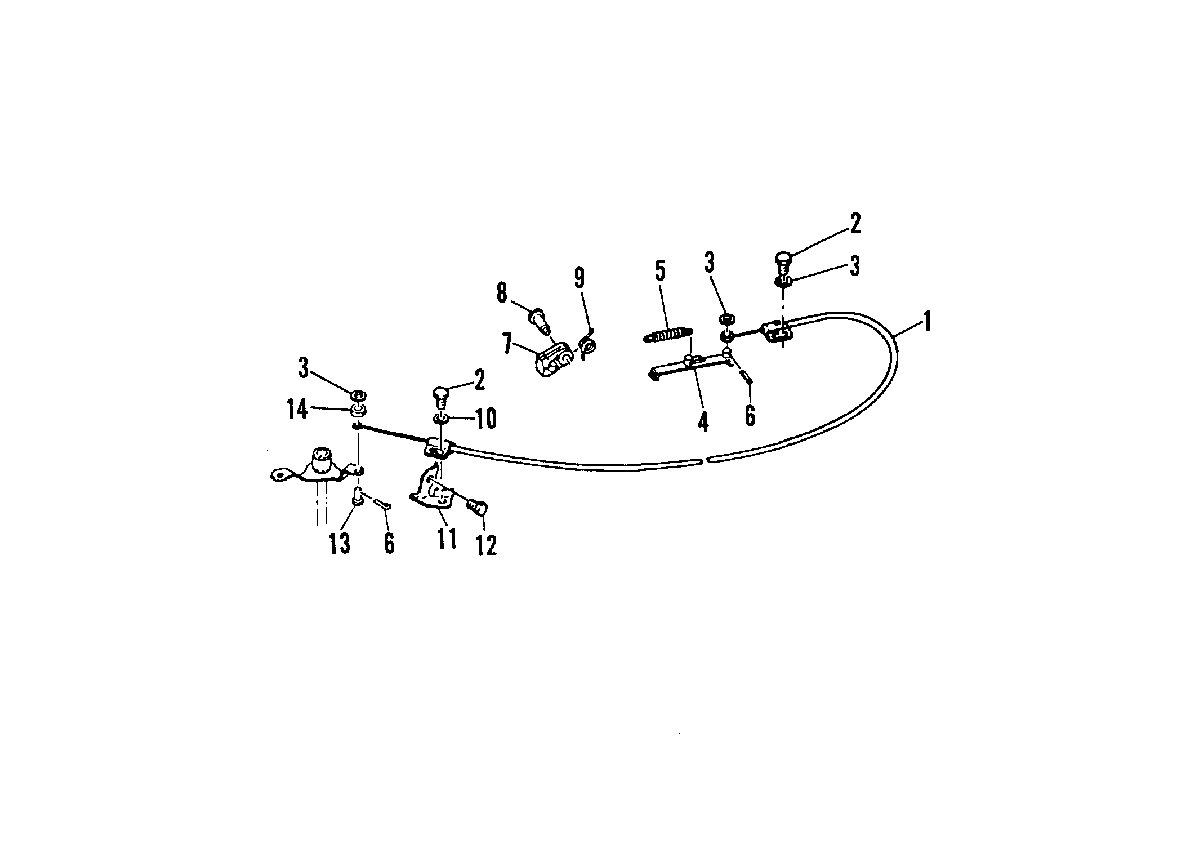

SAFTEY STARTER COMPONENTS для Mariner - W-55 663-578278 AND UP
-
№АртикулНазвание
-
192689M LOCKOUT CABLELOCKOUT CABLE
-
210-91772M BOLT
SERIAL (M-271949 ML-586106) AND ABOVEBOLT
SERIAL (M-271949 ML-586106) AND ABOVE -
210-84088M BOLT
SERIAL (M-271948 ML-586105) AND BELOWBOLT
SERIAL (M-271948 ML-586105) AND BELOW -
312-82213M WASHERWASHER
-
481303M CAMCAM
-
524-18970M SPRING
SERIAL (M-271949 ML-586106) AND ABOVESPRING
SERIAL (M-271949 ML-586106) AND ABOVE -
524-82102M SPRING
SERIAL (M-271948 ML-586105) AND BELOWSPRING
SERIAL (M-271948 ML-586105) AND BELOW -
618-43089M COTTER PINCOTTER PIN
-
781317M LEVERLEVER
-
810-81751M PIVOTPIVOT
-
924-82106M SPRINGSPRING
-
1012-82214M WASHERWASHER
-
1181314M BRACKETBRACKET
-
1210-82436M BOLTBOLT
-
1317-82136M CLEVIS PINCLEVIS PIN
-
1483152M RETAINING RINGRETAINING RING
