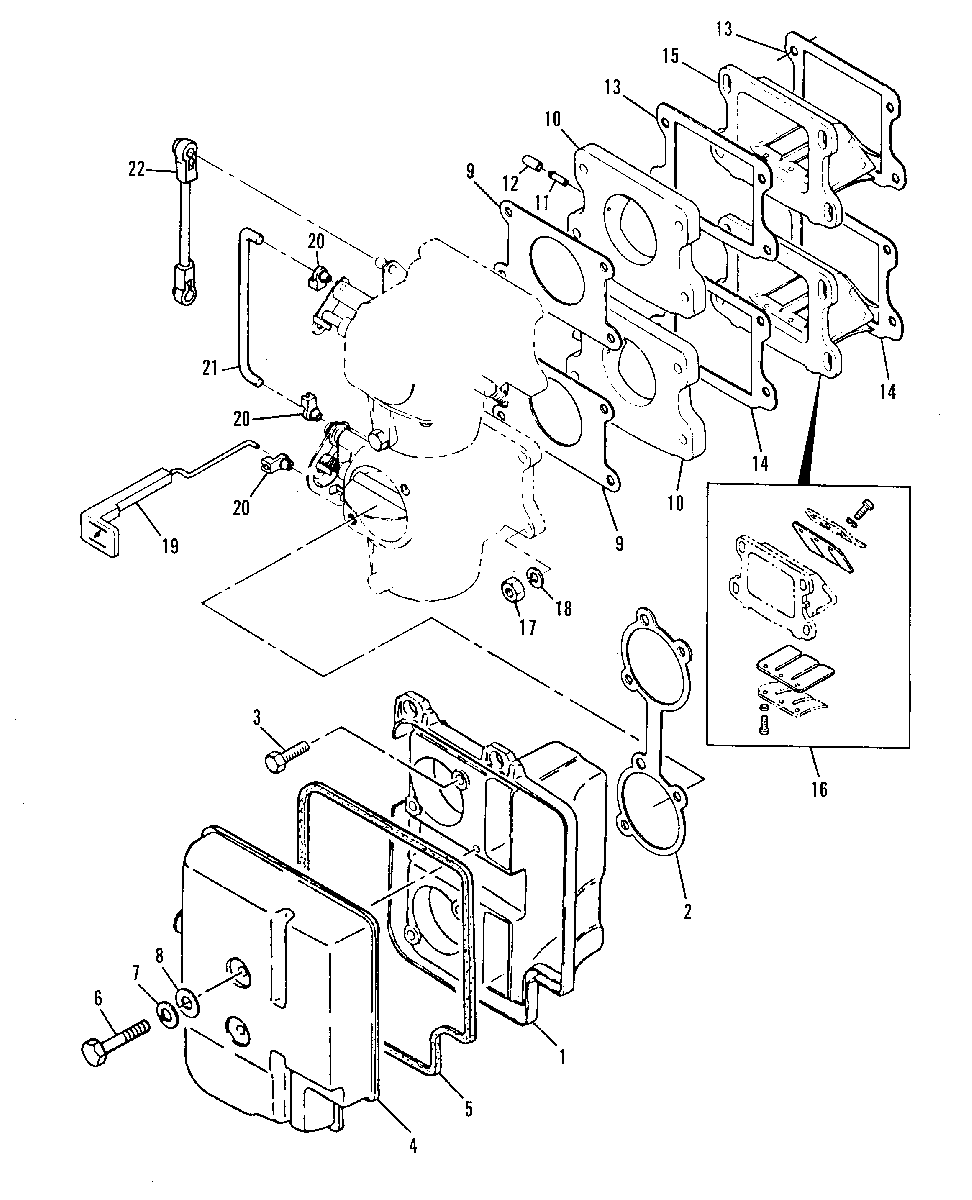

INTAKE MANIFOLD для Mariner - W-55 663-578278 AND UP

  • №
    Артикул
    Название
  • 1
    92629M AIR INTAKE BASE
    AIR INTAKE BASE
  • 2
    27-81276M GASKET
    GASKET
  • 3
    10-82405M BOLT
    BOLT
  • 4
    92630M AIR INTAKE COVER
    AIR INTAKE COVER
  • 5
    27-92631M GASKET
    GASKET
  • 6
    10-84657M BOLT
    BOLT
  • 7
    13-82212M LOCKWASHER
    LOCKWASHER
  • 8
    12-82214M WASHER
    WASHER
  • 9
    27-81272 GASKET
    GASKET
  • 10
    92677M INTAKE MANIFOLD
    INTAKE MANIFOLD
  • 11
    22-80122M PIPE
    PIPE
  • 12
    80454M CAP
    CAP
  • 13
    27-81269M GASKET (UPPER)
    GASKET (UPPER)
  • 14
    27-81270M GASKET (LOWER)
    GASKET (LOWER)
  • 15
    34-92633M REED VALVE ASSEMBLY
    REED VALVE ASSEMBLY
  • 16
    34-92676M REED SET (REED STOPS NOT INCLUDED)
    REED SET (REED STOPS NOT INCLUDED)
  • 17
    11-82389M NUT
    NUT
  • 18
    13-82212M LOCKWASHER
    LOCKWASHER
  • 19
    81338M CHOKE ROD
    CHOKE ROD
  • 20
    16333 CONNECTOR
    CONNECTOR
  • 21
    810938M ROD, CHOKE LINK
    M-272351 ML-593221 AND UP
    ROD, CHOKE LINK
    M-272351 ML-593221 AND UP
  • 22
    810939M ROD, THROTTLE LEVER
    M-272351 ML-593221 AND UP
    ROD, THROTTLE LEVER
    M-272351 ML-593221 AND UP
  • 21
    810938M ROD, CHOKE LINK
    M-272350 ML593220 AND BELOW
    ROD, CHOKE LINK
    M-272350 ML593220 AND BELOW
  • 22
    810939M ROD, THROTTLE LEVER
    M-272350 ML593220 AND BELOW
    ROD, THROTTLE LEVER
    M-272350 ML593220 AND BELOW
  • --
    27-84168M POWERHEAD GASKET SET
    .
    POWERHEAD GASKET SET
    .
  • --
    19141M CARBURETOR REPAIR KIT
    .
    CARBURETOR REPAIR KIT
    .
  • --
    19141M CARBURETOR REPAIR KIT
    .
    CARBURETOR REPAIR KIT
    .
