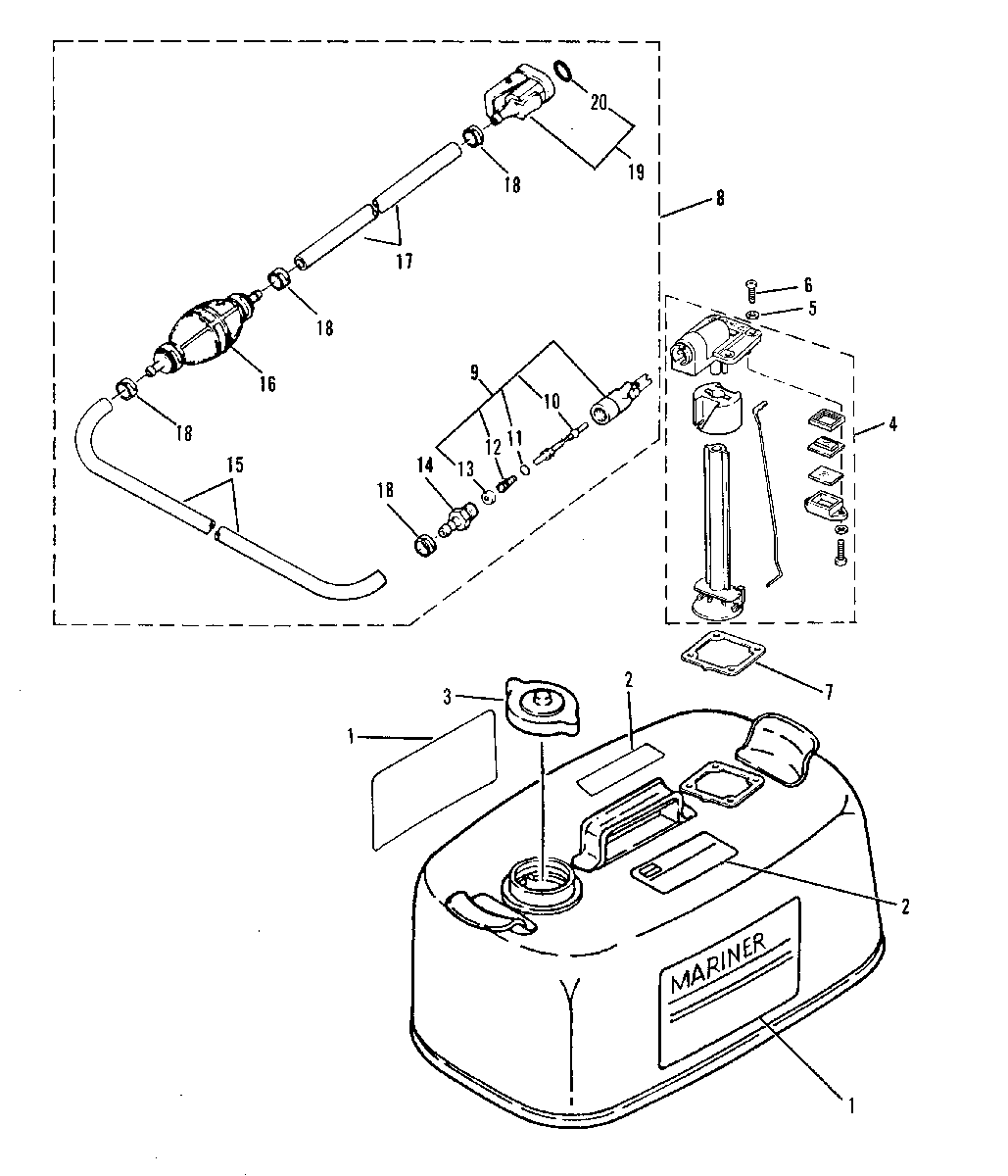

FUEL TANK AND FUEL LINE ASSEMBLY (ORIGINAL EQUIPMENT) для Mariner - W-55 663-578278 AND UP
-
№АртикулНазвание
-
137-14617M DECAL, SIDE (ENGLISH)DECAL, SIDE (ENGLISH)
-
137-95504M DECAL, SIDE (FRENCH)DECAL, SIDE (FRENCH)
-
237-95489M DECAL, TOP (ENGLISH)DECAL, TOP (ENGLISH)
-
237-95503M DECAL, TOP (FRENCH)DECAL, TOP (FRENCH)
-
336-18962M FUEL TANK CAPFUEL TANK CAP
-
495499M FUEL METER ASSEMBLYFUEL METER ASSEMBLY
-
512-95501M SEALSEAL
-
610-95502M SCREWSCREW
-
727-95500M GASKETGASKET
-
832-877681Q8 FUEL LINE ASSY. (5/16" - 8MM - I.D. HOSE)FUEL LINE ASSY. (5/16" - 8MM - I.D. HOSE)
-
832-877681Q8 FUEL LINE ASSY. (1/4" - 6MM - I.D. HOSE)FUEL LINE ASSY. (1/4" - 6MM - I.D. HOSE)
-
930185Q3 BAYONET BODY ASSEMBLYBAYONET BODY ASSEMBLY
-
1030185Q3 STEMSTEM
-
1125-16524 "O"RING"O"RING
-
1224-30189 SPRINGSPRING
-
1330188 CAP WASHERCAP WASHER
-
1422-89771Q2 FITTING (5/16" - 8MM - I.D. HOSE)FITTING (5/16" - 8MM - I.D. HOSE)
-
1422-63187 FITTING (1/4" - 6MM - I.D. HOSE)FITTING (1/4" - 6MM - I.D. HOSE)
-
1532-16571M HOSE (5/16" - 8MM - I.D. HOSE)HOSE (5/16" - 8MM - I.D. HOSE)
-
1532-94727M HOSE (1/4" - 6MM - I.D. HOSE)HOSE (1/4" - 6MM - I.D. HOSE)
-
1613330Q07 PRIMER BULB (5/16" - 8MM - I.D. HOSE)PRIMER BULB (5/16" - 8MM - I.D. HOSE)
-
1689396Q01 PRIMER BULB (1/4" - 6MM - I.D. HOSE)PRIMER BULB (1/4" - 6MM - I.D. HOSE)
-
1732-16571M HOSE (5/16" - 8 MM - I.D. HOSE)HOSE (5/16" - 8 MM - I.D. HOSE)
-
1732-94727M HOSE (1/4" - 6MM - I.D. HOSE)HOSE (1/4" - 6MM - I.D. HOSE)
-
1854-16574M CLAMP (5/16" - 8MM - I.D. HOSE)CLAMP (5/16" - 8MM - I.D. HOSE)
-
1854-16725M CLAMP (1/4' - 6MM - I.D. HOSE)CLAMP (1/4' - 6MM - I.D. HOSE)
-
1922-13563Q3 FUEL CONNECTOR (5/16" - 8MM - I.D. HOSE)FUEL CONNECTOR (5/16" - 8MM - I.D. HOSE)
-
1922-14213Q FUEL CONNECTOR (1/4" - 6MM - I.D. HOSE)FUEL CONNECTOR (1/4" - 6MM - I.D. HOSE)
-
2025-82789M "O" RING (1/4" - 6MM - I.D.HOSE)"O" RING (1/4" - 6MM - I.D.HOSE)
