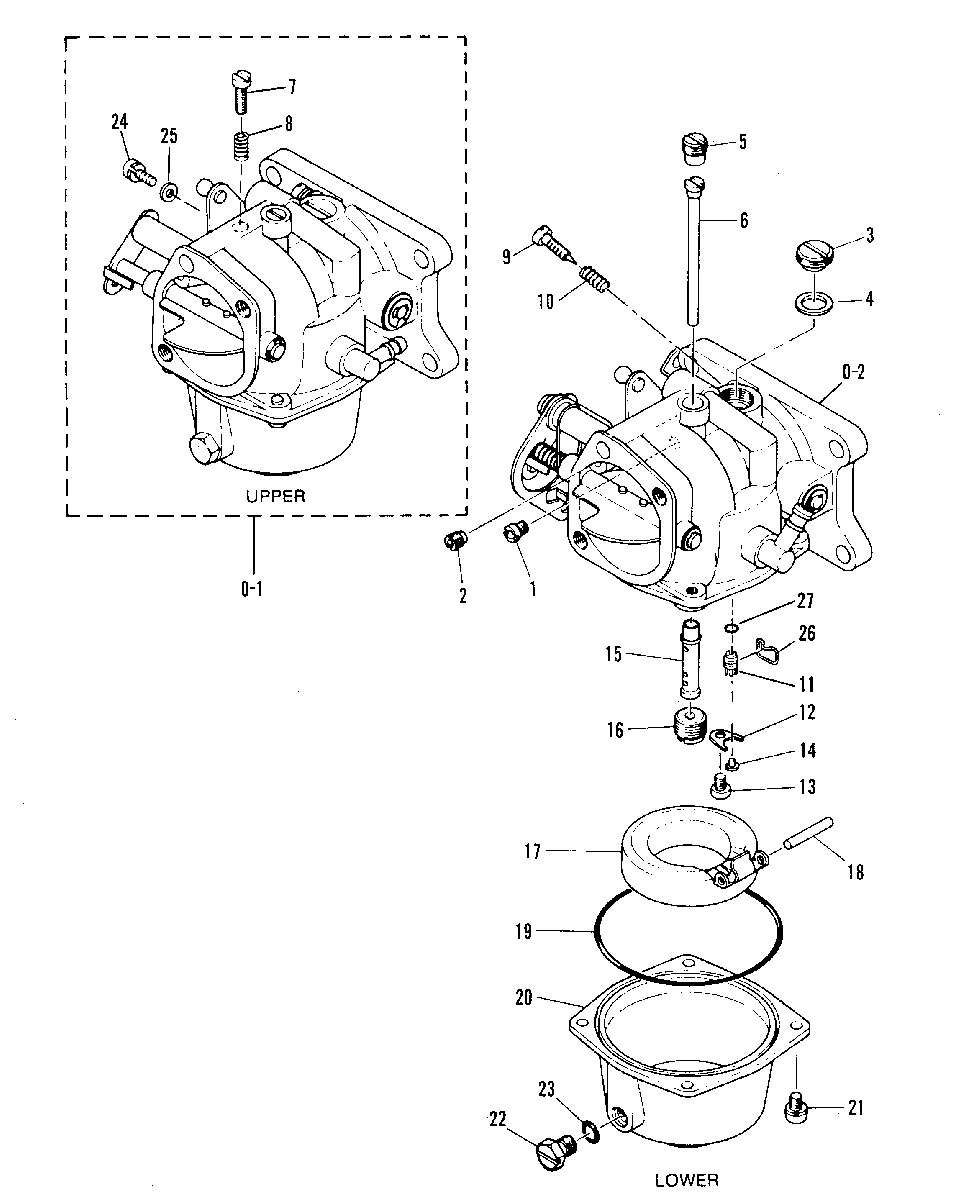

CARBURETOR для Mariner - W-55 663-578278 AND UP

  • №
    Артикул
    Название
  • 0-1
    1383-9281M CARBURETOR (UPPER)
    CARBURETOR (UPPER)
  • 0-1
    1383-9282M CARBURETOR (LOWER)
    CARBURETOR (LOWER)
  • 1
    95627M PILOT AIR JET (#98)
    PILOT AIR JET (#98)
  • 2
    97094M MAIN JET (#180)
    SERIAL (M-271272 ML-581824) AND ABOVE
    MAIN JET (#180)
    SERIAL (M-271272 ML-581824) AND ABOVE
  • 2
    95628M MAIN JET (#180)
    SERIAL (M-271271 ML-581823) AND BELOW
    MAIN JET (#180)
    SERIAL (M-271271 ML-581823) AND BELOW
  • 3
    10-81292M PLUG SCREW
    PLUG SCREW
  • 4
    12-92636M WASHER
    WASHER
  • 5
    10-81279M PLUG SCREW
    PLUG SCREW
  • 6
    84441M PILOT JET (#80)
    PILOT JET (#80)
  • 7
    10-81277M SCREW (LOWER)
    SCREW (LOWER)
  • 8
    24-82080M SPRING (LOWER)
    SPRING (LOWER)
  • 9
    10-81281M IDLE SPEED SCREW
    IDLE SPEED SCREW
  • 10
    24-82073M SPRING
    SPRING
  • 11
    41841M VALVE SEAT ASSEMBLY
    VALVE SEAT ASSEMBLY
  • 12
    80026M RETAINER
    RETAINER
  • 13
    10-82512M SCREW
    SCREW
  • 14
    17-92639M VALVE PIN
    VALVE PIN
  • 15
    97846M MAIN NOZZLE
    MAIN NOZZLE
  • 16
    81283M MAIN JET (#180)
    MAIN JET (#180)
  • 17
    97848M FLOAT
    SERIAL (M-271949 ML-586106) AND ABOVE
    FLOAT
    SERIAL (M-271949 ML-586106) AND ABOVE
  • 17
    97848M FLOAT
    SERIAL (M-271948 ML-586105) AND BELOW
    FLOAT
    SERIAL (M-271948 ML-586105) AND BELOW
  • 18
    17-81278M FLOAT PIN
    FLOAT PIN
  • 19
    25-82288M O-RING
    O-RING
  • 20
    81290M FLOAT BOWL
    FLOAT BOWL
  • 21
    10-81758M SCREW
    SCREW
  • 22
    10-81293M DRAIN SCREW
    DRAIN SCREW
  • 23
    25-94498M O-RING
    O-RING
  • 24
    10-97082M SCREW (UPPER)
    SCREW (UPPER)
  • 25
    12-83372M WASHER (UPPER)
    WASHER (UPPER)
  • 26
    54-8M0120624 CLIP
    SERIAL (M-271949 ML-586106) AND ABOVE
    CLIP
    SERIAL (M-271949 ML-586106) AND ABOVE
  • 27
    25-82261M O-RING
    SERIAL (M-271949 ML-586106) AND ABOVE
    O-RING
    SERIAL (M-271949 ML-586106) AND ABOVE
  • --
    19141M CARB REPAIR KIT
    SERIAL (M-271949 ML-586106) AND ABOVE.
    CARB REPAIR KIT
    SERIAL (M-271949 ML-586106) AND ABOVE.
  • --
    19141M CARB REPAIR KIT
    SERIAL (M-271948 ML-586105) AND BELOW.
    CARB REPAIR KIT
    SERIAL (M-271948 ML-586105) AND BELOW.
  • --
    27-84168M POWERHEAD GASKET SET
    .
    POWERHEAD GASKET SET
    .
