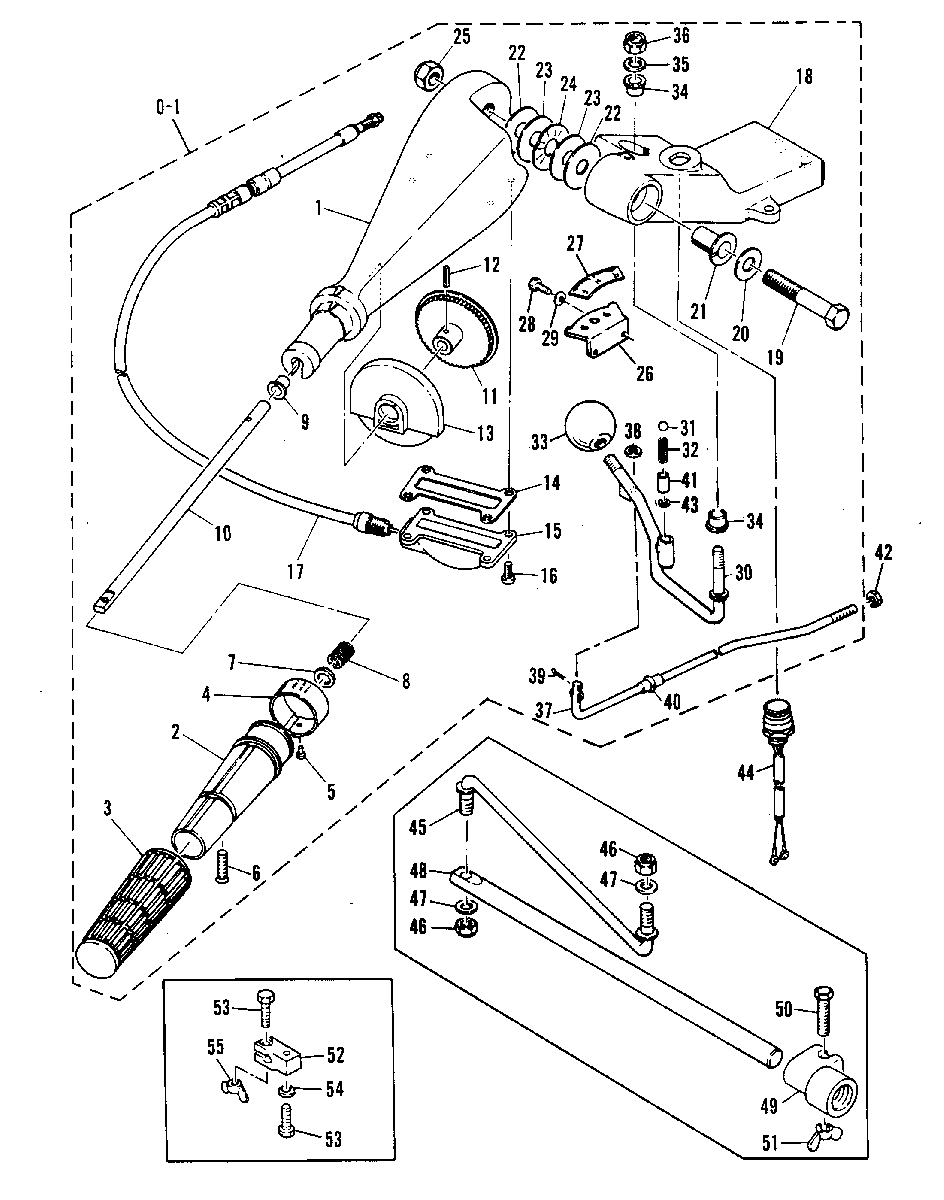

STEERING HANDLE для Mariner - W-48 670-311996 THRU 334240

  • №
    Артикул
    Название
  • 0-1
    92680M STEERING HANDLE ASS'Y
    STEERING HANDLE ASS'Y
  • 1
    82553M ARM, STEERING
    ARM, STEERING
  • 2
    81585M HANDLE, THROTTLE
    HANDLE, THROTTLE
  • 3
    8M0080456 GRIP, THROTTLE HANDLE
    GRIP, THROTTLE HANDLE
  • 4
    98947M INDICATOR, THROTTLE
    SERIAL 00006576-09999999
    INDICATOR, THROTTLE
    SERIAL 00006576-09999999
  • 4
    98947M INDICATOR, THROTTLE
    SERIAL 00000000-00006575
    INDICATOR, THROTTLE
    SERIAL 00000000-00006575
  • 5
    17-81907M RIVET
    RIVET
  • 6
    10-811916M SCREW
    SCREW
  • 7
    12-82220M WASHER
    WASHER
  • 8
    24-82095M SPRING, THROTTLE SHAFT
    SPRING, THROTTLE SHAFT
  • 9
    23-81945M BUSHING
    BUSHING
  • 10
    81351M SHAFT, THROTTLE
    SHAFT, THROTTLE
  • 11
    81357T CAM, THROTTLE
    CAM, THROTTLE
  • 12
    17-82152M PIN, ROLL
    PIN, ROLL
  • 13
    81355M HOUSING, THROTTLE CAM
    HOUSING, THROTTLE CAM
  • 14
    27-81353M GASKET, THROTTLE CAM COVER
    GASKET, THROTTLE CAM COVER
  • 15
    81354M COVER, THROTTLE CAM
    COVER, THROTTLE CAM
  • 16
    10-14232M SCREW
    SCREW
  • 17
    81329M THROTTLE CABLE
    THROTTLE CABLE
  • 18
    92681M BRACKET, STEERING
    BRACKET, STEERING
  • 19
    10-81710M BOLT
    BOLT
  • 20
    12-83524M WASHER
    WASHER
  • 21
    23-81950M BUSHING
    BUSHING
  • 22
    12-81853M WASHER
    WASHER
  • 23
    12-81815M WASHER
    WASHER
  • 24
    13-81870M WASHER, WAVE
    WASHER, WAVE
  • 25
    11-81786M NUT, ARM BOLT
    NUT, ARM BOLT
  • 26
    92682M BRACKET, INDICATOR
    BRACKET, INDICATOR
  • 27
    81414M INDICATOR, F-N-R
    INDICATOR, F-N-R
  • 28
    10-826957M BOLT
    BOLT
  • 29
    13-82212M WASHER, LOCK
    WASHER, LOCK
  • 30
    92683M HANDLE, GEAR SHIFT
    HANDLE, GEAR SHIFT
  • 31
    92684M BALL
    BALL
  • 32
    24-92685M SPRING
    SPRING
  • 33
    81413M LEVER, SHIFT CONTROL
    LEVER, SHIFT CONTROL
  • 34
    23-81946M BUSHING
    BUSHING
  • 35
    12-81804M WASHER
    WASHER
  • 36
    11-81785M NUT
    NUT
  • 37
    81358M ROD, MANUAL SHIFT
    ROD, MANUAL SHIFT
  • 38
    12-82214M WASHER
    WASHER
  • 39
    18-84301M PIN, COTTER
    PIN, COTTER
  • 40
    23-81943M BUSHING
    BUSHING
  • 41
    23-97107M COLLAR
    COLLAR
  • 42
    11-82920M NUT, CABLE END
    NUT, CABLE END
  • 43
    12-98948M WASHER
    WASHER
  • 44
    87-98949M STOP SWITCH ASS'Y
    OPTIONAL PARTS SERIAL 00006575-09999999
    STOP SWITCH ASS'Y
    OPTIONAL PARTS SERIAL 00006575-09999999
  • 44
    87-92687M STOP SWITCH ASS'Y
    OPTIONAL PARTS SERIAL 00000000-00006575
    STOP SWITCH ASS'Y
    OPTIONAL PARTS SERIAL 00000000-00006575
  • 45
    41848M ROD, STEERING LINK
    OPTIONAL PARTS
    ROD, STEERING LINK
    OPTIONAL PARTS
  • 46
    11-84295M NUT
    OPTIONAL PARTS
    NUT
    OPTIONAL PARTS
  • 47
    12-82217M WASHER
    OPTIONAL PARTS
    WASHER
    OPTIONAL PARTS
  • 48
    83705M SHAFT, FRICTION
    OPTIONAL PARTS
    SHAFT, FRICTION
    OPTIONAL PARTS
  • 49
    83706M PIECE, FRICTION
    OPTIONAL PARTS
    PIECE, FRICTION
    OPTIONAL PARTS
  • 50
    10-83285M BOLT
    OPTIONAL PARTS
    BOLT
    OPTIONAL PARTS
  • 51
    11-82703M NUT, WING
    OPTIONAL PARTS
    NUT, WING
    OPTIONAL PARTS
  • 52
    19173M PIECE, FRICTION (THROTTLE)
    OPTIONAL PARTS
    PIECE, FRICTION (THROTTLE)
    OPTIONAL PARTS
  • 53
    10-82405M BOLT
    OPTIONAL PARTS
    BOLT
    OPTIONAL PARTS
  • 54
    12-82214M WASHER
    OPTIONAL PARTS
    WASHER
    OPTIONAL PARTS
  • 55
    11-82703M NUT, WING
    OPTIONAL PARTS
    NUT, WING
    OPTIONAL PARTS
