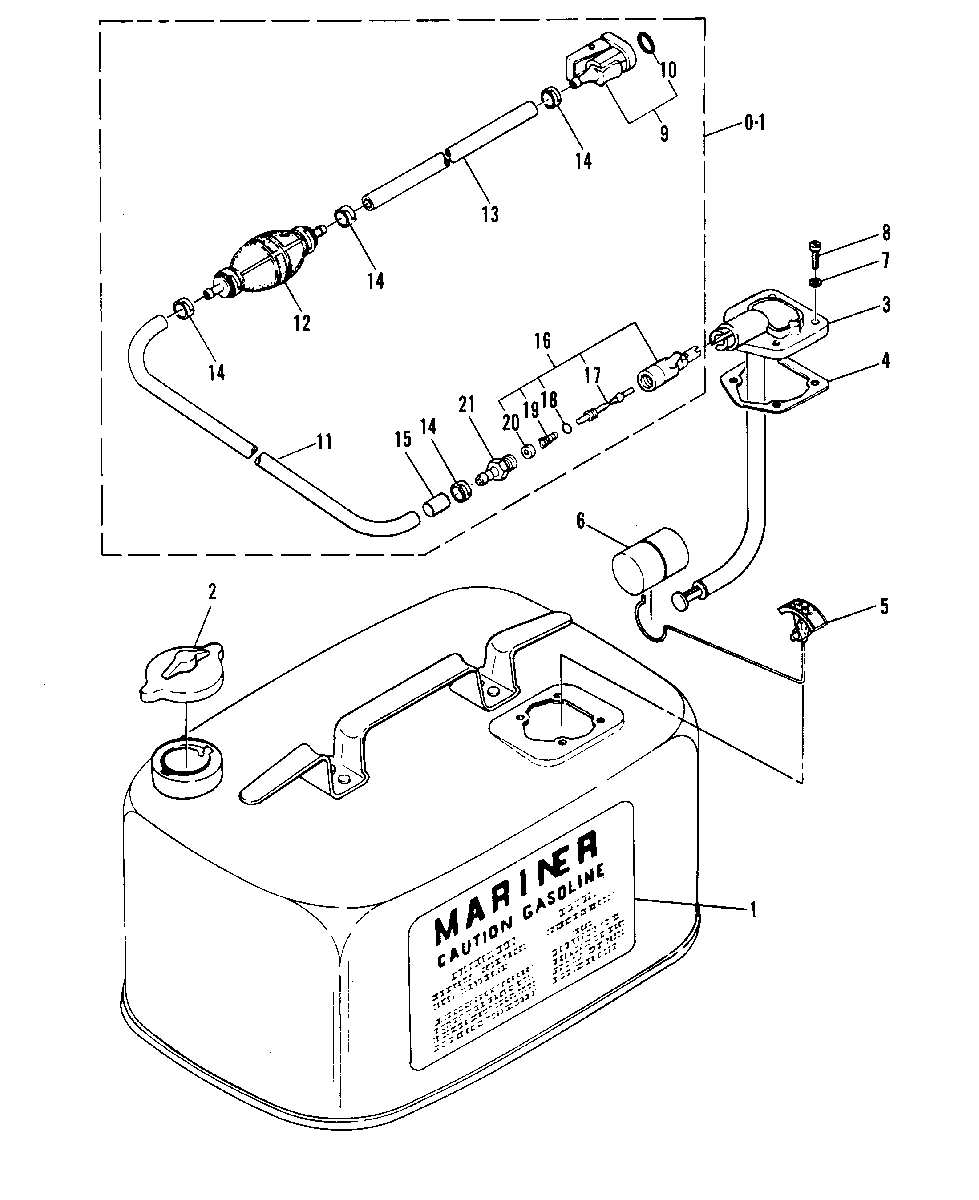

FUEL TANK AND FUEL LINE ASSEMBLY для Mariner - W-48 670-311996 THRU 334240
-
№АртикулНазвание
-
137-82984M DECAL, SIDEDECAL, SIDE
-
236-18962M FUEL TANK CAPFUEL TANK CAP
-
383618M FUEL METERFUEL METER
-
427-81320M GASKET, HOUSING OF TANKGASKET, HOUSING OF TANK
-
581318M INDICATOR, FUEL LEVELINDICATOR, FUEL LEVEL
-
681319M FLOAT, INDICATORFLOAT, INDICATOR
-
712-95501M WASHER, HOUSING SCREWWASHER, HOUSING SCREW
-
810-82496M SCREW, HOUSE ATTACHINGSCREW, HOUSE ATTACHING
-
0-132-877681Q8 FUEL LINE ASS'YFUEL LINE ASS'Y
-
922-14213Q FUEL CONNECTOR, ENGINE ENDFUEL CONNECTOR, ENGINE END
-
1025-82789M O-RINGO-RING
-
1132-94727M HOSE, CONNECTOR HOUSING TO BULBHOSE, CONNECTOR HOUSING TO BULB
-
1289396Q01 BULB, PRIMERBULB, PRIMER
-
1332-94727M HOSE, BULB TO CONNECTORHOSE, BULB TO CONNECTOR
-
1454-16725M CLAMP, HOSECLAMP, HOSE
-
1523-81327M COLLARCOLLAR
-
1630185Q3 BAYONET BODY ASS'YBAYONET BODY ASS'Y
-
1730185Q3 STEM, BAYONET BODY STEMSTEM, BAYONET BODY STEM
-
1825-16524 O-RING, BAYONET BODY STEMO-RING, BAYONET BODY STEM
-
1924-30189 SPRING, BAYONET BODY STEMSPRING, BAYONET BODY STEM
-
2030188 WASHER, CAPWASHER, CAP
-
2122-63187 FITTING, FUEL LINEFITTING, FUEL LINE
