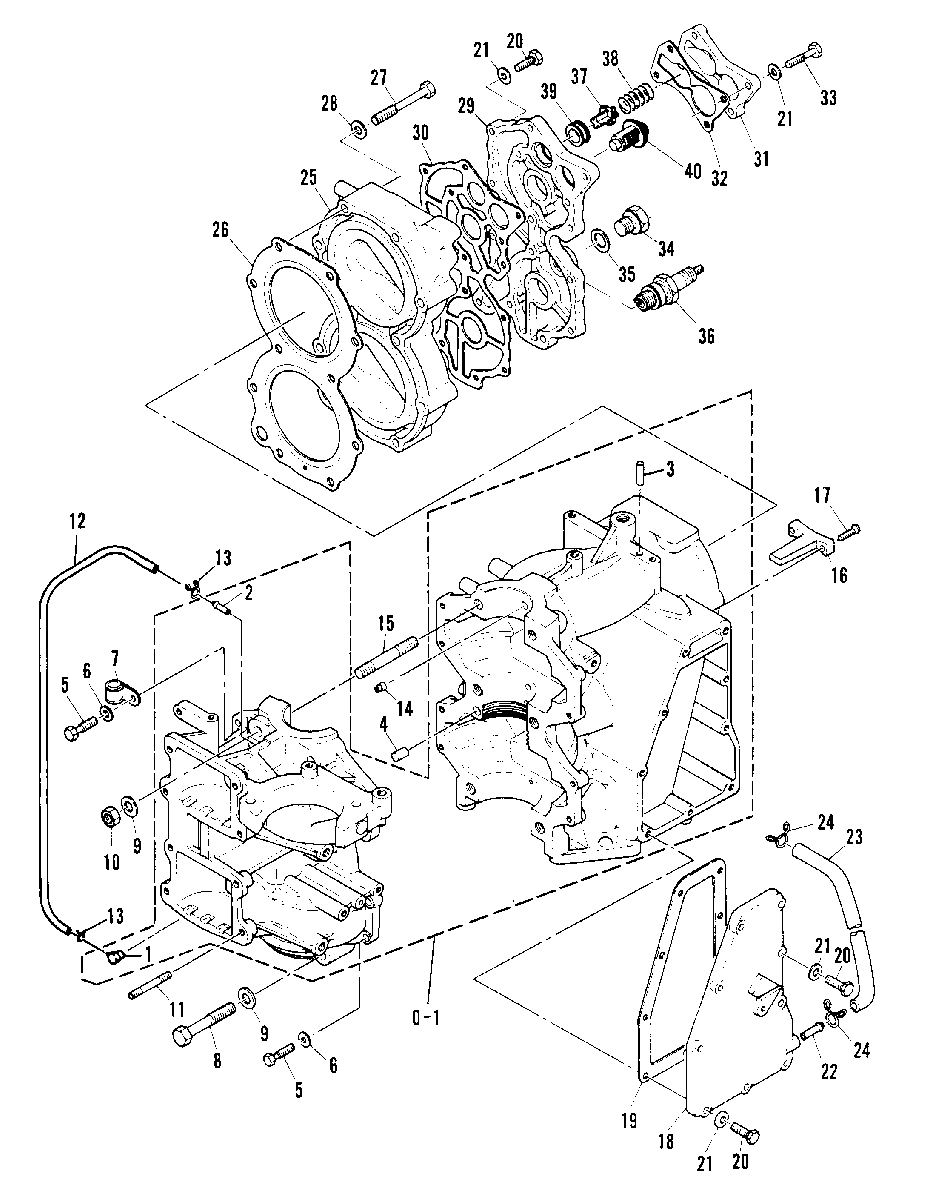

CRANKCASE AND CYLINDER HEAD для Mariner - W-48 670-311996 THRU 334240
-
№АртикулНазвание
-
0-1870-8913M CRANKCASE AND CYLINDER ASS'YCRANKCASE AND CYLINDER ASS'Y
-
121-80727M CHECK VALVE ASS'YCHECK VALVE ASS'Y
-
222-80122M FITTING, CRANKCASE DRAINFITTING, CRANKCASE DRAIN
-
317-82354M PIN, DOWELPIN, DOWEL
-
417-82368M PIN, DOWELPIN, DOWEL
-
510-82405M BOLTBOLT
-
612-81792M WASHERWASHER
-
754-82033M CLAMP, WIRECLAMP, WIRE
-
810-82410M BOLTBOLT
-
912-81807M WASHERWASHER
-
1011-82387M NUTNUT
-
1116-81735M STUDSTUD
-
1232-811045M HOSE, DRAINHOSE, DRAIN
-
1354-82046M CLAMP, HOSECLAMP, HOSE
-
1417-81258M LOCK, BEARINGLOCK, BEARING
-
1516-81743M STUDSTUD
-
1681255M ANODEANODE
-
1710-82532M SCREWSCREW
-
1881330M COVER, EXHAUST-OUTERCOVER, EXHAUST-OUTER
-
1927-81331M GASKET, EXHAUST COVERGASKET, EXHAUST COVER
-
2010-84058M BOLTBOLT
-
2112-82214M WASHER, LOCKWASHER, LOCK
-
2222-94716M FITTING, EXHAUST COVERFITTING, EXHAUST COVER
-
2332-81324M HOSE, EXHAUST COVERHOSE, EXHAUST COVER
-
2454-82047M CLAMP, HOSECLAMP, HOSE
-
25968-7974M HEAD, CYLINDERHEAD, CYLINDER
-
2627-19140 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
2710-82409M BOLTBOLT
-
2812-80564M WASHERWASHER
-
2981253M COVER, CYLINDER HEADCOVER, CYLINDER HEAD
-
3027-81254M GASKET, CYLINDER HEAD COVERGASKET, CYLINDER HEAD COVER
-
3181265M COVER, THERMOSTATCOVER, THERMOSTAT
-
3227-81266M GASKET, THERMOSTAT COVERGASKET, THERMOSTAT COVER
-
3310-83285M BOLTBOLT
-
3422-81926M PLUG, COVERPLUG, COVER
-
3527-81990M GASKET, COVER PLUGGASKET, COVER PLUG
-
3633-8M0114739 SPARK PLUG B-7HS-(NGK)SPARK PLUG B-7HS-(NGK)
-
3781267M VALVE, PRESSURE CONTROL (OPT)VALVE, PRESSURE CONTROL (OPT)
-
3824-82086M SPRING, COMPRESSION (OPT)SPRING, COMPRESSION (OPT)
-
3925-82067M GROMMET (OPT)GROMMET (OPT)
-
4099080M THERMOSTAT (OPT)THERMOSTAT (OPT)
-
4041301M POWERHEAD ASS'Y, COMPLETE
FOR REPLACEMENT OF POWERHEAD ASSEMBLY, COMPLETE; WHICH INCLUDES CRANKCASE ASSEMBLY, CYLINDER HEAD, PISTON, CONNECTING ROD, CRANKSHAFT, BEARINGS, ETC. - ORDER POWERHEAD ASSEMBLY (92663M). REPLACEMENT PARTSPOWERHEAD ASS'Y, COMPLETE
FOR REPLACEMENT OF POWERHEAD ASSEMBLY, COMPLETE; WHICH INCLUDES CRANKCASE ASSEMBLY, CYLINDER HEAD, PISTON, CONNECTING ROD, CRANKSHAFT, BEARINGS, ETC. - ORDER POWERHEAD ASSEMBLY (92663M). REPLACEMENT PARTS -
4027-84168M GASKET SET, POWERHEAD
REPLACEMENT PARTSGASKET SET, POWERHEAD
REPLACEMENT PARTS
