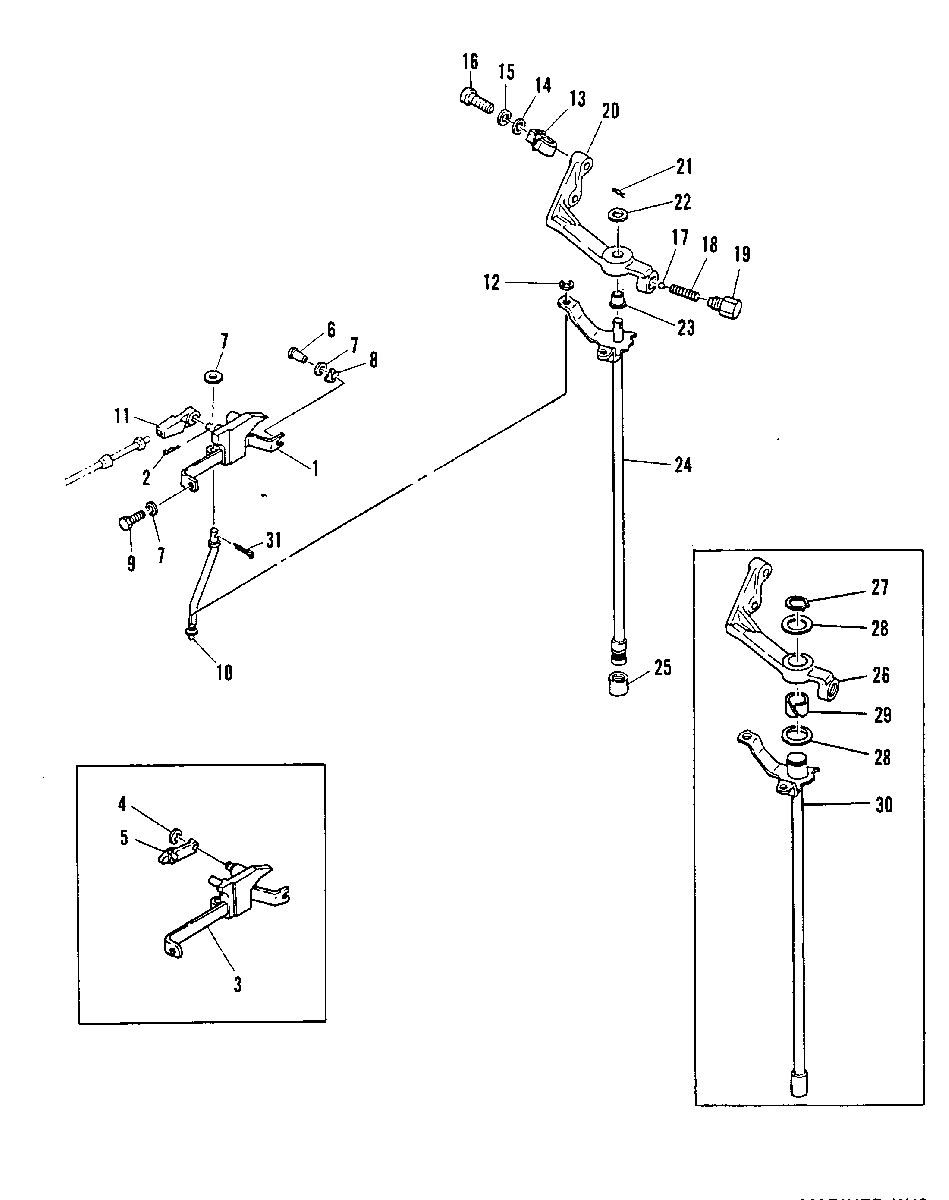

GEAR SHIFT LINKAGE для Mariner - W-48 670-311996 THRU 334240

  • №
    Артикул
    Название
  • 1
    98919M BRACKET, SHIFT
    SERIAL 00005796-09999999
    BRACKET, SHIFT
    SERIAL 00005796-09999999
  • 2
    18-82053M PIN, COTTER
    SERIAL 00005796-09999999
    PIN, COTTER
    SERIAL 00005796-09999999
  • 3
    98919M BRACKET, SHIFT
    SERIAL 00000000-00005795
    BRACKET, SHIFT
    SERIAL 00000000-00005795
  • 4
    53-82330M SNAP RING
    SERIAL 00000000-00005795
    SNAP RING
    SERIAL 00000000-00005795
  • 5
    92657M RETAINER, CLEVIS
    SERIAL 00000000-00005795
    RETAINER, CLEVIS
    SERIAL 00000000-00005795
  • 6
    17-82137M PIN, CLEVIS
    PIN, CLEVIS
  • 7
    12-82214M WASHER, LOCK
    WASHER, LOCK
  • 8
    13-81866M WASHER, WAVE
    WASHER, WAVE
  • 9
    10-82423M BOLT
    BOLT
  • 10
    84209M LEVER, SHIFT ROD
    LEVER, SHIFT ROD
  • 11
    81480M CLEVIS, SHIFT CONTROL CABLE
    CLEVIS, SHIFT CONTROL CABLE
  • 12
    53-82330M SNAP RING
    SNAP RING
  • 13
    54-92664M CLAMP
    CLAMP
  • 14
    12-82217M WASHER
    WASHER
  • 15
    13-82215M WASHER, LOCK
    WASHER, LOCK
  • 16
    10-82441M BOLT
    BOLT
  • 17
    92659M BALL, DETENT
    BALL, DETENT
  • 18
    24-82081M SPRING, DETENT
    SPRING, DETENT
  • 19
    23-80635M RETAINER, COMPRESSION SPRING
    RETAINER, COMPRESSION SPRING
  • 20
    98920M BRACKET, SHIFT ROD
    SERIAL 00005796-09999999
    BRACKET, SHIFT ROD
    SERIAL 00005796-09999999
  • 21
    18-82053M PIN, COTTER
    SERIAL 00005796-09999999
    PIN, COTTER
    SERIAL 00005796-09999999
  • 22
    12-82216M WASHER
    SERIAL 00005796-09999999
    WASHER
    SERIAL 00005796-09999999
  • 23
    23-98923M BUSHING
    SERIAL 00005796-09999999
    BUSHING
    SERIAL 00005796-09999999
  • 24
    19169M SHIFT ROD ASS'Y, UPPER (M)
    SERIAL 00005796-09999999
    SHIFT ROD ASS'Y, UPPER (M)
    SERIAL 00005796-09999999
  • 24
    19170M SHIFT ROD ASS'Y, UPPER (ML)
    SERIAL 00005796-09999999
    SHIFT ROD ASS'Y, UPPER (ML)
    SERIAL 00005796-09999999
  • 25
    19170M BOOT, SHIFT ROD
    SERIAL 00005796-09999999
    BOOT, SHIFT ROD
    SERIAL 00005796-09999999
  • 26
    82556M BRACKET, SHIFT ROD
    SERIAL 00000000-00005795
    BRACKET, SHIFT ROD
    SERIAL 00000000-00005795
  • 27
    53-19259M SNAP RING
    SERIAL 00000000-00005795
    SNAP RING
    SERIAL 00000000-00005795
  • 28
    12-81858M SPACER, SHIFT ROD
    SERIAL 00000000-00005795
    SPACER, SHIFT ROD
    SERIAL 00000000-00005795
  • 29
    23-81953M BUSHING
    SERIAL 00000000-00005795
    BUSHING
    SERIAL 00000000-00005795
  • 30
    81670M SHIFT ROD ASS'Y, UPPER (M)
    SERIAL 00000000-00005795
    SHIFT ROD ASS'Y, UPPER (M)
    SERIAL 00000000-00005795
  • 30
    81671M SHIFT ROD ASS'Y, UPPER (ML)
    SERIAL 00000000-00005795
    SHIFT ROD ASS'Y, UPPER (ML)
    SERIAL 00000000-00005795
  • 31
    18-43089M PIN, COTTER
    SERIAL 00000000-00000595
    PIN, COTTER
    SERIAL 00000000-00000595
