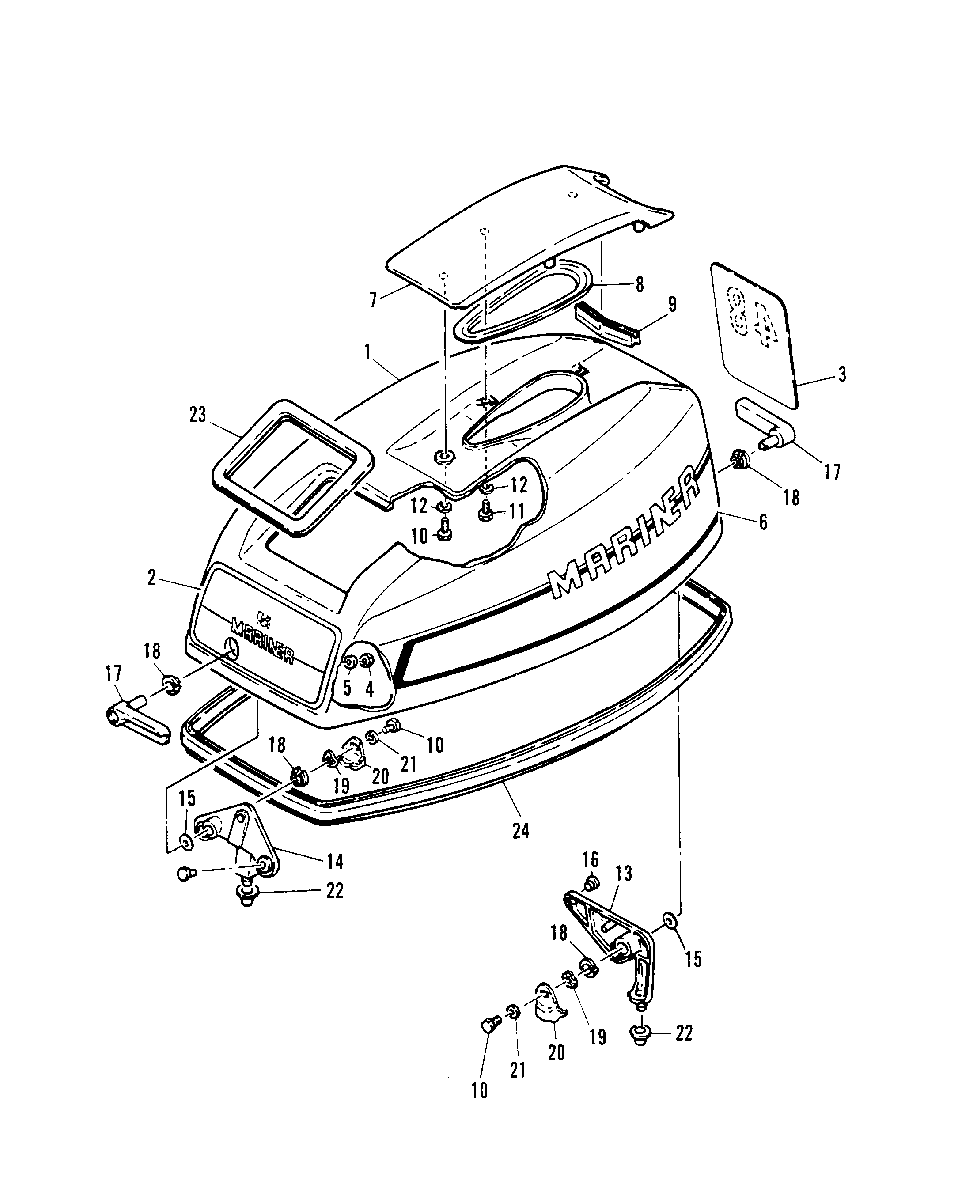

TOP COWLING для Mariner - W-48 670-002161 THRU 007190

  • №
    Артикул
    Название
  • 1
    2168-8614M TOP COWLING ASS'Y
    SERIAL 00006576-09999999
    TOP COWLING ASS'Y
    SERIAL 00006576-09999999
  • 1
    2168-8614M TOP COWLING ASS'Y
    SERIAL 00000000-00006575
    TOP COWLING ASS'Y
    SERIAL 00000000-00006575
  • 2
    97797M DECAL, FRONT
    SERIAL 00006576-09999999
    DECAL, FRONT
    SERIAL 00006576-09999999
  • 2
    82912M APPLIQUE, FRONT
    SERIAL 00000000-00006575
    APPLIQUE, FRONT
    SERIAL 00000000-00006575
  • 3
    83710M DECAL, REAR
    SERIAL 00000000-00006575
    DECAL, REAR
    SERIAL 00000000-00006575
  • 4
    11-82388M NUT
    SERIAL 00000000-00006575
    NUT
    SERIAL 00000000-00006575
  • 5
    12-82211M WASHER
    SERIAL 00000000-00006575
    WASHER
    SERIAL 00000000-00006575
  • 6
    37-98941M DECAL, SIDE AND REAR SET
    SERIAL 00006576-09999999
    DECAL, SIDE AND REAR SET
    SERIAL 00006576-09999999
  • 6
    37-82865M DECAL, SIDE SET
    SERIAL 00000000-00006575
    DECAL, SIDE SET
    SERIAL 00000000-00006575
  • 7
    83024M COVER, AIR DUCT
    COVER, AIR DUCT
  • 8
    83025M SEAL
    SEAL
  • 9
    83039M SEAL, RUBBER
    SEAL, RUBBER
  • 10
    10-91772M BOLT
    BOLT
  • 11
    10-826957M BOLT
    BOLT
  • 12
    12-82214M WASHER, LOCK
    WASHER, LOCK
  • 13
    83040M HOLDER, CLAMP BAND
    HOLDER, CLAMP BAND
  • 14
    83041M HOLDER, CLAMP BAND
    HOLDER, CLAMP BAND
  • 15
    12-97098M WASHER
    WASHER
  • 16
    17-82982M RIVET
    RIVET
  • 17
    83026M LEVER, CLAMP
    LEVER, CLAMP
  • 18
    23-41823M BUSHING
    BUSHING
  • 19
    13-81871M WASHER, WAVE
    WASHER, WAVE
  • 20
    83027M LEVER
    LEVER
  • 21
    12-81794M WASHER
    WASHER
  • 22
    83042M DAMPER
    DAMPER
  • 23
    81311M SEAL
    SEAL
  • 24
    83043M SEAL
    SEAL
