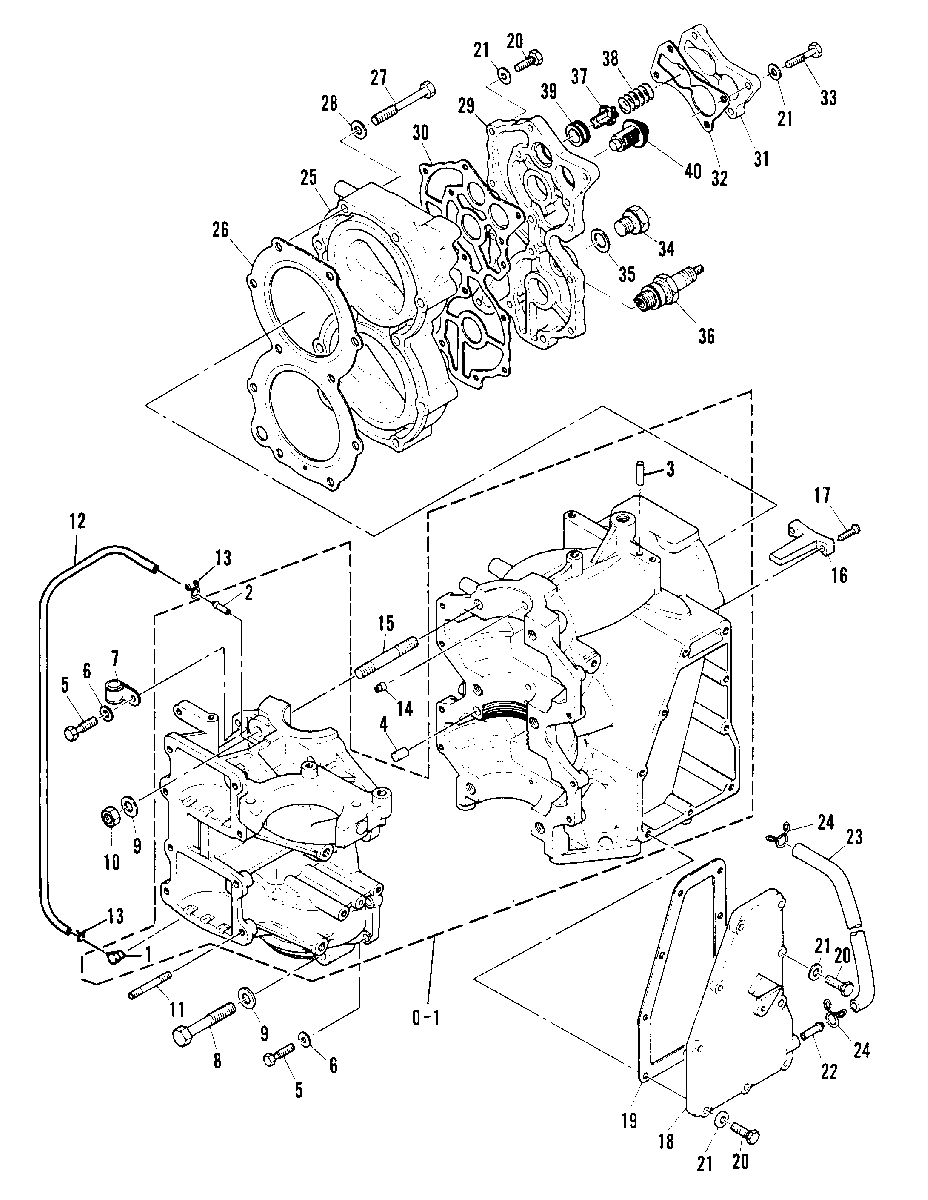

CRANKCASE AND CYLINDER HEAD для Mariner - W-48 670-002161 THRU 007190

  • №
    Артикул
    Название
  • 0-1
    870-8913M CRANKCASE AND CYLINDER ASS'Y
    CRANKCASE AND CYLINDER ASS'Y
  • 1
    21-80727M CHECK VALVE ASS'Y
    CHECK VALVE ASS'Y
  • 2
    22-80122M FITTING, CRANKCASE DRAIN
    FITTING, CRANKCASE DRAIN
  • 3
    17-82354M PIN, DOWEL
    PIN, DOWEL
  • 4
    17-82368M PIN, DOWEL
    PIN, DOWEL
  • 5
    10-82405M BOLT
    BOLT
  • 6
    12-81792M WASHER
    WASHER
  • 7
    54-82033M CLAMP, WIRE
    CLAMP, WIRE
  • 8
    10-82410M BOLT
    BOLT
  • 9
    12-81807M WASHER
    WASHER
  • 10
    11-82387M NUT
    NUT
  • 11
    16-81735M STUD
    STUD
  • 12
    32-811045M HOSE, DRAIN
    HOSE, DRAIN
  • 13
    54-82046M CLAMP, HOSE
    CLAMP, HOSE
  • 14
    17-81258M LOCK, BEARING
    LOCK, BEARING
  • 15
    16-81743M STUD
    STUD
  • 16
    81255M ANODE
    ANODE
  • 17
    10-82532M SCREW
    SCREW
  • 18
    81330M COVER, EXHAUST-OUTER
    COVER, EXHAUST-OUTER
  • 19
    27-81331M GASKET, EXHAUST COVER
    GASKET, EXHAUST COVER
  • 20
    10-84058M BOLT
    BOLT
  • 21
    12-82214M WASHER, LOCK
    WASHER, LOCK
  • 22
    22-94716M FITTING, EXHAUST COVER
    FITTING, EXHAUST COVER
  • 23
    32-81324M HOSE, EXHAUST COVER
    HOSE, EXHAUST COVER
  • 24
    54-82047M CLAMP, HOSE
    CLAMP, HOSE
  • 25
    968-7974M HEAD, CYLINDER
    HEAD, CYLINDER
  • 26
    27-19140 GASKET, CYLINDER HEAD
    GASKET, CYLINDER HEAD
  • 27
    10-82409M BOLT
    BOLT
  • 28
    12-80564M WASHER
    WASHER
  • 29
    81253M COVER, CYLINDER HEAD
    COVER, CYLINDER HEAD
  • 30
    27-81254M GASKET, CYLINDER HEAD COVER
    GASKET, CYLINDER HEAD COVER
  • 31
    81265M COVER, THERMOSTAT
    COVER, THERMOSTAT
  • 32
    27-81266M GASKET, THERMOSTAT COVER
    GASKET, THERMOSTAT COVER
  • 33
    10-83285M BOLT
    BOLT
  • 34
    22-81926M PLUG, COVER
    PLUG, COVER
  • 35
    27-81990M GASKET, COVER PLUG
    GASKET, COVER PLUG
  • 36
    33-8M0114739 SPARK PLUG B-7HS-(NGK)
    SPARK PLUG B-7HS-(NGK)
  • 37
    81267M VALVE, PRESSURE CONTROL (OPT)
    VALVE, PRESSURE CONTROL (OPT)
  • 38
    24-82086M SPRING, COMPRESSION (OPT)
    SPRING, COMPRESSION (OPT)
  • 39
    25-82067M GROMMET (OPT)
    GROMMET (OPT)
  • 40
    99080M THERMOSTAT (OPT)
    THERMOSTAT (OPT)
  • 40
    41301M POWERHEAD ASS'Y, COMPLETE
    FOR REPLACEMENT OF POWERHEAD ASSEMBLY, COMPLETE; WHICH INCLUDES CRANKCASE ASSEMBLY, CYLINDER HEAD, PISTON, CONNECTING ROD, CRANKSHAFT, BEARINGS, ETC. - ORDER POWERHEAD ASSEMBLY (92663M). REPLACEMENT PARTS
    POWERHEAD ASS'Y, COMPLETE
    FOR REPLACEMENT OF POWERHEAD ASSEMBLY, COMPLETE; WHICH INCLUDES CRANKCASE ASSEMBLY, CYLINDER HEAD, PISTON, CONNECTING ROD, CRANKSHAFT, BEARINGS, ETC. - ORDER POWERHEAD ASSEMBLY (92663M). REPLACEMENT PARTS
  • 40
    27-84168M GASKET SET, POWERHEAD
    REPLACEMENT PARTS
    GASKET SET, POWERHEAD
    REPLACEMENT PARTS
