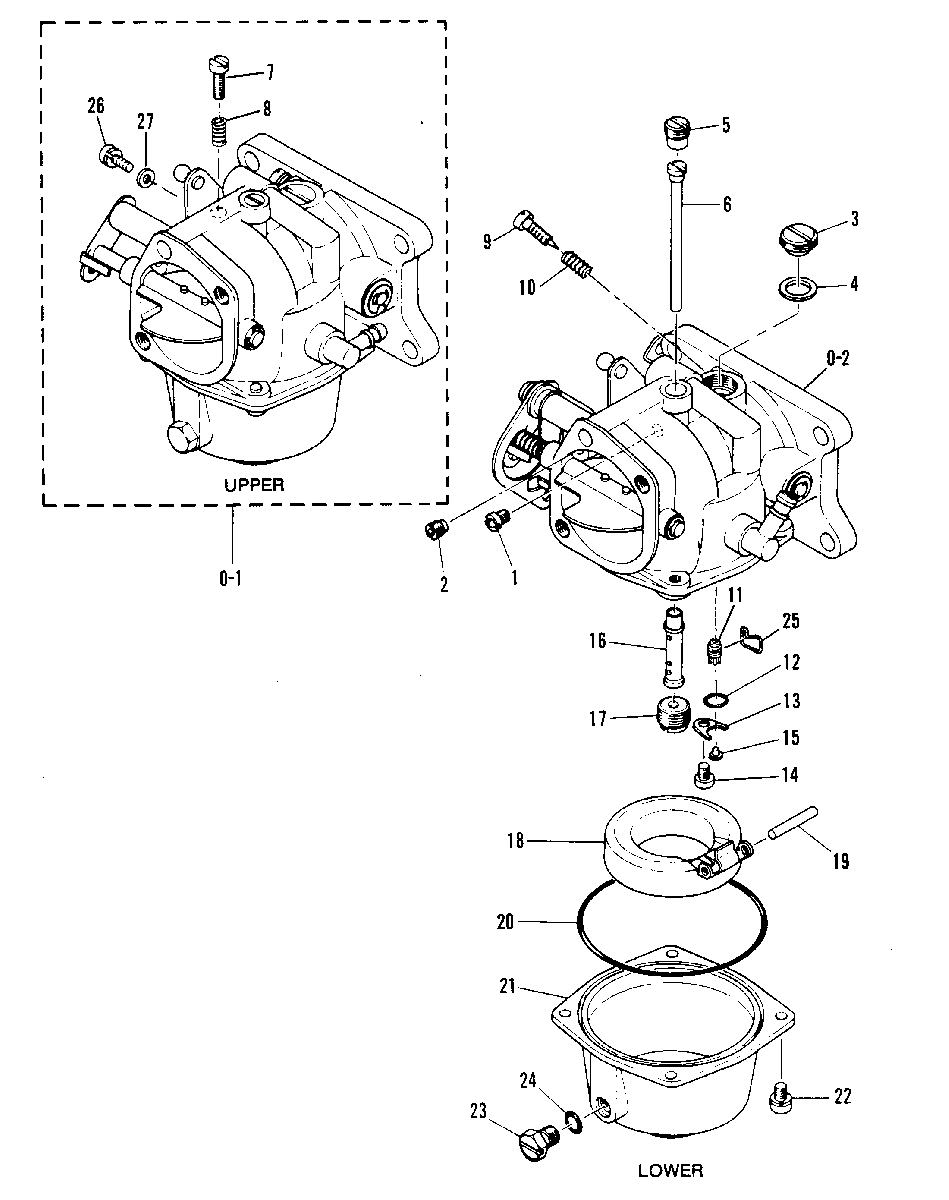

CARBURETOR для Mariner - W-48 670-002161 THRU 007190

  • №
    Артикул
    Название
  • 0-1
    1383-7976M CARBURETOR ASS'Y (UPPER)
    CARBURETOR ASS'Y (UPPER)
  • 0-2
    1383-7977M CARBURETOR ASS'Y (LOWER)
    CARBURETOR ASS'Y (LOWER)
  • 1
    81289M JET, PILOT AIR (#105)
    JET, PILOT AIR (#105)
  • 2
    92678M JET, MAIN AIR (#135)
    JET, MAIN AIR (#135)
  • 3
    10-81292M SCREW, PLUG
    SCREW, PLUG
  • 4
    12-92636M WASHER
    WASHER
  • 5
    10-97080M SCREW, PLUG
    SERIAL 00004321-09999999
    SCREW, PLUG
    SERIAL 00004321-09999999
  • 5
    10-81279M SCREW, PLUG
    SERIAL 00000000-00004320
    SCREW, PLUG
    SERIAL 00000000-00004320
  • 6
    81282M JET, PILOT (#92)
    JET, PILOT (#92)
  • 7
    10-81277M SCREW, THROTTLE (UPPER)
    SCREW, THROTTLE (UPPER)
  • 8
    24-82080M SPRING, COMPRESSION (UPPER)
    SPRING, COMPRESSION (UPPER)
  • 9
    10-81281M SCREW, IDLE SPEED
    SCREW, IDLE SPEED
  • 10
    24-82073M SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 11
    82780M VALVE SEAT ASS'Y
    VALVE SEAT ASS'Y
  • 12
    25-82261M O-RING, VALVE
    O-RING, VALVE
  • 13
    80026M RETAINER, VALVE SEAT
    RETAINER, VALVE SEAT
  • 14
    10-82499M SCREW
    SCREW
  • 15
    17-92639M PIN, VALVE
    PIN, VALVE
  • 16
    81287M NOZZLE, MAIN
    NOZZLE, MAIN
  • 17
    92637M JET, MAIN (#165)
    JET, MAIN (#165)
  • 18
    97848M FLOAT
    FLOAT
  • 19
    17-81278M PIN, FLOAT
    PIN, FLOAT
  • 20
    25-82288M O-RING
    O-RING
  • 21
    81290M BOWL, FLOAT
    BOWL, FLOAT
  • 22
    10-81758M SCREW W/WASHER
    SCREW W/WASHER
  • 23
    10-81293M SCREW, DRAIN
    SCREW, DRAIN
  • 24
    25-81695M O-RING
    O-RING
  • 25
    54-8M0120624 CLIP
    CLIP
  • 26
    10-97082M SCREW W/WASHER (UPPER)
    SERIAL 00002731-09999999
    SCREW W/WASHER (UPPER)
    SERIAL 00002731-09999999
  • 26
    10-83371M SCREW W/WASHER (UPPER)
    SERIAL 00000000-00002730
    SCREW W/WASHER (UPPER)
    SERIAL 00000000-00002730
  • 27
    12-83372M WASHER (UPPER)
    WASHER (UPPER)
  • 27
    84419M REPAIR KIT, CARBURETOR
    REPLACEMENT PARTS
    REPAIR KIT, CARBURETOR
    REPLACEMENT PARTS
