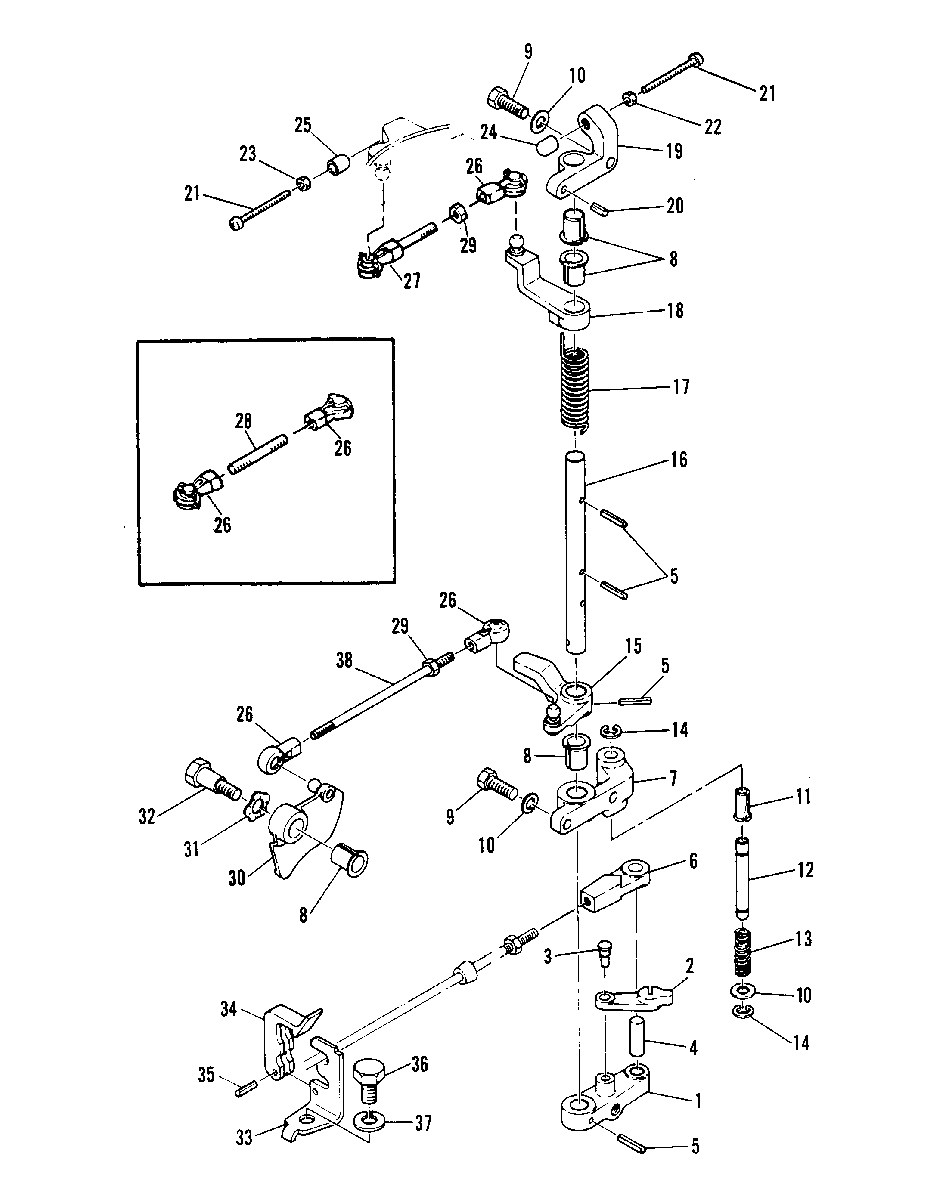

THROTTLE CONTROL для Mariner - W-48 670-002161 THRU 007190

  • №
    Артикул
    Название
  • 1
    81345M LEVER, C.D.I. CONTROL
    LEVER, C.D.I. CONTROL
  • 2
    81341M STOPPER, FREE ACCEL-LINK
    STOPPER, FREE ACCEL-LINK
  • 3
    17-82976M PIN
    PIN
  • 4
    17-82367M PIN,DOWEL
    PIN,DOWEL
  • 5
    17-82149M PIN, ROLL
    PIN, ROLL
  • 6
    81480M CLEVIS, THROTTLE CABLE
    CLEVIS, THROTTLE CABLE
  • 7
    81350M BRACKET, SHAFT
    BRACKET, SHAFT
  • 8
    23-81946M BUSHING
    BUSHING
  • 9
    10-82423M BOLT
    BOLT
  • 10
    12-82214M WASHER, LOCK
    WASHER, LOCK
  • 11
    23-41311M BUSHING
    BUSHING
  • 12
    81403M STOP, SHAFT BRACKET
    STOP, SHAFT BRACKET
  • 13
    24-82074M SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 14
    53-82330M SNAP RING
    SNAP RING
  • 15
    81346M LEVER, C.D.I. CONTROL
    LEVER, C.D.I. CONTROL
  • 16
    81347M SHAFT, LINK CONNECTING
    SHAFT, LINK CONNECTING
  • 17
    24-82113M SPRING, TORSION
    SPRING, TORSION
  • 18
    81344M LEVER, C.D.I. CONTROL
    LEVER, C.D.I. CONTROL
  • 19
    81349M BRACKET, SHAFT-UPPER
    BRACKET, SHAFT-UPPER
  • 20
    17-82154M PIN, ROLL
    PIN, ROLL
  • 21
    10-83050M SCREW
    SCREW
  • 22
    11-82390M NUT
    NUT
  • 23
    11-81764M NUT
    NUT
  • 24
    81415M CAP
    CAP
  • 25
    97087M CAP
    CAP
  • 26
    16715M CLEVIS
    SERIAL 00006576-09999999
    CLEVIS
    SERIAL 00006576-09999999
  • 26
    16715M CLEVIS
    SERIAL 00000000-00006575
    CLEVIS
    SERIAL 00000000-00006575
  • 27
    98943M ROD, CONTROL
    SERIAL 00006576-09999999
    ROD, CONTROL
    SERIAL 00006576-09999999
  • 28
    81348M ROD, CONTROL
    SERIAL 00000000-00006575
    ROD, CONTROL
    SERIAL 00000000-00006575
  • 29
    11-82388M NUT
    SERIAL 00006576-09999999
    NUT
    SERIAL 00006576-09999999
  • 29
    11-82388M NUT
    SERIAL 00000000-00006575
    NUT
    SERIAL 00000000-00006575
  • 30
    81334M CAM
    CAM
  • 31
    13-81868M WASHER, WAVE
    WASHER, WAVE
  • 32
    10-81713M BOLT
    BOLT
  • 33
    81483M BRACKET, REMOTE CONTROL
    BRACKET, REMOTE CONTROL
  • 34
    81484M CLAMP, CABLE
    CLAMP, CABLE
  • 35
    17-82146M PIN, ROLL
    PIN, ROLL
  • 36
    10-82437M BOLT
    BOLT
  • 37
    13-82215M WASHER, LOCK
    WASHER, LOCK
  • 38
    81333M ROD, LINK
    ROD, LINK
