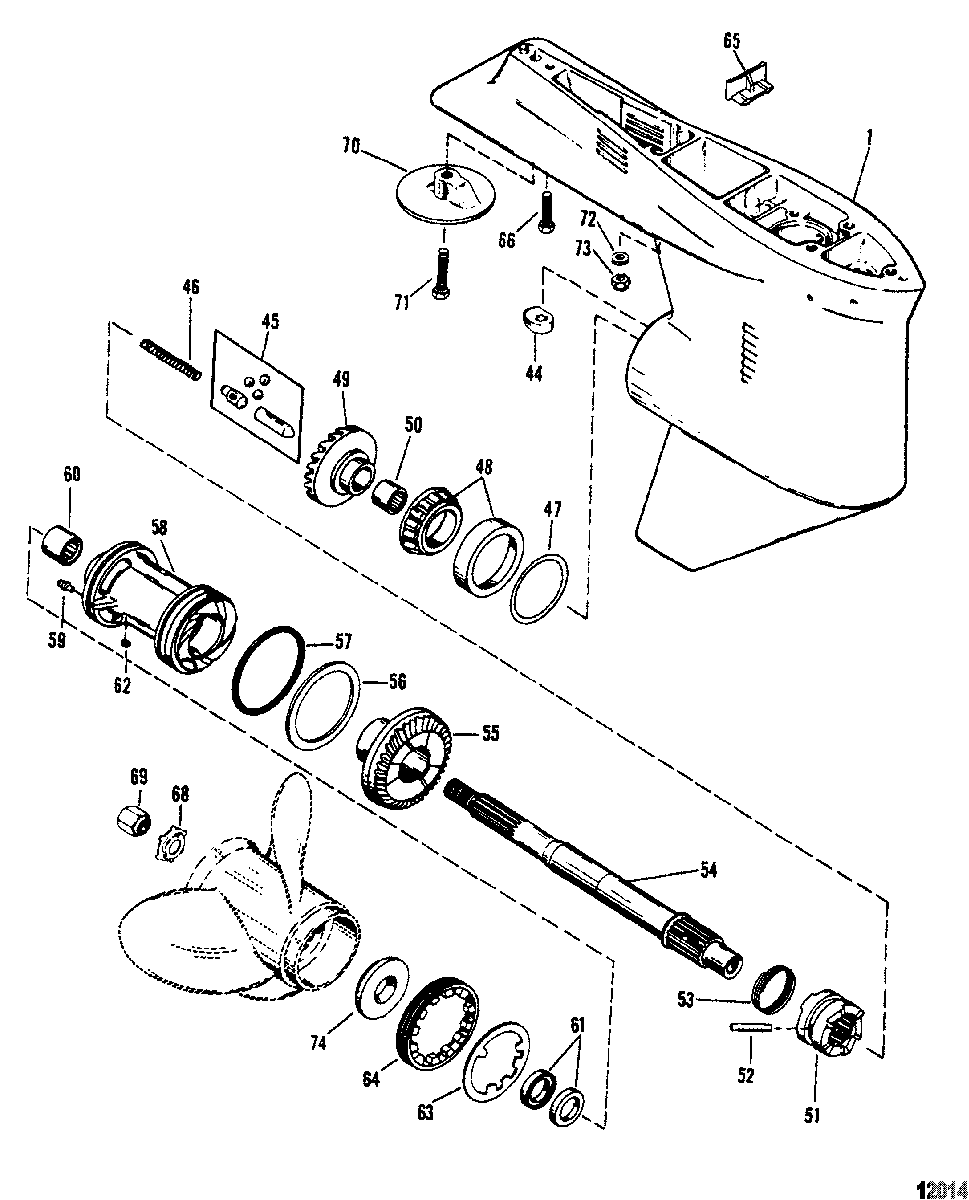

Gear Housing, Propshaft 1.78:1 Gear Ratio 4.25 Inch Dia для Mariner - V-175 (MAG/EFI) 0D082000 THRU 0G303045
-
№АртикулНазвание
-
11674-814247T1 GEAR HOUSING ASSEMBLY, Basic - BlackGEAR HOUSING ASSEMBLY, Basic - Black
-
11674-814247T1 GEAR HOUSING ASSEMBLY, Basic - GrayGEAR HOUSING ASSEMBLY, Basic - Gray
-
44760394 CAM, Shift ControlCAM, Shift Control
-
45850315A1 FOLLOWER KIT, CamFOLLOWER KIT, Cam
-
4624-30622 SPRINGSPRING
-
4715-8M0063266 SHIM SETSHIM SET
-
4831-30894A1 BEARING SET, Cup And ConeBEARING SET, Cup And Cone
-
4943-16279A2 GEAR ASSEMBLY, ForwardGEAR ASSEMBLY, Forward
-
5031-30895T BEARING, NeedleBEARING, Needle
-
5152-822539T CLUTCHCLUTCH
-
5217-8M0100263 PIN, CrossPIN, Cross
-
5324-30893 SPRINGSPRING
-
5444-12238T PROPELLER SHAFTPROPELLER SHAFT
-
55N.S.S. Not Sold Separate, Reverse Gear (Part Of 43- 16279A 2)Not Sold Separate, Reverse Gear (Part Of 43- 16279A 2)
-
5612-76358 THRUST WASHERTHRUST WASHER
-
5725-29976 O-RINGO-RING
-
5841529T2 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
5922-98727 FITTING, GreaseFITTING, Grease
-
6031-30956T BEARING, NeedleBEARING, Needle
-
6126-76868 SEALSEAL
-
6228-30281 KEYKEY
-
6314-52700 TAB WASHERTAB WASHER
-
6452699 COVERCOVER
-
658M0039169 FILLER BLOCKFILLER BLOCK
-
6610-65210 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
6814-816629Q TAB WASHERTAB WASHER
-
6911-52707Q1 PROP NUT KIT, (.750-16)PROP NUT KIT, (.750-16)
-
7097-31640Q4 TRIM TABTRIM TAB
-
7110-806327 SCREW, (.437-14 x 1.750)SCREW, (.437-14 x 1.750)
-
7212-45176 WASHER, (.453 x .812 x .105) Stainless SteelWASHER, (.453 x .812 x .105) Stainless Steel
-
7311-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
7413191Q01 THRUST WASHERTHRUST WASHER
-
-27-815791A92 GASKET SET, EngineGASKET SET, Engine
-
-26-89238A2 SEAL KITSEAL KIT
