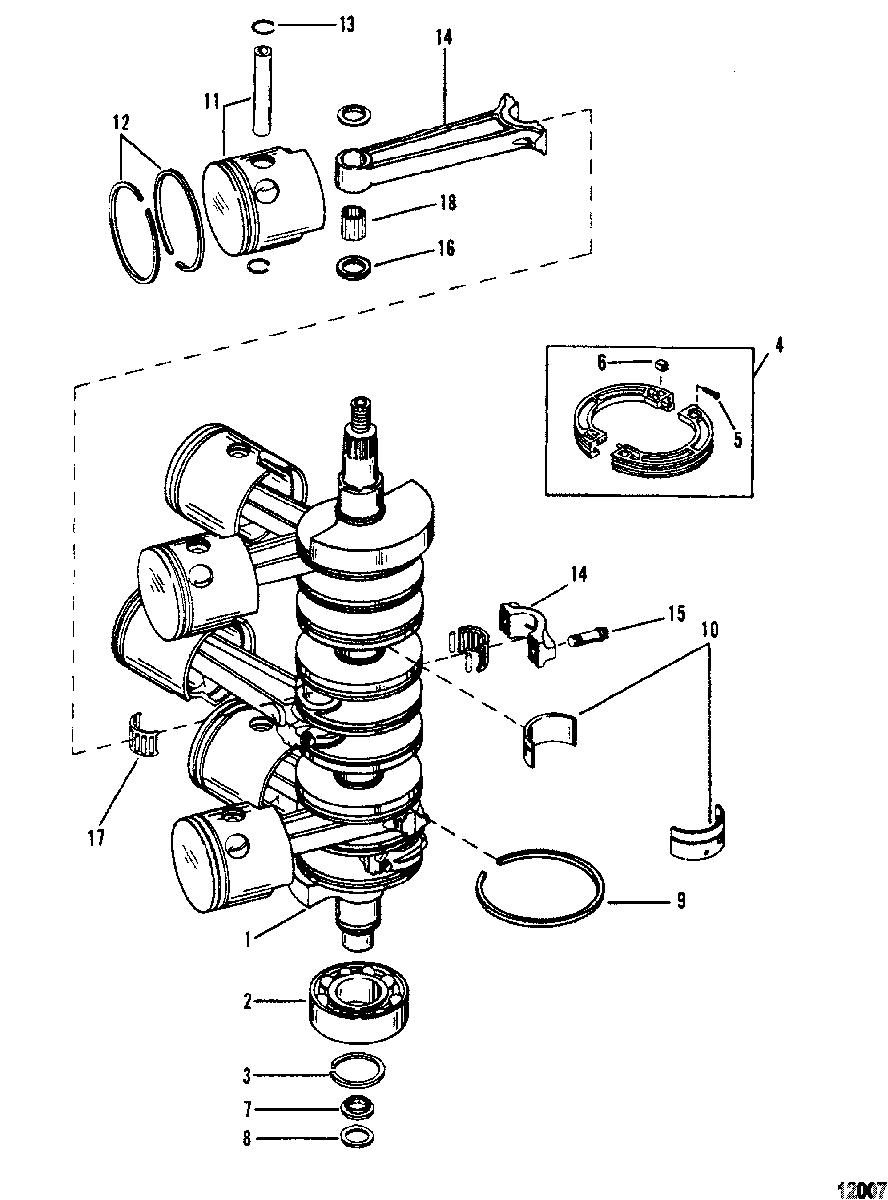

Crankshaft, Pistons And Connecting Rods для Mariner - V-175 (MAG/EFI) 0D082000 THRU 0G303045

№

Артикул

Название
1

455-9536T4 CRANKSHAFT ASSEMBLY

CRANKSHAFT ASSEMBLY

294 510 ₽
2

30-67923T BEARING, Ball, Lower

BEARING, Ball, Lower

5 390 ₽
3

53-67446 RING

RING

230 ₽
4

43-14513A09 GEAR SEGMENT KIT, Drive

GEAR SEGMENT KIT, Drive

7 950 ₽
5

10-813073 SCREW, (#6-32 x .620) Socket Head

SCREW, (#6-32 x .620) Socket Head

150 ₽
6

11-813134 NUT, (#6-32) Special

NUT, (#6-32) Special

440 ₽
7

54196A6 CARRIER ASSEMBLY

CARRIER ASSEMBLY

1 530 ₽
8

65800 PACKING

PACKING

300 ₽
9

39-67377T RING, Sealing, Sealing - Crankshaft

RING, Sealing, Sealing - Crankshaft

1 140 ₽
10

31-16756A6 BEARING KIT, Crankshaft

BEARING KIT, Crankshaft

10 750 ₽
11

785-9738T9 PISTON ASSEMBLY, Starboard - Standard
SN# 0G052594 & Below

PISTON ASSEMBLY, Starboard - Standard
SN# 0G052594 & Below

17 440 ₽
11

785-9738T10 PISTON ASSEMBLY, Starboard (.015 O.S.)
SN# 0G052594 & Below

PISTON ASSEMBLY, Starboard (.015 O.S.)
SN# 0G052594 & Below

23 550 ₽
11

785-9737T9 PISTON ASSEMBLY, Port - Standard
SN# 0G052594 & Below

PISTON ASSEMBLY, Port - Standard
SN# 0G052594 & Below

17 760 ₽
11

785-9737A10 PISTON ASSEMBLY, Port (.015 O.S.)
SN# 0G052594 & Below

PISTON ASSEMBLY, Port (.015 O.S.)
SN# 0G052594 & Below

25 110 ₽
12

39-815515A12 RING SET, Piston, Standard (1.50 MM)
SN# 0G052594 & Below

RING SET, Piston, Standard (1.50 MM)
SN# 0G052594 & Below

28 280 ₽
12

39-815268A4 RING SET, Piston (.015 O.S.) (1.50 MM)
SN# 0G052594 & Below

RING SET, Piston (.015 O.S.) (1.50 MM)
SN# 0G052594 & Below

16 010 ₽
13

53-857196 RING, Lock
SN# 0G052594 & Below

RING, Lock
SN# 0G052594 & Below

100 ₽
11

785-9738T9 PISTON ASSEMBLY, Standard, Starboard - Standard
SN# 0G052595 & Up

PISTON ASSEMBLY, Standard, Starboard - Standard
SN# 0G052595 & Up

17 440 ₽
11

785-9738T10 PISTON ASSEMBLY, .015 Oversize, Starboard (.015 O.S.)
SN# 0G052595 & Up

PISTON ASSEMBLY, .015 Oversize, Starboard (.015 O.S.)
SN# 0G052595 & Up

23 550 ₽
11

785-9737T9 PISTON ASSEMBLY, Standard, Port Standard
SN# 0G052595 & Up

PISTON ASSEMBLY, Standard, Port Standard
SN# 0G052595 & Up

17 760 ₽
11

785-9737A10 PISTON ASSEMBLY, .015 Oversize, Port (.015 O.S.)
SN# 0G052595 & Up

PISTON ASSEMBLY, .015 Oversize, Port (.015 O.S.)
SN# 0G052595 & Up

25 110 ₽
12

39-822321A12 RING KIT, Piston - Standard, Standard (2MM)
SN# 0G052595 & Up

RING KIT, Piston - Standard, Standard (2MM)
SN# 0G052595 & Up

20 280 ₽
12

39-822321A1 RING KIT, Piston - .015 Oversize (.015 O.S.) (2MM)
SN# 0G052595 & Up

RING KIT, Piston - .015 Oversize (.015 O.S.) (2MM)
SN# 0G052595 & Up

33 290 ₽
13

53-857196 RING, Lock
SN# 0G052595 & Up

RING, Lock
SN# 0G052595 & Up

100 ₽
14

644-818141A13 CONNECTING ROD KIT

CONNECTING ROD KIT

41 260 ₽
15

10-763491 SCREW, (.312-24 x .875), Connecting Rod

SCREW, (.312-24 x .875), Connecting Rod

460 ₽
16

12-8M0012298 WASHER, Needle Locating

WASHER, Needle Locating

450 ₽
17

31-8M0045428 BEARING KIT

BEARING KIT

7 260 ₽
18

29-822553 BEARING, Needle, Piston End

BEARING, Needle, Piston End

50 ₽
-

27-815791A92 GASKET SET, Engine

GASKET SET, Engine

20 840 ₽
