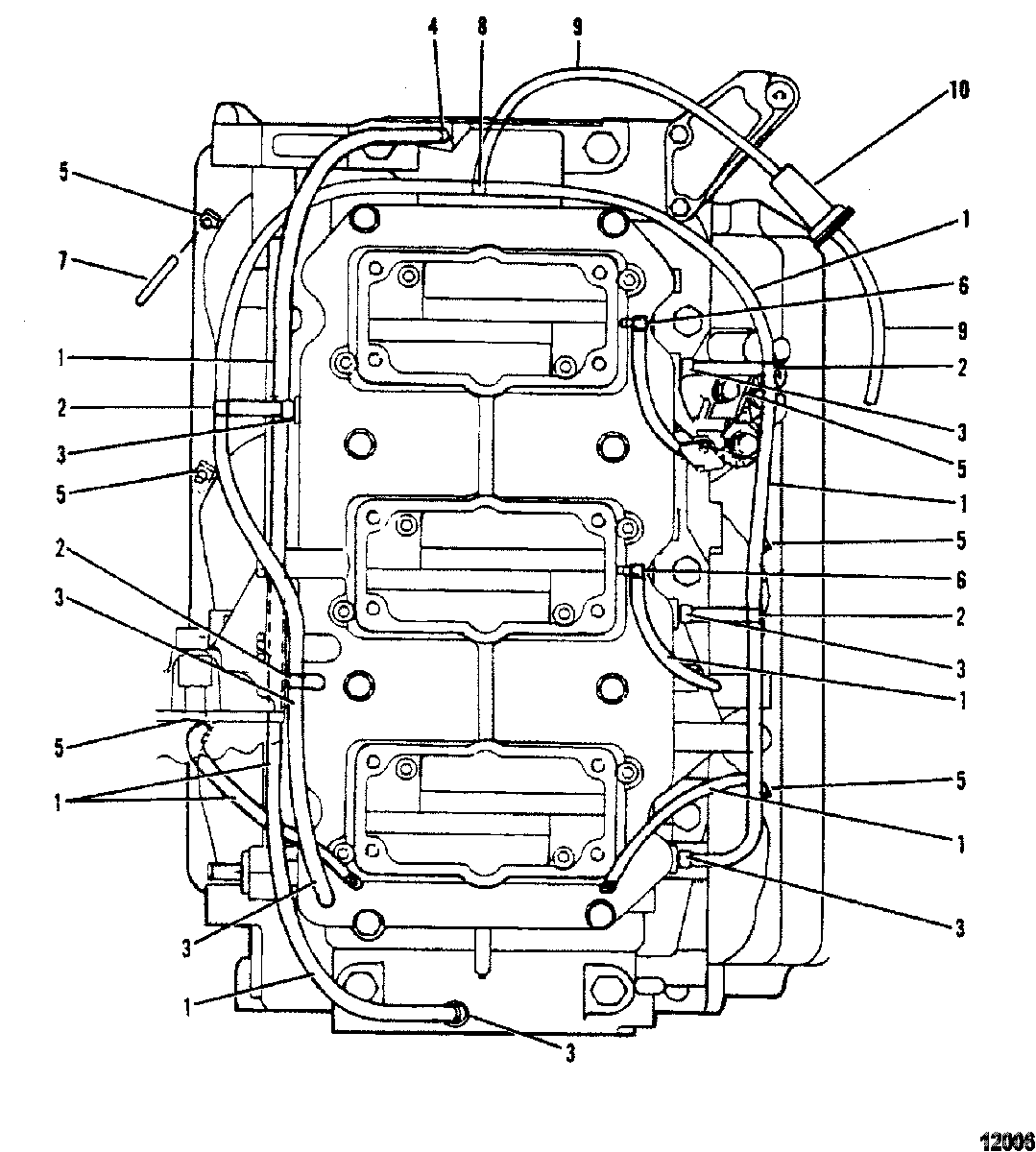

Bleed System для Mariner - V-175 (MAG/EFI) 0D082000 THRU 0G303045
-
№АртикулНазвание
-
132-892024122 TUBING, (20.00 Feet Bulk), BleedTUBING, (20.00 Feet Bulk), Bleed
-
222-59169003 FITTINGFITTING
-
321-426982 CHECK VALVE, Press In (.8125 Long)CHECK VALVE, Press In (.8125 Long)
-
421-426233 CHECK VALVE, Press In (.6875 Long)CHECK VALVE, Press In (.6875 Long)
-
522-822715 FITTING, Elbow, Press InFITTING, Elbow, Press In
-
622-56759 FITTING, BarbedFITTING, Barbed
-
722-15026 CAP, Elbow (Yellow)CAP, Elbow (Yellow)
-
822-18205 TEETEE
-
932-9912688 TUBING, (36.00 Inches Bulk)TUBING, (36.00 Inches Bulk)
-
1035-8M0042285 FILTERFILTER
