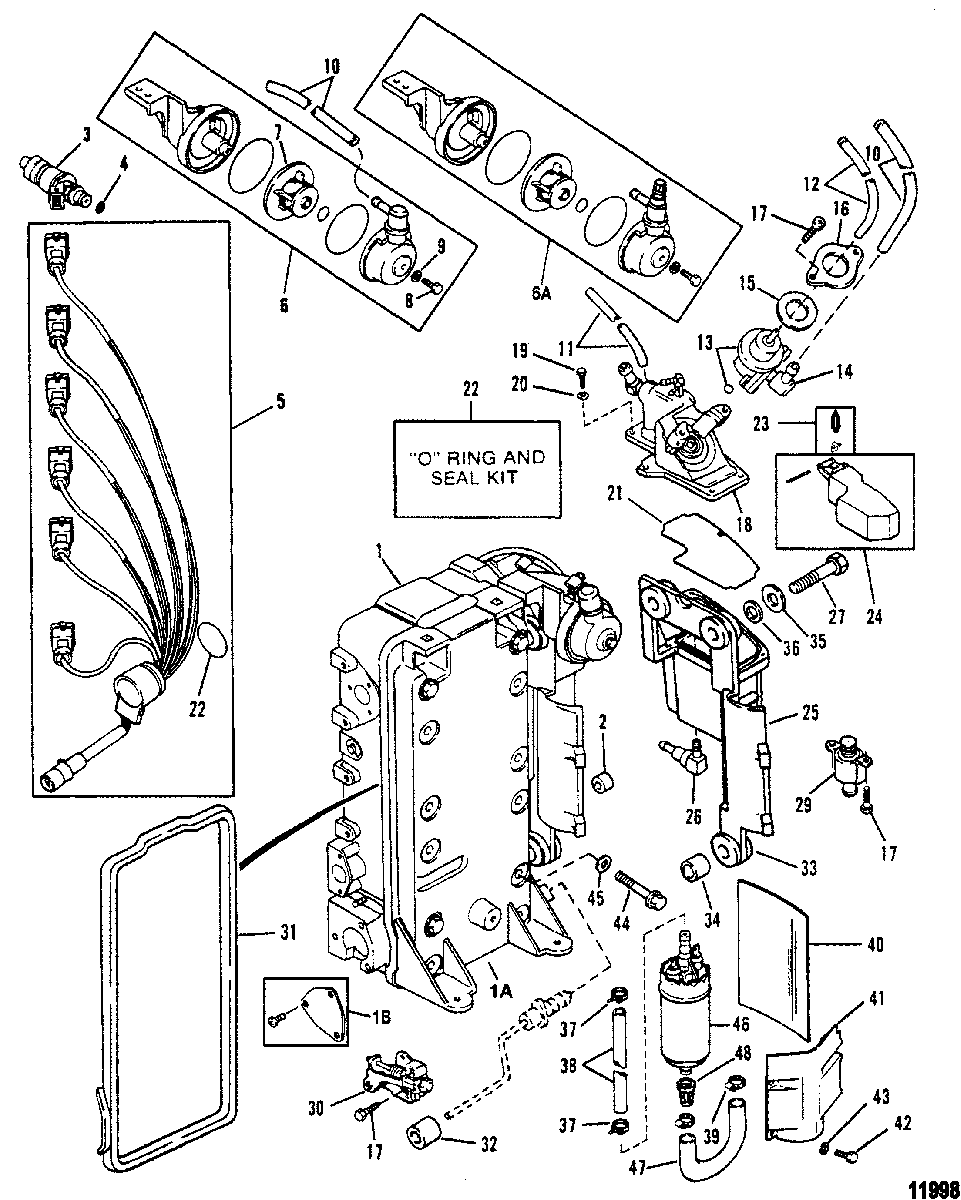

Fuel Management System(Breakdown) для Mariner - V-175 (MAG/EFI) 0D082000 THRU 0G303045
-
№АртикулНазвание
-
-14817A19 MANAGEMENT ASSEMBLY, FuelMANAGEMENT ASSEMBLY, Fuel
-
1827693 THROTTLE BODYTHROTTLE BODY
-
1A827692 COVERCOVER
-
1B827696 RETAINER KITRETAINER KIT
-
267748 ROLLER, CAMROLLER, CAM
-
318715T INJECTOR, FuelINJECTOR, Fuel
-
435-17422 FILTER, INJECTORFILTER, INJECTOR
-
584-15443 HARNESS KITHARNESS KIT
-
635-15442 FILTER KIT, Fuel
(Design I)FILTER KIT, Fuel
(Design I) -
6A35-154422 FILTER KIT, Fuel
(Design II)FILTER KIT, Fuel
(Design II) -
735-150282 FILTER, FuelFILTER, Fuel
-
810-400034 SCREW, (M5 x 14), Filter CoverSCREW, (M5 x 14), Filter Cover
-
913-400255 LOCKWASHER, (M5), Cover ScrewLOCKWASHER, (M5), Cover Screw
-
1032-1350385 TUBING, (30.00 Inches Bulk) (.50" O.D.)TUBING, (30.00 Inches Bulk) (.50" O.D.)
-
1132-9912688 TUBING, (36.00 Inches Bulk) (.125" I.D.)TUBING, (36.00 Inches Bulk) (.125" I.D.)
-
1232-892024122 TUBING, (20.00 Feet Bulk) (.0937" I.D.)TUBING, (20.00 Feet Bulk) (.0937" I.D.)
-
1315027 REGULATOR, PressureREGULATOR, Pressure
-
14814233 ELBOW KITELBOW KIT
-
1527-18791 GASKET, Pressure RegulatorGASKET, Pressure Regulator
-
16814012 PLATE, Pressure RegulatorPLATE, Pressure Regulator
-
1710-814076 SCREWSCREW
-
18814010 COVER KITCOVER KIT
-
1910-4001987 SCREW, (M4 x 16), Cover To SeperatorSCREW, (M4 x 16), Cover To Seperator
-
2013-26995 LOCKWASHER, (#8) Stainless Steel, Cover ScrewLOCKWASHER, (#8) Stainless Steel, Cover Screw
-
2126-18790 SEAL, Vapor SeperatorSEAL, Vapor Seperator
-
2215029 O-RING AND SEAL KITO-RING AND SEAL KIT
-
2315446 VALVE KIT, FloatVALVE KIT, Float
-
2415445 FLOAT KITFLOAT KIT
-
25814011 BODY KITBODY KIT
-
2621-424811 CHECK VALVECHECK VALVE
-
2710-4000332 SCREW, (M6 x 35), SeparatorSCREW, (M6 x 35), Separator
-
2921-18241 CHECK VALVECHECK VALVE
-
30814077 VALVE, Shut-OffVALVE, Shut-Off
-
3126-18792 SEAL, Injector ManifoldSEAL, Injector Manifold
-
3223-19275 SPACERSPACER
-
3423-814913 SPACERSPACER
-
3512-35280 WASHER, (.255 x .620 x .030) Stainless Steel, LargeWASHER, (.255 x .620 x .030) Stainless Steel, Large
-
3612-69057 WASHER, (.281 x .734 x .063), SmallWASHER, (.281 x .734 x .063), Small
-
3754-13791 CLAMP, (15.7), HoseCLAMP, (15.7), Hose
-
3832-1350385 TUBING, (30.00 Inches Bulk) (Cut to 1.75 Inch Length)TUBING, (30.00 Inches Bulk) (Cut to 1.75 Inch Length)
-
3954-F698772 CLAMP, Worm GearCLAMP, Worm Gear
-
4014639 BLANKET, Fuel PumpBLANKET, Fuel Pump
-
4114640T COVER, Fuel PumpCOVER, Fuel Pump
-
4210-32228 SCREW, (#10-32 x .625)SCREW, (#10-32 x .625)
-
4313-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
4410-845674 SCREW, (.250-20 x 4)SCREW, (.250-20 x 4)
-
4512-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
4614307T01 PUMP ASSEMBLY, FuelPUMP ASSEMBLY, Fuel
-
4732-146332 HOSEHOSE
-
4835-885188 FILTER, FuelFILTER, Fuel
