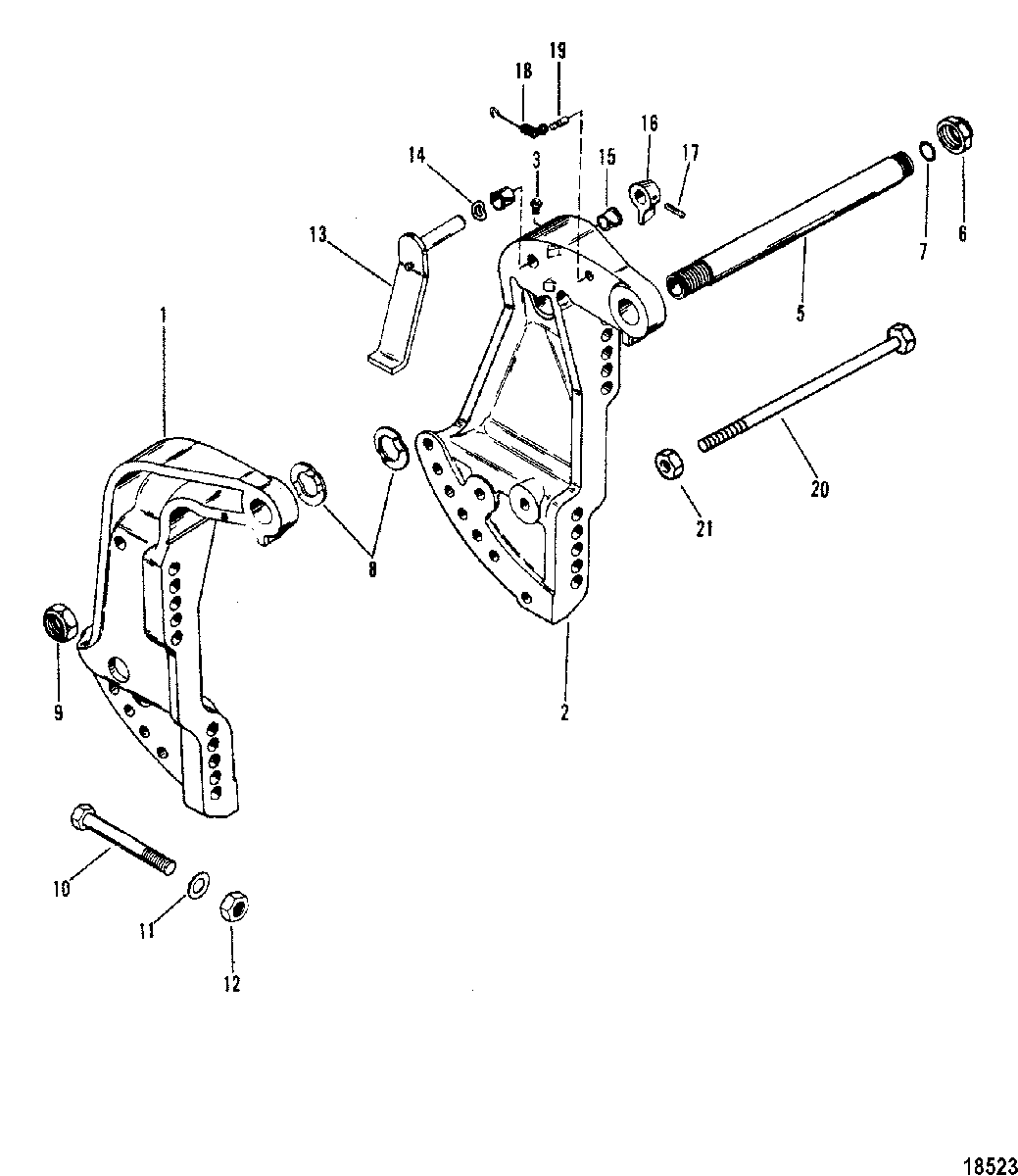

Transom Brackets для Mariner - V-150 0C100861 THRU 0C239552

№

Артикул

Название
1

3401-8718F7 TRANSOM BRACKET (STARBOARD) (BLACK)

TRANSOM BRACKET (STARBOARD) (BLACK)
1

3401-8718F8 TRANSOM BRACKET (STARBOARD) (GRAY)

TRANSOM BRACKET (STARBOARD) (GRAY)
2

3400-8716A8 TRANSOM BRACKET (PORT) (BLACK)

TRANSOM BRACKET (PORT) (BLACK)
2

3400-8716A9 TRAMSOM BRACKET (PORT)(GRAY)

TRAMSOM BRACKET (PORT)(GRAY)
3

22-98727 FITTING, Grease, PORT TRANSOM BRACKET

FITTING, Grease, PORT TRANSOM BRACKET
5

826125A1 TILT TUBE

TILT TUBE
6

11-82671327 NUT, TILT TUBE (1"-14) (BLACK)

NUT, TILT TUBE (1"-14) (BLACK)
6

11-82671327 NUT, TILT TUBE (1"-14) (GRAY)

NUT, TILT TUBE (1"-14) (GRAY)
7

25-45711 O-RING, TILT TUBE

O-RING, TILT TUBE
8

13-88750 WAVE WASHER, TILT TUBE

WAVE WASHER, TILT TUBE
9

11-858869 NUT, (.875-14), TILT TUBE

NUT, (.875-14), TILT TUBE
10

10-677551 SCREW, (.500-20 x 4.500), TRANSOM BRACKET TO TRANSOM

SCREW, (.500-20 x 4.500), TRANSOM BRACKET TO TRANSOM
11

12-28421 WASHER, TRANSOM BRACKET BOLT

WASHER, TRANSOM BRACKET BOLT
11

12-24501 WASHER, TRANSOM BRACKET BOLT
(UPPER-SEA RAY)

WASHER, TRANSOM BRACKET BOLT
(UPPER-SEA RAY)
12

11-91962 NUT, TRANSOM BRACKET BOLT

NUT, TRANSOM BRACKET BOLT
13

8M0115104 LEVER ASSEMBLY, TILT LOCK

LEVER ASSEMBLY, TILT LOCK
14

13-99611 WAVE WASHER, TILT LEVER

WAVE WASHER, TILT LEVER
15

23-65830 NYLINER, TILT LEVER

NYLINER, TILT LEVER
16

99633 KNOB, TILT LOCK LEVER (BLACK)

KNOB, TILT LOCK LEVER (BLACK)
16

99633 KNOB, TILT LOCK LEVER (GRAY)

KNOB, TILT LOCK LEVER (GRAY)
17

17-99615 PIN, Groove

PIN, Groove
18

24-99622 SPRING

SPRING
19

17-99604 PIN, Groove

PIN, Groove
20

10-96930A1 BOLT ASSEMBLY, TILT LOCK

BOLT ASSEMBLY, TILT LOCK
21

11-23161 NUT, (.375-24), BOLT

NUT, (.375-24), BOLT
