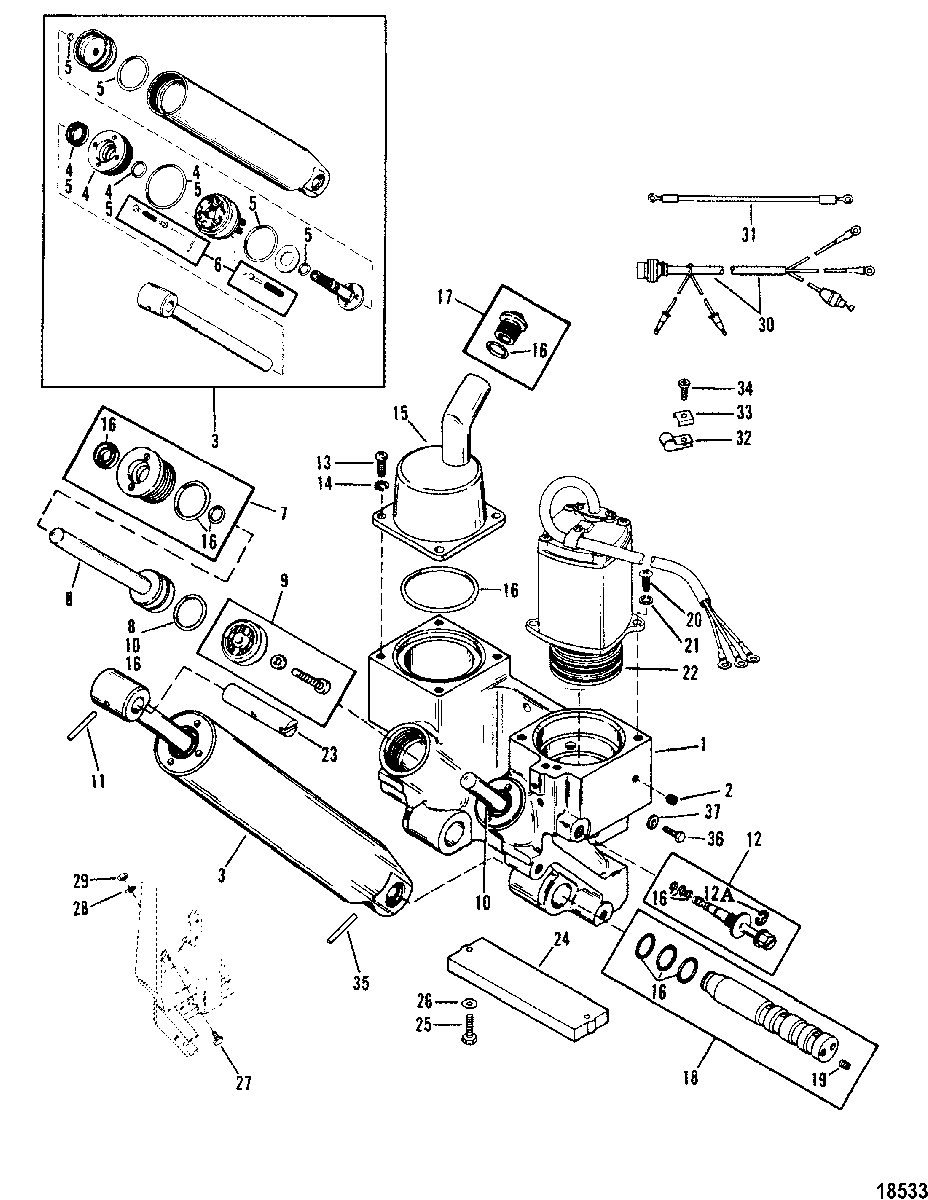

Power Trim Components для Mariner - V-150 0C100861 THRU 0C239552

  • №
    Артикул
    Название
  • 1
    99659A21 MANIFOLD ASSEMBLY (BLACK)
    MANIFOLD ASSEMBLY (BLACK)
  • 1
    99659A22 MANIFOLD ASSEMBLY (GRAY)
    MANIFOLD ASSEMBLY (GRAY)
  • 2
    22-56800 PIPE PLUG, MANIFOLD
    PIPE PLUG, MANIFOLD
  • 3
    41493A7 TRIM CYLINDER ASSEMBLY (BLACK)
    TRIM CYLINDER ASSEMBLY (BLACK)
  • 3
    41493A7 TRIM CYLINDER ASSEMBLY (GRAY)
    TRIM CYLINDER ASSEMBLY (GRAY)
  • 4
    41492A1 GUIDE ASSEMBLY
    GUIDE ASSEMBLY
  • 5
    25-41478A1 REPAIR KIT
    REPAIR KIT
  • 6
    41482A2 CHECK VALVE KIT
    CHECK VALVE KIT
  • 7
    1100-8M0021648 GUIDE ASSEMBLY, TRIM ROD
    GUIDE ASSEMBLY, TRIM ROD
  • 8
    878413A1 PISTON AND ROD ASSEMBLY, PORT
    PISTON AND ROD ASSEMBLY, PORT
  • 9
    35-12184A1 TRIM FILTER ASSEMBLY
    TRIM FILTER ASSEMBLY
  • 10
    878414T01 PISTON AND ROD ASSEMBLY, STARBOARD
    PISTON AND ROD ASSEMBLY, STARBOARD
  • 11
    17-821539 PIN, Groove, TRIM CYLINDER (UPPER)
    PIN, Groove, TRIM CYLINDER (UPPER)
  • 12
    893929A01 VALVE ASSEMBLY
    VALVE ASSEMBLY
  • 12A
    53-815949001 E RING
    E RING
  • 13
    10-4000327 SCREW, (M6 x 14), COVER
    SCREW, (M6 x 14), COVER
  • 14
    12-4002315 WASHER, COVER SCREW
    WASHER, COVER SCREW
  • 15
    99642 COVER, MANIFOLD
    COVER, MANIFOLD
  • 16
    25-48462A4 O-RING KIT
    O-RING KIT
  • 17
    19-99609A1 PLUG ASSEMBLY
    PLUG ASSEMBLY
  • 18
    99641A02 SHAFT ASSEMBLY
    SHAFT ASSEMBLY
  • 19
    22-56800 PIPE PLUG, SHAFT
    PIPE PLUG, SHAFT
  • 20
    10-4008820 SCREW, (M6 x 20), PUMP AND MOTOR
    SCREW, (M6 x 20), PUMP AND MOTOR
  • 21
    13-400256 LOCKWASHER, (M6)
    LOCKWASHER, (M6)
  • 22
    826729A10 PUMP AND MOTOR
    PUMP AND MOTOR
  • 23
    99625002 SHAFT, UPPER
    SHAFT, UPPER
  • 24
    97-818298Q1 ANODE ASSEMBLY
    ANODE ASSEMBLY
  • 25
    10-4000332 SCREW, (M6 x 35), ANODE
    SCREW, (M6 x 35), ANODE
  • 26
    12-29245 WASHER, (.281 x .500 x .060), ANODE SCREW
    WASHER, (.281 x .500 x .060), ANODE SCREW
  • 27
    8M0045383 STRIKER PLATE, TRIM SHAFT
    STRIKER PLATE, TRIM SHAFT
  • 28
    13-58643 LOCKWASHER, (.375)
    LOCKWASHER, (.375)
  • 29
    11-46335 NUT, (.375-24)
    NUT, (.375-24)
  • 30
    84-17201A5 CONTROL HARNESS, POWER TRIM
    CONTROL HARNESS, POWER TRIM
  • 31
    84-88808A22 CABLE (6-3/8" - RED)
    CABLE (6-3/8" - RED)
  • 31
    84-87379A14 WIRE ASSEMBLY, (2.750 Inches) (RED)
    WIRE ASSEMBLY, (2.750 Inches) (RED)
  • 32
    54-22875 CLIP, PUMP WIRE
    CLIP, PUMP WIRE
  • 33
    8M0084613 C WASHER, CLIP SCREW
    C WASHER, CLIP SCREW
  • 34
    10-69079 SCREW, (#10-16 x .440), CLIP TO TRANSOM BRACKET
    SCREW, (#10-16 x .440), CLIP TO TRANSOM BRACKET
  • 35
    17-878267 PIN, Groove, TRIM CYLINDER (LOWER)
    PIN, Groove, TRIM CYLINDER (LOWER)
  • 36
    10-4000377 SCREW, (M10 x 30), MANIFOLD
    SCREW, (M10 x 30), MANIFOLD
  • 37
    13-400258 LOCKWASHER, SS, MANIFOLD SCREW
    LOCKWASHER, SS, MANIFOLD SCREW
