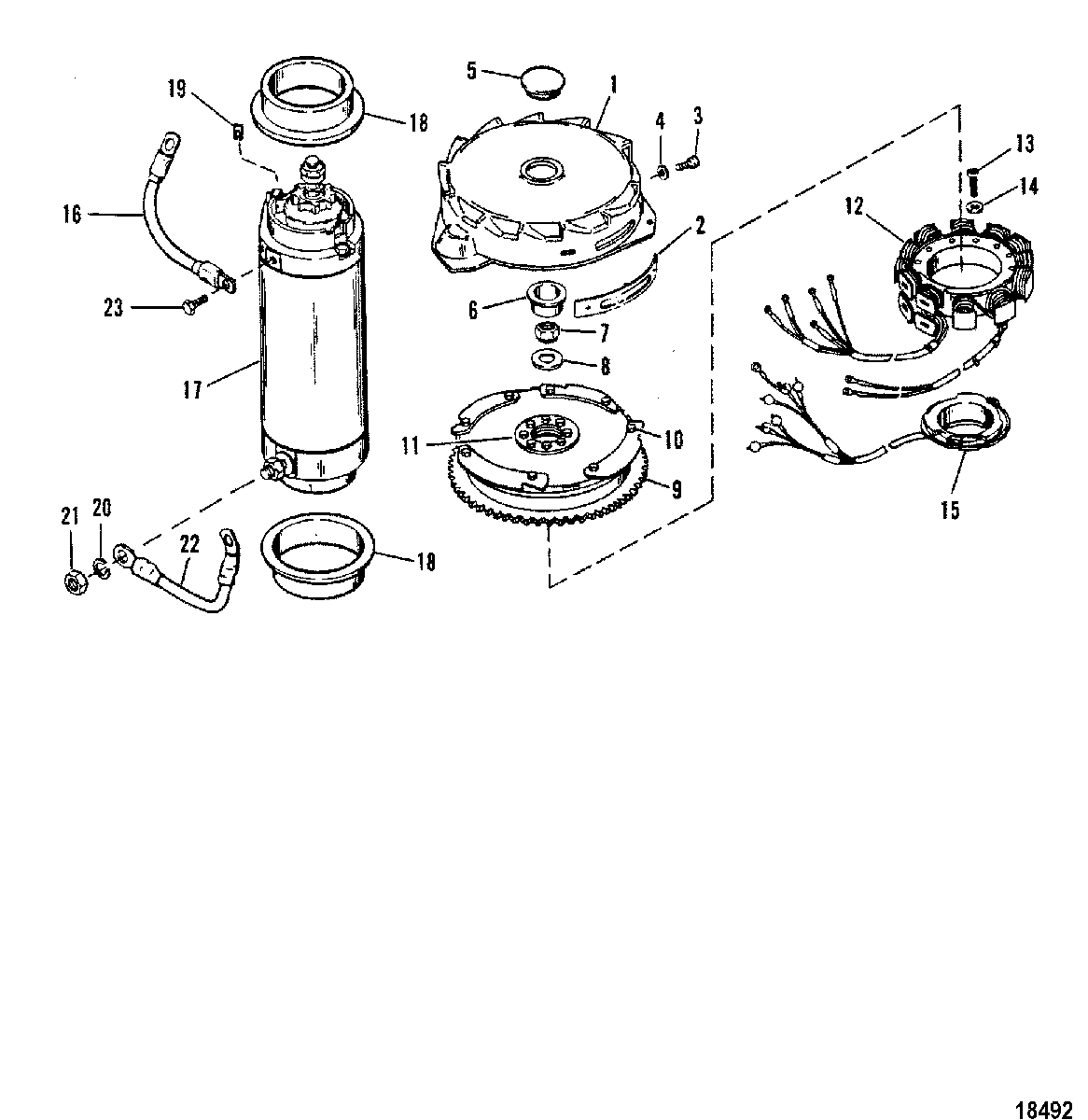

Flywheel and Starter Motor для Mariner - V-150 0C100861 THRU 0C239552
-
№АртикулНазвание
-
118896A1 COVER KIT, FLYWHEELCOVER KIT, FLYWHEEL
-
279022 MARKER, TIMING MARKERMARKER, TIMING MARKER
-
310-37572 SCREW, (.190-32 x .380), TIMING MARKERSCREW, (.190-32 x .380), TIMING MARKER
-
412-72761 WASHER, TIMING MARKER SCREWWASHER, TIMING MARKER SCREW
-
519-89219001 PLUG, FLYWHEEL COVERPLUG, FLYWHEEL COVER
-
619-45907 PLUG, (Yellow), FLYWHEELPLUG, (Yellow), FLYWHEEL
-
711-52901 NUT, (.625-18), FLYWHEELNUT, (.625-18), FLYWHEEL
-
812-33001 WASHER, FLYWHEELWASHER, FLYWHEEL
-
9271-859238T16 FLYWHEELFLYWHEEL
-
1010-32417 SCREW, (.250-28 x .625), FLYWHEEL PLATESCREW, (.250-28 x .625), FLYWHEEL PLATE
-
1110-68997 SCREW, (.3125-24 X .75), FLYWHEEL HUBSCREW, (.3125-24 X .75), FLYWHEEL HUB
-
12398-9610A5 STATORSTATOR
-
1310-90045 SCREW, (#10-32 x 1.375), STATORSCREW, (#10-32 x 1.375), STATOR
-
1413-26996 LOCKWASHER, (#10), STATOR SCREWLOCKWASHER, (#10), STATOR SCREW
-
1596455A9 TRIGGER PLATE ASSEMBLYTRIGGER PLATE ASSEMBLY
-
1684-93388A1 CABLE ASSEMBLY, Black
PLATE TO STARTER MOTORCABLE ASSEMBLY, Black
PLATE TO STARTER MOTOR -
1750-893893 STARTER MOTORSTARTER MOTOR
-
1823-8M0034918 COLLAR, STARTER MOTORCOLLAR, STARTER MOTOR
-
198M0043376 STOP, RUBBER - STARTER MOTORSTOP, RUBBER - STARTER MOTOR
-
2013-26992 LOCKWASHER, (.250), STARTER MOTOR TERMINALLOCKWASHER, (.250), STARTER MOTOR TERMINAL
-
2111-20890 NUT, (.250-20), STARTER MOTOR TERMINALNUT, (.250-20), STARTER MOTOR TERMINAL
-
2284-93388A14 WIRE, (Black) (BLACK)
SOLENOID TO STARTER MOTORWIRE, (Black) (BLACK)
SOLENOID TO STARTER MOTOR -
2310-69035 SCREW AND LOCKWASHER, (.250-20 x .625) SS, CABLE TO STARTER MOTORSCREW AND LOCKWASHER, (.250-20 x .625) SS, CABLE TO STARTER MOTOR
